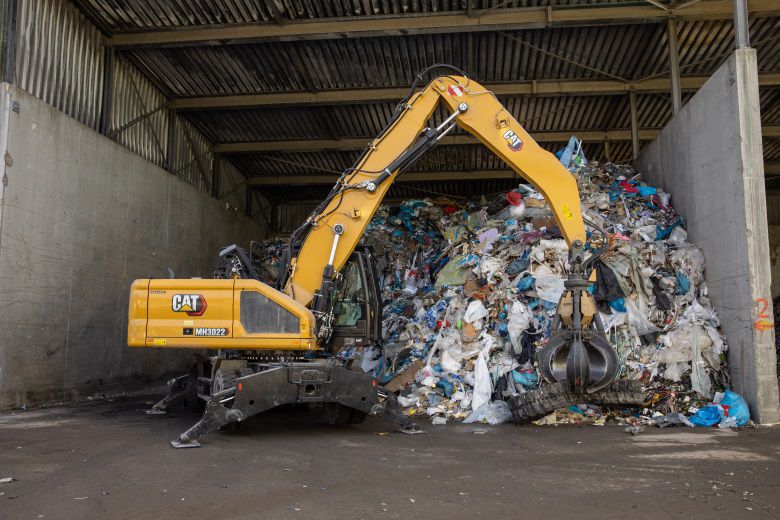

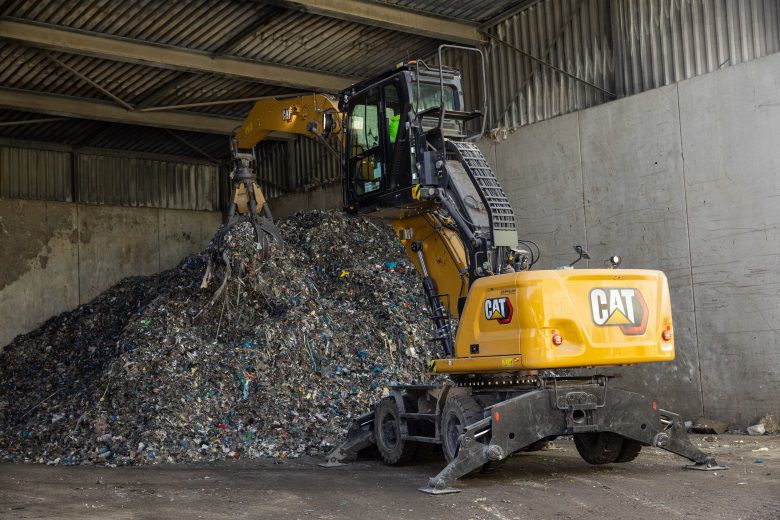

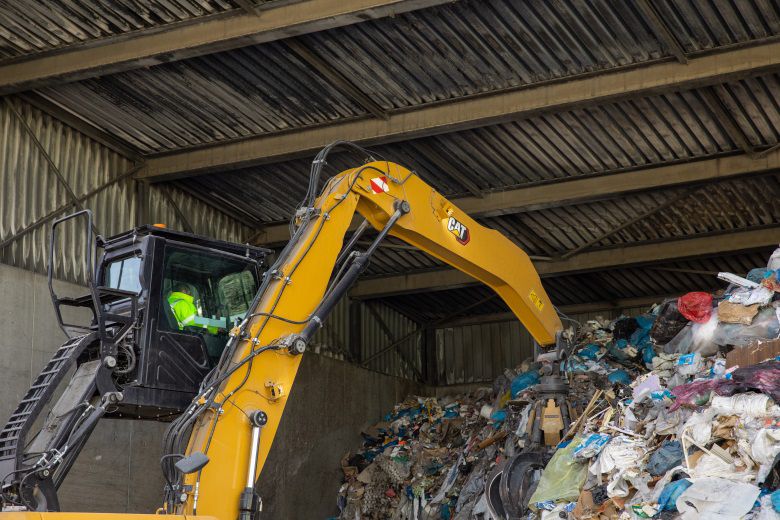

MH3022 Wheel Material Handlers

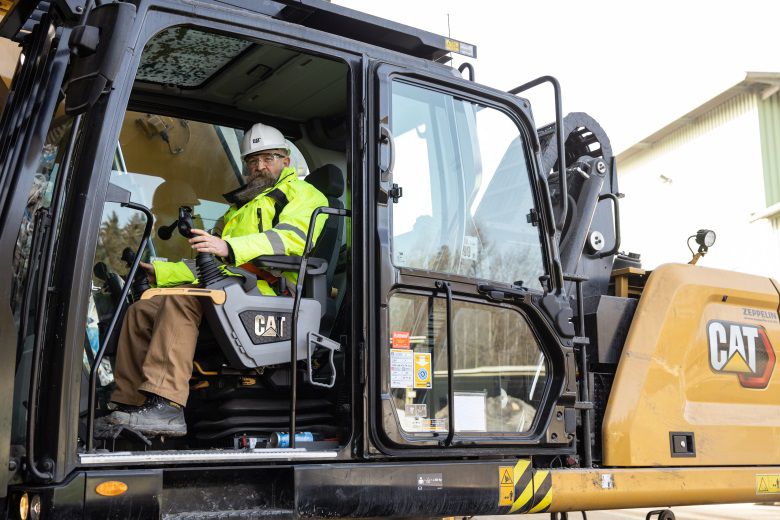

We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The Cat® MH3022 is a purpose-built material handler that features simple-to-use technologies, a redesigned cab for enhanced comfort, and more options to match your work. Combine these features with up to 10% lower operating costs, and you have a safe, quality and reliable product that will provide you with the superior performance you need for your toughest indoor material handling applications. Engine Model Cat C4.4 Net Power – ISO 9249 108 kW Net Power – ISO 9249 (DIN) 147 hp (metric) Product specifications for MH3022 Wheel Material Handlers Engine expand / collapse icon Engine Model Cat C4.4 Net Power – ISO 9249 108 kW Net Power – ISO 9249 (DIN) 147 hp (metric) Engine Power – Maximum – ISO 14396 110 kW Engine Power – ISO 14396 (DIN) 150 hp (metric) Bore 105 mm Stroke 127 mm Displacement 4.4 l Biodiesel Capability Up to B20¹ Emissions Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. Transmission expand / collapse icon Maximum Gradeability 65 Maximum Travel Speed (with steering wheel) 20 km/h Maximum Travel Speed (with joysticks) 15 km/h Drawbar Pull 127 kN·m Maximum Travel Speed – 2nd Gear 14.9 km/h Maximum Travel Speed 20 km/h Hydraulic System expand / collapse icon Maximum Flow – Implement/Travel Circuit 306 l/min Maximum Pressure – Implements 37000 kPa Maximum Pressure – Travel 35000 kPa Maximum Pressure – Swing 36500 kPa Machine Weights expand / collapse icon Maximum Operating Weight 24500 kg Minimum Operating Weight 21200 kg Service Refill Capacities expand / collapse icon Fuel Tank Capacity 350 l Diesel Exhaust Fluid Tank 30 l Cooling System 36 l Engine Oil 13 l Hydraulic Tank 155 l Hydraulic System – Including Tank 345 l Rear Axle – Housing (Differential) 14 l Front Steering Axle – Differential 10.5 l Final Drive – Each 2.5 l Powershift Transmission 2.5 l Swing Mechanism expand / collapse icon Swing Speed 8.2 r/min Maximum Swing Torque 54 kN·m Dimensions expand / collapse icon Boom MH Boom 5.35 (17’7″) Stick Straight 4.3 m (14’1″) Shipping Height (with OPG, without stick) 11 ft Shipping Length 8300 mm Shipping Length (with push blade) 8600 mm Machine Length 4950 mm Machine Length (with push blade) 5390 mm Tail Swing Radius 2600 mm Counterweight Clearance 1300 mm Cab Height- Lowered 3350 mm Cab Height-Lowered with OPG 3350 mm Cab Height-Raised 5750 mm Cab Height-Raised with OPG 5750 mm Wheel Base 2600 mm Shipping Width 2540 mm Ground Clearance 310 mm Undercarriage Length 4900 mm Undercarriage Length (with push blade) 5365 mm Upper Frame Width (including handrails) 2540 mm Working Ranges expand / collapse icon Maximum Reach 9280 mm Boom MH Boom 5.35 (17’7″) Stick Straight 4.3 m (14’1″) Maximum Height 10760 mm Minimum Dump Height 3310 mm Maximum Reach at Ground Line 8680 mm Maximum Depth 1460 mm Boom Pin Height 7120 mm Transmissions expand / collapse icon Maximum Travel Speed (with steering wheel) 20 km/h Maximum Travel Speed (with joysticks) 15 km/h Latest Features Cab Monitor Improvements Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu. Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options. A new notification center keeps important information visible to the operator, and displays messages without shrinking the camera view. Color coded notifications set critical messages apart from the rest. Use the in-monitor QR code to learn about machine technology and features through a full suite of “how-to” videos. Enhance visibility to make service work easier and safer with optional inspection lighting. Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime. Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07D High Performance Use up to 10% less fuel versus the previous model, with no impact on your productivity. The C4.4 engine can run on biodiesel up to B20 and meets US EPA Tier 4 Final and EU Stage V Final emissions standards with an aftertreatment system that requires no scheduled downtime or maintenance. Match the machine to the job with three power modes – Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, providing maximum power when needed and reducing power when it isn’t to save fuel. The advanced electro-hydraulic system provides the optimum balance of power and efficiency while giving you the control you need. Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work. Valve priority puts hydraulic pressure and flow where you need it. The variable gauge undercarriage retracts for easy transportation and expands for increased stability and lifting capacity. Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections. Take the Guesswork Out of Managing Your Equipment Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material–with a bucket and thumb combination or grapple and clamshell attachments–and get a real-time weight estimate without swinging.​ Combine Payload with VisionLink® and remotely manage your production targets.​ VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer. * Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.​ Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.​ Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.​ * Data field availability can vary by equipment manufacturer.​ Work In Comfort Choose between Deluxe and Premium cab options. The Deluxe seat is heated and air adjustable, while the Premium seat is heated and ventilated and adjusts automatically. The cab has a wide seat that adjusts for operators of all sizes. Control the machine comfortably with easy-to-reach controls. Standard automatic climate control keeps you at the right temperature all shift long. Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided. Connect to personal devices via the standard radio’s USB ports and Bluetooth® technology. Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format. Productivity applications are displayed in grid-view to read on the go, and touchscreen navigation is programmed to make sure job performance continues without any hold-ups. Reliable, Durable, and Versatile Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to ensure quality and reliability. Work up to 3000 m (9,840 ft) above sea level without derating. Don’t let the temperature stop you from working. The material handler has a standard high-ambient temperature capability of 52°C (125°F) and a cold-start capability of -18°C (0°F). Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components. Match your machine to your application. Multiple configurations allow you to customize your machine to your needs. Equip your MH3022 with an optional 15kW generator for magnet operation. Generator controls are fully integrated into the cab monitor. Expand your work capabilities with attachments for a variety of applications. Maintenance Track your machine’s filter life and maintenance intervals via the in-cab monitor. Using Cat genuine oil and filters and doing your typical S·O·SSM monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work. Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours – a 100% increase over the previous filter. The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs. High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work. S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis. Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed so you don’t experience unnecessary downtime. Safety Cab Avoidance helps you avoid contact between your worktool and the cab. Standard 2D E-Fence prevents your machine from moving outside operator-defined parameters. Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine. Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature. Enjoy great all-around visibility with the help of smaller cab pillars, larger windows, and a flat engine hood design. Rearview and side-view cameras are standard. Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment. Thick impact-resistant windshields fulfill P5A standards. Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to prevent slipping. The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position. Optional Operator Protective Guards (OPG) protect from falling and flying debris. When activated, the ground-level shutoff switch stops all fuel in the engine and shuts down the machine. In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible. Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure. Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility. Sustainability The Cat® C4.4 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards. The MH3022 emits up to 22% less CO2 than the previous MH3022-06.* Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels*** up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working. Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic – not only helping keep personnel safe but also helps avoid repairs, downtime, and costly job site fines. Extended maintenance intervals reduce downtime and decrease the amount of fluid and filters that are replaced over the life of the machine. VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range. Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money. *All comparisons to MH3022-06. Productivity, fuel and CO2 emissions vary by application. CO2 emissions calculations based on a reference work cycle using 2.2 U.S. gallons per hour of #2 U.S. diesel fuel based. Applies IPCC2006 methodology using U.S. EPA Emissions Hub emission factors. Includes DEF (diesel exhaust fluid) related CO2. Fuel measurements are at 15°C. Estimated average fuel consumption improvements are based on tests or Product Link® data where available. Productivity improvements are based on test data. **Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ***Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. MH3022 Standard Equipment Expand all Cab expand / collapse icon Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant) Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant) Keyless push-to-start engine control LED dome lights Deluxe cab: Heated seat with air-adjustable suspension Premium cab: Heated and cooled seat with automatic adjustable suspension Cat Technology expand / collapse icon Cat VisionLink® Cat Payload Remote Flash Remote Troubleshoot Electrical System expand / collapse icon Roading and indicator lights at front and rear Maintenance-free batteries LED chassis light, left-hand/right-hand boom and stick lights, cab lights Centralized electrical disconnect switch Programmable time delay LED working lights Service and Maintenance expand / collapse icon Automatic lubrication system for implement and swing system Sampling ports for Scheduled Oil Sampling (S·O·S℠) Integrated vehicle health management system Engine expand / collapse icon C4.4 engine One-touch low idle with automatic engine speed control Automatic engine shutdown 52°C (125°F) high-ambient capability Cold start capability-18°C (-0°F) Electric fuel priming pump Double element air filter with integrated precleaner On-demand electric cooling fans with auto-reverse function Hydraulic System expand / collapse icon Electric main control valve Automatic hydraulic oil warm up Automatic swing brake Separate dedicated swing pump Boom and stick lowering check valves Medium pressure auxiliary circuit Element type main hydraulic filter SmartBoom™ Smart Stick Heavy lift mode Safety and Security expand / collapse icon Cab Avoidance Rear- and right-side-view cameras Secondary engine shutoff switch Lockable disconnect switch Undercarriage and Structures expand / collapse icon 2550 mm (8’4″) wide undercarriage 3700 kg (8,150 lb) counterweight All wheel drive Automatic brake/axle lock Creeper speed Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force Lockable, oscillating front axle with remote greasing point MH3022 Optional Equipment Expand all Booms and Sticks expand / collapse icon 6.4 m (21′) Straight MH boom 5.35 m (17’7″) Straight MH boom 5.26 m (17’3″) Variable Angle boom 5.65 m (18’6″) One-piece boom 4.5 m (14’9″) Drop Nose MH stick 4.3 m (14’1″) Straight MH stick 4.0 m (13’1″) Drop Nose MH stick 5.0 m (16’5″) Drop Nose MH stick 2.9 m (9’6″) Straight stick 2.5 m (8’2″) Straight stick No Stick Configuration Bucket linkage, B-type with lifting eye Cab expand / collapse icon Fixed one-piece laminated windshield (P5A glass) Fixed one-piece laminated windshield (P8B glass) Operator Protective Guards (OPG) Electrical System expand / collapse icon Electrical refueling pump Safety and Security expand / collapse icon 360° visibility Travel alarm Inspection lighting Undercarriage and Structures expand / collapse icon Push Blade 10.00-20 dual solid rubber tires 10.00-20 16 PR dual tires
