Product specifications for MH3026 Wheel Material Handlers
Engine
expand / collapse icon
Engine Model
Cat C7.1
Net Power – ISO 9249
128 kW
Net Power – ISO 9249 (DIN)
174 hp (metric)
Engine Power – Maximum – ISO 14396
129 kW
Engine Power – ISO 14396 (DIN)
176 hp (metric)
Bore
105 mm
Stroke
135 mm
Displacement
7 l
Biodiesel Capability
Up to B20¹
Emissions
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Transmission
expand / collapse icon
Maximum Gradeability (23 500 kg/51,810 lb)
52
Maximum Travel Speed (with steering wheel)
20 km/h
Maximum Travel Speed (with joysticks)
15 km/h
Drawbar Pull
127 kN
Hydraulic System
expand / collapse icon
Maximum Pressure – Implements
37000 kPa
Maximum Pressure – Travel
35000 kPa
Maximum Pressure – Swing
39000 kPa
Machine Weights
expand / collapse icon
Maximum Operating Weight
29200 kg
Minimum Operating Weight
26400 kg
Service Refill Capacities
expand / collapse icon
Fuel Tank Capacity
416 l
Engine Oil
20 l
Hydraulic Tank
209 l
Hydraulic System – Including Tank
345 l
Rear Axle – Housing (Differential)
14 l
Front Steering Axle – Differential
11 l
Powershift Transmission
2.5 l
Service Refill Capabilities
expand / collapse icon
Diesel Exhaust Fluid Tank
30 l
Cooling System
40 l
Final Drive – Each
2.5 l
Swing Mechanism
expand / collapse icon
Maximum Swing Torque
70 kN·m
Dimensions
expand / collapse icon
Boom
MH Boom 7.5 m (24’7″)
Stick
Drop Nose 6.0 m (19’8″)
Shipping Height (with OPG, without stick)
3375 mm
Shipping Length
10700 mm
Shipping Length (with push blade)
11190 mm
Machine Length
5450 mm
Machine Length (with push blade)
6115 mm
Tail Swing Radius
2800 mm
Counterweight Clearance
1305 mm
Cab Height- Lowered
3350 mm
Cab Height-Lowered with OPG
3375 mm
Cab Height-Raised
5750 mm
Cab Height-Raised with OPG
18.9 ft
Wheel Base
2750 mm
Shipping Width
2990 mm
Ground Clearance
320 mm
Undercarriage Length
5300 mm
Undercarriage Length (with push blade)
5970 mm
Upper Frame Width (including handrails)
2740 mm
Working Ranges
expand / collapse icon
Maximum Reach
13000 mm
Boom
MH Boom 7.5 m (24’7″)
Stick
Drop Nose 6.0 m (19’8″)
Maximum Height
14270 mm
Minimum Dump Height
3810 mm
Maximum Reach at Ground Line
12850 mm
Maximum Depth
2970 mm
Boom Pin Height
9300 mm
Latest Features
Cab Monitor Improvements
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
A notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
Color coded notifications set critical messages apart from the rest.
Use the in-monitor QR code to learn about machine technology and features through a full suite of “how-to” videos.
Enhance visibility to make service work easier and safer with optional inspection lighting.
Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
Build Number: 07D

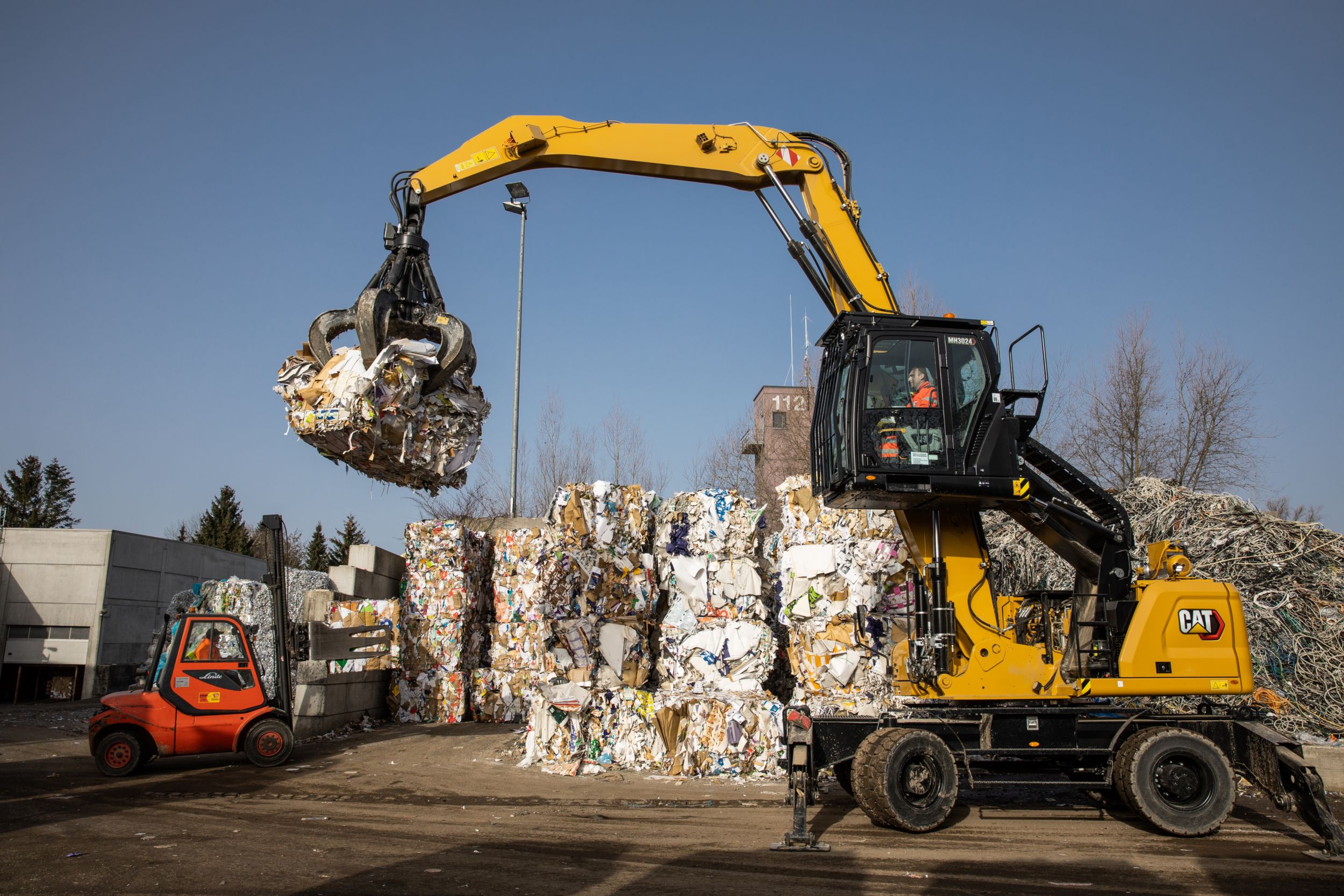

High Performance
Use up to 10% less fuel than the previous model without impacting your productivity.
The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014 emission standards with an aftertreatment system that requires no scheduled maintenance or downtime.
The advanced electro-hydraulic system provides the optimum balance of power and efficiency while giving you the control you need.
Valve priority puts hydraulic pressure and flow where you need it.
Boost lifting capabilities improve the controllability of heavy loads with heavy lift mode.
Program and store your preferred power mode and joystick settings using your operator ID. The machine will automatically remember your selections.
Take the Guesswork Out of Managing Your Equipment
Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material–with a bucket and thumb combination or grapple and clamshell attachments–and get a real-time weight estimate without swinging.
Combine Payload with VisionLink® and remotely manage your production targets.
VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
VisionLink® Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device – on or off the jobsite.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
* Data field availability can vary by equipment manufacturer.

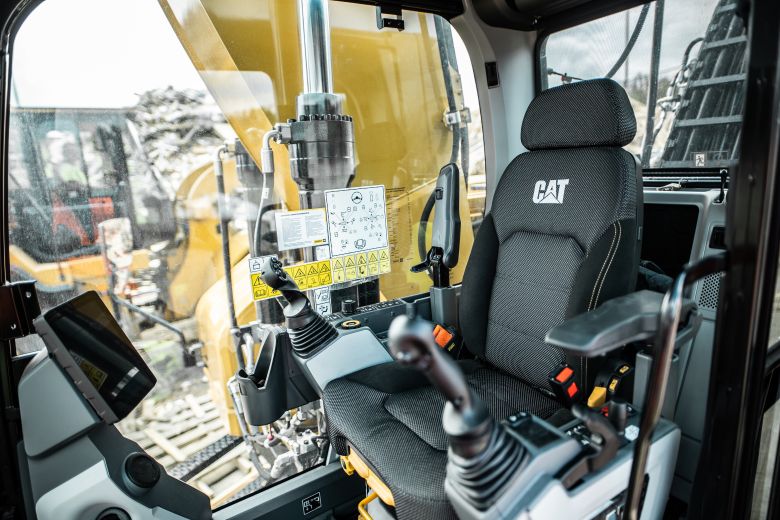

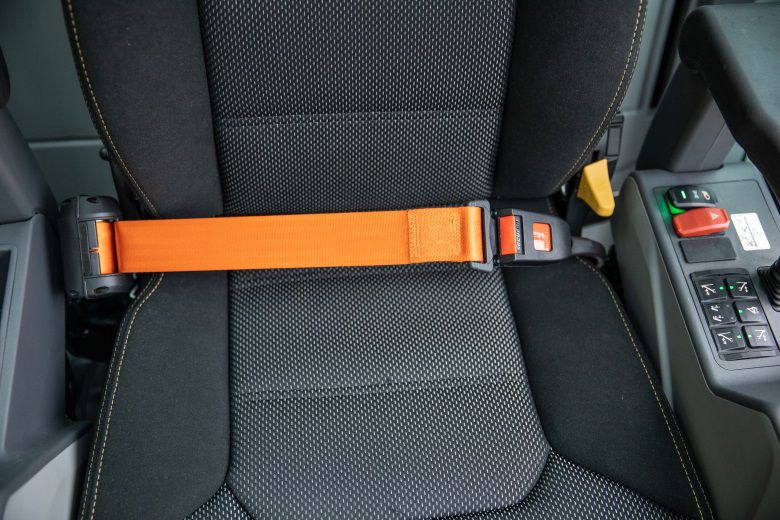

Work in Comfort
Choose between Deluxe and Premium cab options.
The Deluxe seat is heated and air adjustable, while the Premium seat is heated and ventilated and adjusts automatically.
The cab has a wide seat that adjusts for operators of all sizes.
Control the machine comfortably with easy-to-reach controls.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Connect to personal devices via the standard radio’s USB ports and Bluetooth® technology.
Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without taking your hands off the joysticks.
Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
Productivity applications are displayed in grid view to read on the go, and touchscreen navigation is programmed to ensure job performance continues without any hold-ups.

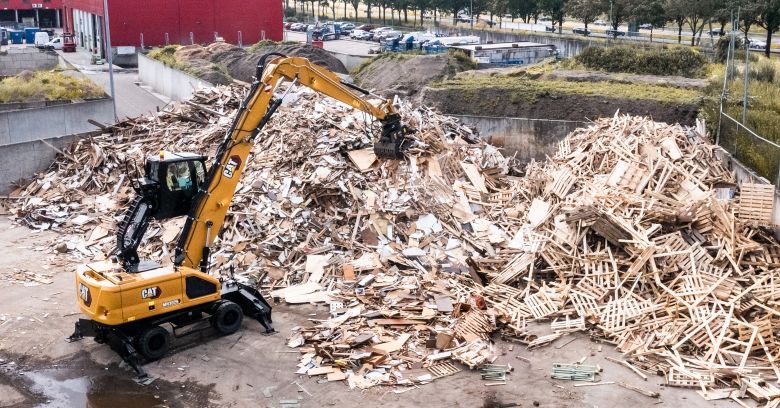

Reliable, Durable, and Versatile
Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to ensure quality and reliability.
Work up to 3000 m (9,840 ft) above sea level without derating.
Don’t let the temperature stop you from working. The material handler has a standard high-ambient temperature capability of 52°C (125°F) and cold start capability of -18°C (0°F).
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Match your machine to your application. Multiple configurations allow you to customize your machine to your needs.
Equip your MH3026 with an optional 15 kW generator for magnet operation. Generator controls are fully integrated into the cab monitor.
Expand your work capabilities with attachments for a variety of applications.
Make operating easier with the touch of a joystick button. Additional auxiliary relays allow you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.

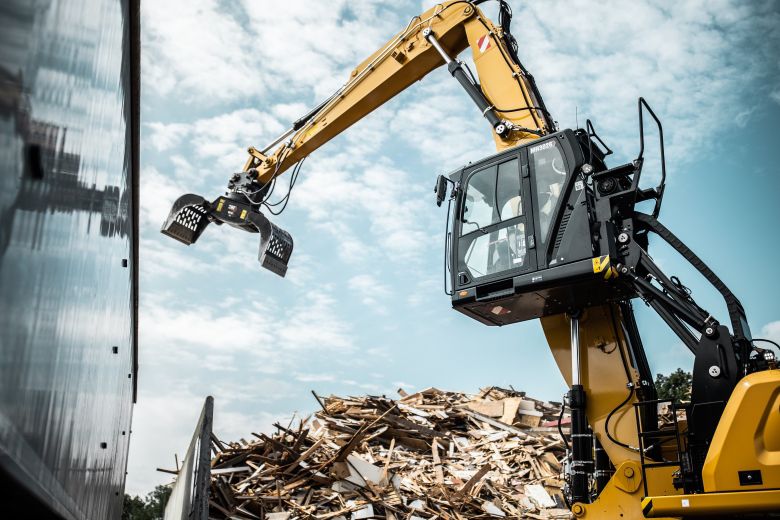

Safety
Cab Avoidance helps you avoid contact between your worktool and the cab.
Standard 2D E-Fence prevents your machine from moving outside operator-defined parameters.
Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
Enjoy great all-around visibility with the help of smaller cab pillars, larger windows, and a flat engine hood design. Rearview and side-view cameras are standard.
Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
Thick impact-resistant windshields fulfill P5A standards.
Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to prevent slipping.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Optional Operator Protective Guards (OPG) protect from falling and flying debris.
When activated, the ground-level shutoff switch stops all fuel in the engine and shuts down the machine.
In an emergency, safely lower the cab with the cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.
Maintenance
Track your machine’s filter life and maintenance intervals via the in-cab monitor.
Using Cat genuine oil and filters and doing your typical S·O·SSM monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.
Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours – a 100% increase over the previous filter.
The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed so you don’t experience unnecessary downtime.
Sustainability
The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic – not only helping keep personnel safe but also helps avoid repairs, downtime, and costly job site fines.
Extended maintenance intervals reduce downtime and decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
MH3026 Standard Equipment
Expand all
Note
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
expand / collapse icon
Advanced sound-suppressed TOPS cab (ISO 12117-2 compliant)
10″ touchscreen monitor
Keyless push-to-start engine control
LED dome lights
Cat Technology
expand / collapse icon
Cat VisionLink®
Cat Payload
Electrical System
expand / collapse icon
Roading and indicator lights at front and rear
Maintenance-free batteries
LED chassis light, left-hand/right-hand boom and stick lights, cab lights -1800 lumens
Centralized electrical disconnect switch
Programmable time delay LED working lights
Service and Maintenance
expand / collapse icon
Automatic lubrication system for implement and swing system
Sampling ports for Scheduled Oil Sampling (S·O·S℠)
Integrated vehicle health management system
Engine
expand / collapse icon
Cat C7.1 single turbo diesel engine
One-touch low idle with automatic engine speed control
Automatic engine shutdown
52°C (125°F) high-ambient capability
Cold start capability -18°C (-0°F)
Electric fuel priming pump
Double element air filter with integrated precleaner
On-demand electric cooling fans with auto-reverse function
Hydraulic System
expand / collapse icon
Electric main control valve
Automatic hydraulic oil warm up
Automatic swing brake
Separate dedicated swing pump
Boom and stick lowering check valves
Medium pressure auxiliary circuit
Element type main hydraulic filter
SmartBoom™
SmartStick
Heavy lift mode
Safety and Security
expand / collapse icon
Rear- and right-side-view cameras
Secondary engine shutoff switch
Lockable disconnect switch
2D E-fence with Cab Avoidance
Undercarriage and Structures
expand / collapse icon
5700 kg (12,500 lb) counterweight
All wheel drive
Automatic brake/axle lock
Creeper speed
Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
Lockable, oscillating front axle with remote greasing point
MH3026 Optional Equipment
Expand all
Note
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
Booms and Sticks
expand / collapse icon
6.9 m (22’8″) Straight MH boom
7.5 m (24’7″) Straight MH boom
5.0 m (16’5″) Straight MH stick
5.5 (18’1) Drop Nose MH stick
6.0 m (19’8″) Drop Nose MH stick
Bucket linkage, B-type with lifting eye
Cab
expand / collapse icon
Deluxe cab: air suspension heated seat, 10″ touchscreen monitor
Premium cab: heated and cooled seat with automatic adjustable suspension, 10″ touchscreen monitor
Fixed one-piece laminated windshield and roof window (P5A glass)
Fixed two-piece laminated windshield and roof window (P8B glass)
Auxiliary relay
Operator Protective Guards (OPG)
Electrical System
expand / collapse icon
Electrical refueling pump
Safety and Security
expand / collapse icon
360° visibility
Travel alarm
Inspection lighting
Undercarriage and Structures
expand / collapse icon
2.99 m (9’10”) wide undercarriage
2.99 m (9’10”) wide undercarriage with push blade
10.00-20 dual solid rubber tires
11.00-20 16 dual pneumatic tires
