Model Options

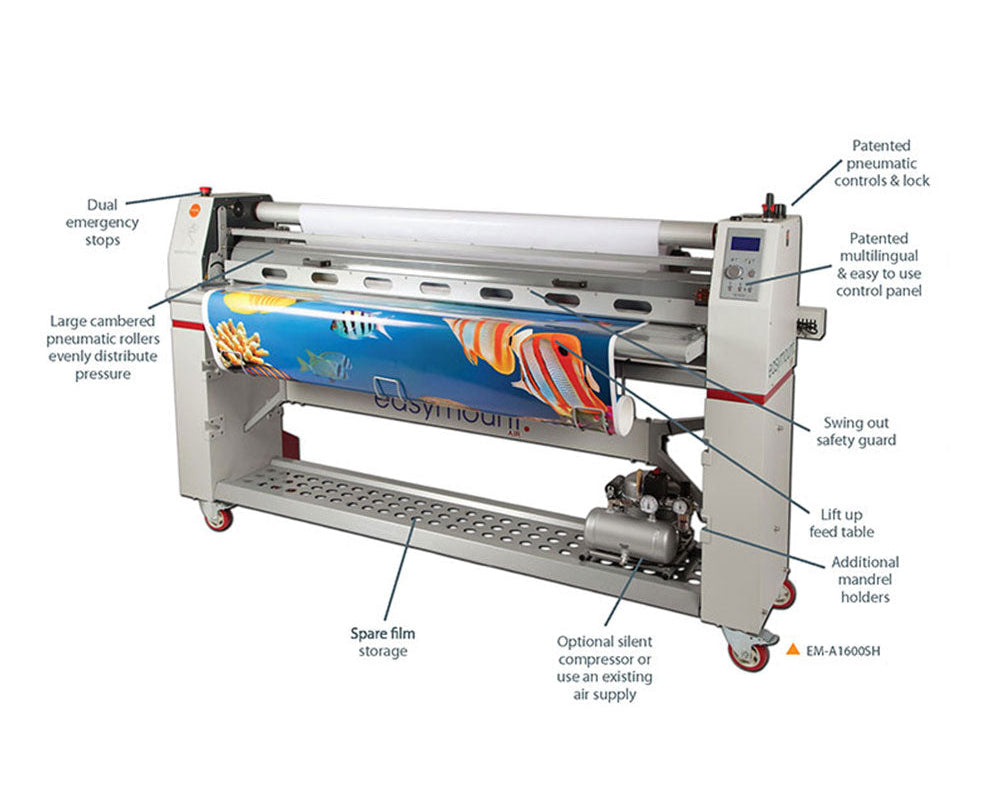

1) A1600SH Single Hot
Max Width of 1,600 mm (63.0 in.)
The Easymount Air’s patented technology uses one of the most advanced concepts ever seen in a wide format laminator.
A revolutionary product in the wide format lamination & mounting market, the Easymount Air’s patented technology uses one of the most advanced concepts ever seen in a wide format laminator. Pneumatic air pressure controls the laminating rollers, allowing you to mount and laminate with incredible accuracy, and with speeds up to 10m/33 feet a minute. This allows the rollers to adjust to the exact thickness and pressure required, giving faster production times. The top roller ‘floats’ down, ensuring Foamex and fluted boards aren’t crushed. When the rollers achieve the correct board thickness, they can be locked in place to keep the required gap, making board feeding more accurate.
Solid heavy duty construction
Pneumatic rollers which will not crush soft materials
Release liner take-up
Adjustable rollers up to 30mm
Large rollers for even pressure
Variable speed control
Handy reverse mechanism
Foot pedal controlled operation
Low maintenance
Specifications
Laminating Speed (m/min / feet/min) 10 / 33
Max. Width (mm / inches) 1600 / 63
Mounting Thickness (mm / inches) 30 / 1
Roller Diameter (mm / inches) 130 / 5
Warm-up Time (mins) 10
Hot Roller Heater System Internal Infrared
Laminating Temperature Range (°C/°F) 0-60 / 32-140
Control Panel Digital
Pressure Adjustment Pneumatic
Film Core (mm / inches) 75 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 110
Power Consumption (W) 1500
Dimensions – Width (mm / inches) 2190 / 86
Dimensions – Depth x Height (mm / inches) 650×1255 / 26×49
Gross Machine Weight (Kg / lbs) 245 / 540
Warranty 1 Year*
