Model Options
1) DH 1200 Double Hot
Max Width of 1,200 mm (47.2 in.)
2) DH 1650 Double Hot
Max Width of 1,650 mm (65 in.)
Gives you total flexibility to mount, laminate and encapsulate.

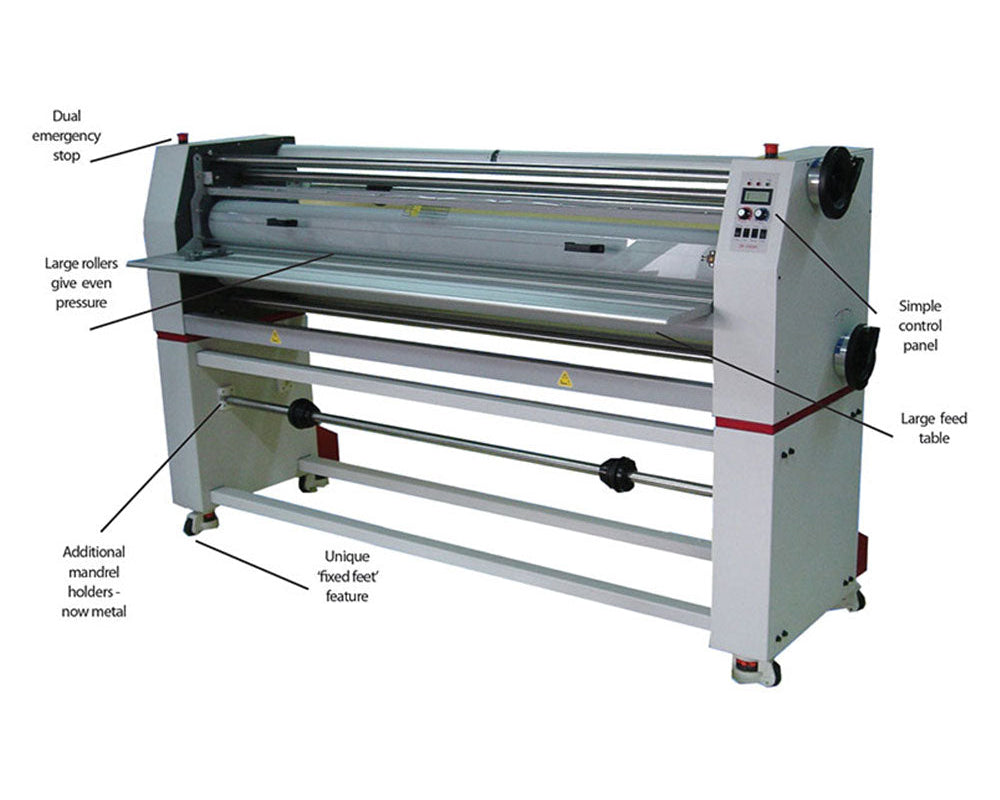

With advanced features and a new design, the Easymount is capable of delivering premium quality results for graphics and signage material.
Hot & cold mounting and laminating
Solid construction heavy-duty system
Independently heated top or bottom roller
Take up mandrel for release liner paper
Variable speed control
Large silicon rollers for even pressure
Low maintenance
Specifications
Laminating Speed (m/min / feet/min) 3.9 / 13
Max. Width (mm / inches) 1200 / 47
Mounting Thickness (mm / inches) 25 / 1
Roller Diameter (mm / inches) 112 / 4
Warm-up Time (mins) 15
Hot Roller Heater System Internal Infrared
Laminating Temperature Range (°C/°F) 0-130 / 32-266
Control Panel Digital
Pressure Adjustment Manual/Gauge
Film Core (mm / inches) 75 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps) –
Power Consumption (W) 3950
Dimensions – Width (mm / inches) 1700 / 67
Dimensions – Depth x Height (mm / inches) 785×1255 / 31×49
Gross Machine Weight (Kg / lbs) 270 / 595
Warranty 1 Year*
