Model Options
1) SIGN 650 Cold or Single Hot
Max Width of 650 mm (25.6 in.)
2) SIGN 880 Cold
Max Width of 880 mm (34.6 in.)
2) SIGN 1400 Cold or Single Hot
Max Width of 1,400 mm (55.1 in.)
2) SIGN 1600 Cold or Single Hot
Max Width of 1,600 mm (63.0 in.)

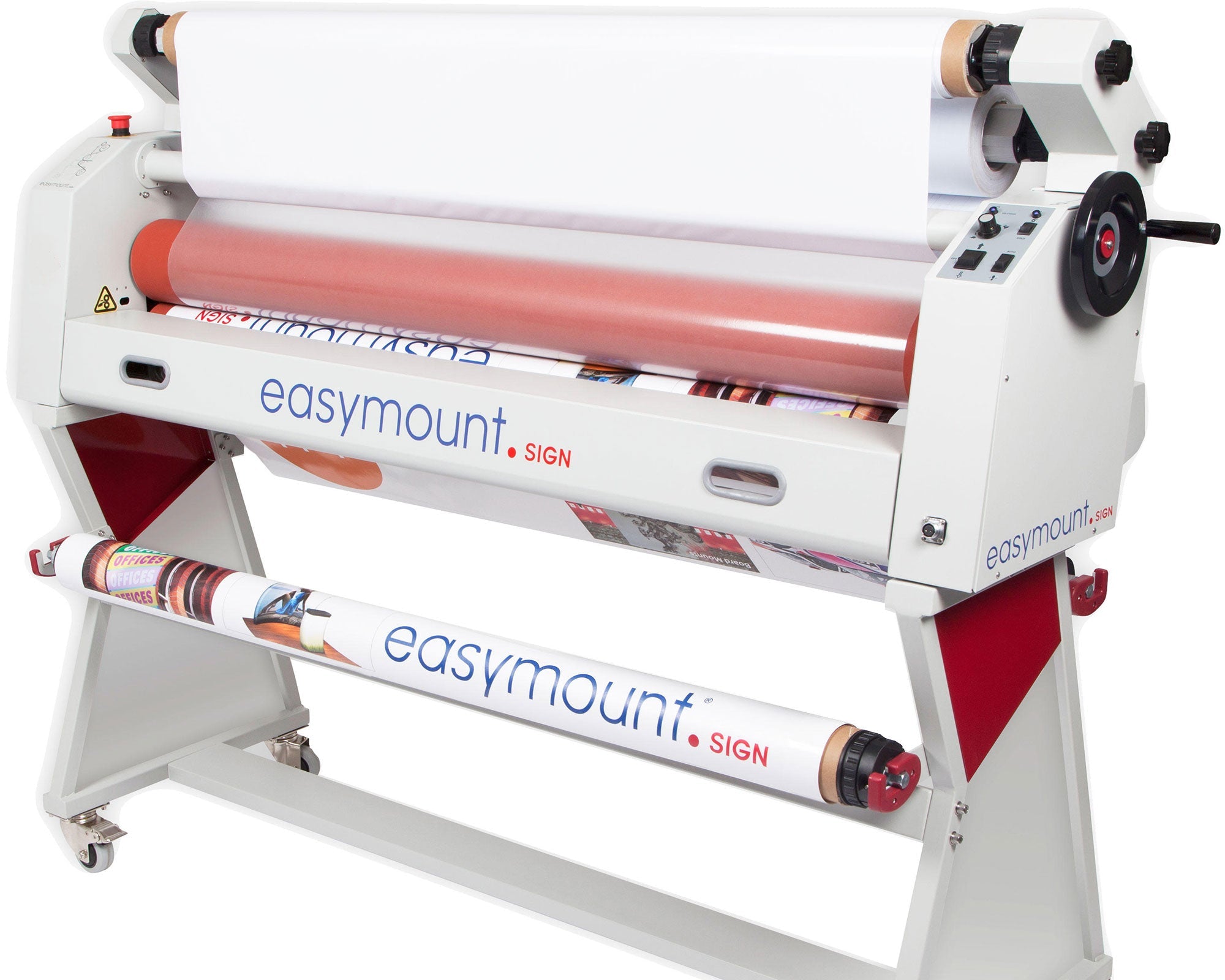

This Easymount® Sign laminator is designed to perform and built to last, with its solid heavy duty construction.
An easy-to-use laminating system with self gripping mandrels and a flip down feed tray.
The Easymount® Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet.
The Easymount Sign has been designed to be simple to operate and to produce high quality results quickly and easily. The system is perfect for even a novice user.
Ideal for cold mounting and single side laminating
Mount and laminate simultaneously
Take up mandrel for release liner paper
Reverse mechanism prevents potential jams
Large diameter silicon rollers for even pressure
Variable speed control
Double take down unit with neutral position when rollers engage
Ideal for a novice operator, no training required
Mount up to 20mm boards, perfect for foamex
Foot pedal option to leave hands free
Lockable wheels for added safety
Fixed feed table for easy feeding of prints
Low maintenance
The Easymount Sign has been designed to be simple to operate and to produce high quality results quickly and easily. The system is perfect for even a novice user.
Specifications
Laminating Speed (m/min / feet/min) 5 / 16
Max. Width (mm / inches) 650 / 26
Mounting Thickness (mm / inches) 15 / 1
Roller Diameter (mm / inches) 65 / 3
Warm-up Time (mins) –
Hot Roller Heater System –
Laminating Temperature Range (°C/°F) – / –
Control Panel LED
Pressure Adjustment Manual
Film Core (mm / inches) 75 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 110
Power Supply Required (Amps) –
Power Consumption (W) 50
Dimensions – Width (mm / inches) 850 / 33
Dimensions – Depth x Height (mm / inches) 300×470 / 12×19
Gross Machine Weight (Kg / lbs) 33 / 73
Warranty 1 Year*
