Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot
Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.
Save space with the world’s smallest plotters designed to fit your office, including a built-in stand.
Save time with the world’s easiest job submission – send multiple files in one click with HP Click software
Print multi-size A3/B and A1/D projects automatically, without manually switching the media source , Fits your office and budget

Save space with the world’s smallest plotters designed to fit your office, including a built-in stand.
Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.
More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic. , Fits the way you work

Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot.
Be more productive – save time from job prep to final print by printing your projects up to 2x faster.
Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Get high-quality results – HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut. , Extreme simplicity

Print multi-size A3/B and A1/D projects automatically, without manually switching the media source.
Save time with the world’s easiest job submission – send multiple files in one click with HP Click software.
Print with confidence you’ll get the results you expect with an intuitive driver and true print preview. , HP Designjet T630 24-in Printer
Slide 1 of 25
❮
❯
Brand: HP
Product family: Designjet

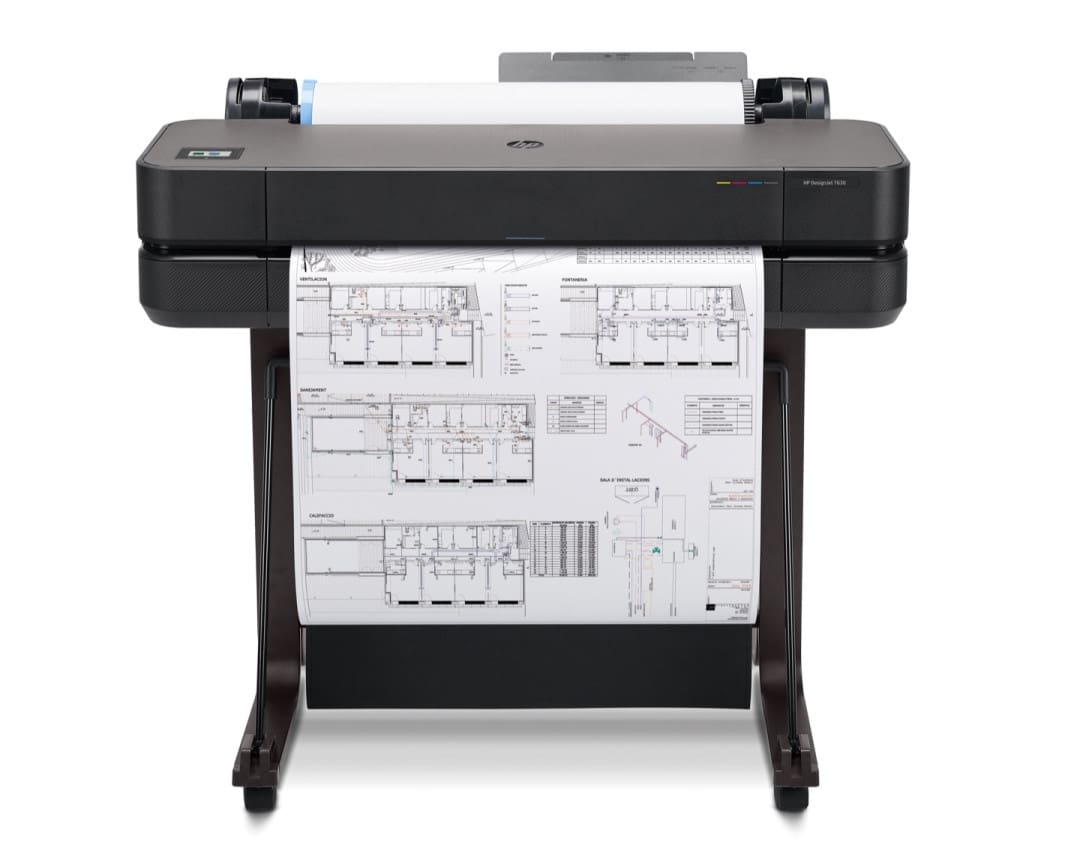

Product name: DesignJet T630 24-in Printer
Product code: 5HB09A
EAN/UPC code: 0194850019937
Print
CE Marking (pdf)
Product Brochure (pdf)
Description Reasons to buy Specs
Description

The world’s smallest wide-format printer[4] with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.

Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

One-year limited hardware warranty
Reasons to buy

Extreme simplicity

Print multi-size A3 and A1 projects automatically, without manually switching the media source.
Save time with the world’s easiest job submission[2]—send multiple files in one click with HP Click.[3]
Print with confidence you’ll get the results you expect with an intuitive driver and true print preview.

Fits your office and budget

Save space with the world’s smallest plotters[4] designed to fit your office, including a built-in stand.
Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1 pages per month.[5]
More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.[6]

Fits the way you work

Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1 plot.
Be more productive—save time from job prep to final print by printing your projects up to 2X faster.[2]
Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[7]

Specs
Printing
Print technology
Indicates the method used to print by this product.
Thermal inkjet
Colour
The main colour of the product.

Maximum resolution
Maximum printing resolution.
2400 x 1200 DPI
Number of print cartridges
The amount of print cartridges. A print cartridge is a container holding a quantity of ink which is inserted into a inkjet printer mechanism.
2
Page description languages CALS G4, HP-GL/2, HP-RTL, JPEG, URF
Printing colours
The colours that can be produced by the printer.
Black, Cyan, Magenta, Yellow
Print head
Component of a printer that applies the mark or image to the paper.
1
Copying
Copying
Description of copying function (colour or monochrome).

Scanning
Scanning
To convert a document or picture into digital form for storage or processing on a computer, by scanning it using a scanner.

Paper handling
Maximum print size
The maximum size that an image can be printed with a good resolution.
610 x 1897 mm
Paper tray media types Bond paper, Coated paper, Heavy paper, Recycled paper
ISO A-series sizes (A0…A9)
Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.
A1, A2, A3, A4
Media thickness 0.3 mm
Maximum roll width 61 cm
Ports & interfaces
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

USB port
The device features a socket into which a USB cable can be plugged.

USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called “Hi-Speed”), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10, 100, 1000 Mbit/s
Performance
Product colour
The colour e.g. red, blue, green, black, white.
Black
Built-in display
A display which is part of the product, so you do not need to attach another display.

Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system’s hardware.
1024 MB
Sound pressure level (printing) 42 dB
Country of origin
Country where the device is made. Aka Country of manufacture (COM).
China
Performance
Certification USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
Power
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.2 W
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
35 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 – 240 V
AC input frequency 50 – 60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 – 40 °C
Operating relative humidity (H-H) 20 – 80%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-25 – 55 °C
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.

Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.

Sustainability
Sustainability certificates EPEAT Gold, ENERGY STAR
Sustainable technologies and materials More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered
Weight & dimensions
Width
The measurement or extent of something from side to side.
1013 mm
Depth
The distance from the front to the back of something.
605 mm
Height
The measurement of the product from head to foot or from base to top.
932 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
28.9 kg
Packaging data
Package width
The distance from one side of the packaging to the other.
1155 mm
Package depth
The distance from the front to the back of the packaging.
575 mm
Package height
The distance from the top to the bottom of the packaging.
475 mm
Package weight
Weight of the packaged product.
37.4 kg
Bundled software
Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant , , , , , HP Designjet T630 24-in Printer
