Model Options

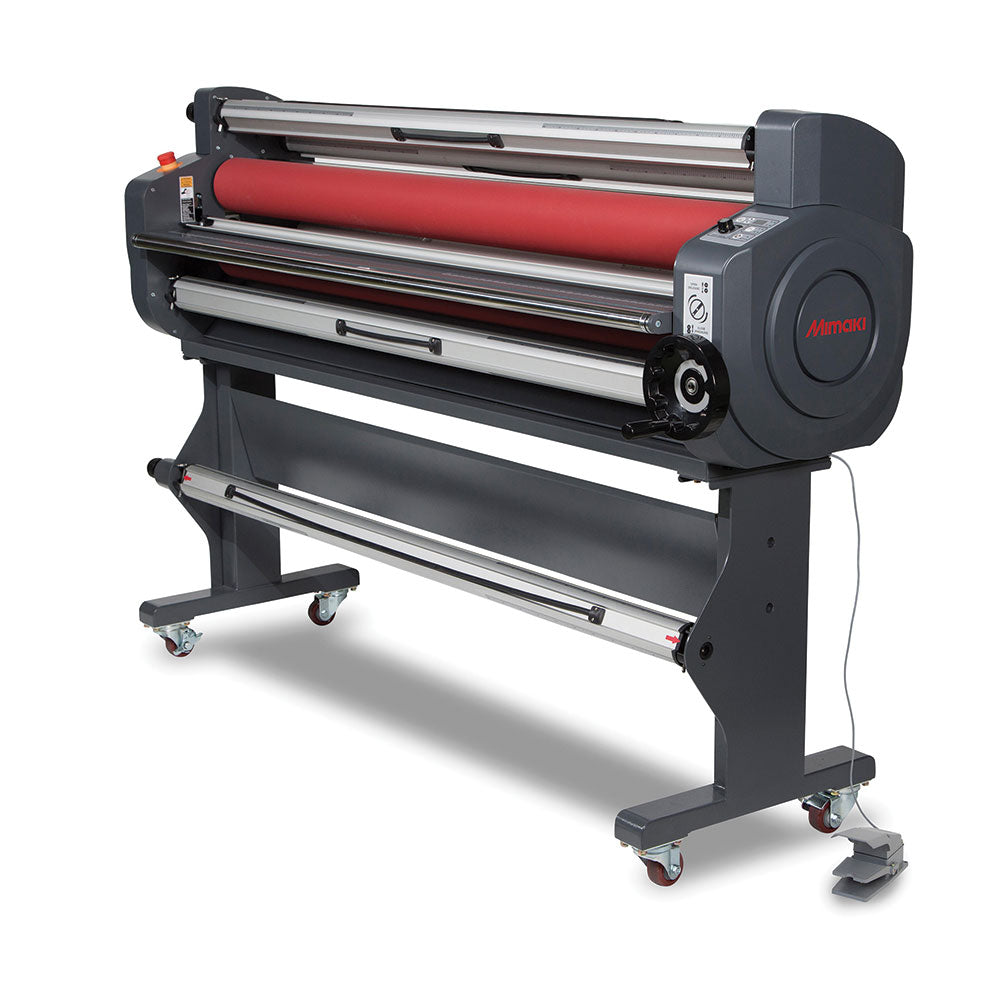

1) LA-160W Single Hot
Max Width of 1,600 mm (63.0 in.)
Unlike cold lamination machines, Mimaki’s LA-160W large format laminator uses a gentle heat up to 60 degrees to make the film malleable enough to reduce the occurrence of tiny air bubbles known as silvering.
1. The warm function of [LA-160W] [LA-170W] reduces the silvering influence of UV print lamination
[LA-160W] [LA-170W] are equipped with the [Warm function], which allows to heat up to max. 60 degrees. The media surface printed by UV ink is likely to have an evenness, but [LA-160W] [LA-170W] laminating while heating can improve the adhesion of laminating to reduce generation of silvering.
[LA-160W] [LA-170W] are suitable to utilize with [UCJV300/150-160].
2. Operation speed equivalent with the high class models
Mimaki [LA-160W] [LA-170W] achieved the maximum operating speed is 7,500mm/min. With an affordable price, they can provide the same level of operation speed with upper class models. The combination use with [UCJV300/150-160] enables to duly contribute to your job, focusing quick response for UV ink property of instant curing upon UV light irradiating to save the ink drying time.
3. Simple and reliable operability when using by one operator
Operation speed of lamination is max. 7,500mm/min. and steplessly adjustable by dial. The temperature of warming function can be set to suit media up to 60 degree by every one degree from the operation panel and the laminating pressure is easily modified by handle. The take-up function of laminated print is added to be able to use by operator alone.
4. Safety design for the operator protection
Two safety functions are featured : an emergency stop and a protection by laser preventing rolling-in trouble. The safety functions to support the safer working environment to protect operator from an accident of rolling-in.
Item LA-160W LA-170W
Settable media width Max. 1,580 mm (62.2 in) Max. 1,700 mm (66.9 in)
Laminating speed Max 7,500 mm / minute
Film thickness Max. 35 mm
Core diameter 3 inch
Warm temperature Max. 60 degrees
Power consumption 1800W or less
Attachment shaft
(with measure scale) 3 inch x 5 pcs.
Dimensions (W×D×H) 2,000 x 550 x 1,280 mm
(78.8 x 21.7 x 50.4 in) 2,100 x 550 x 1,280 mm
(82.7 x 21.7 x 50.4 in)
Weight 205 kg (451.9 lb) 220 kg (485.0 lb)
