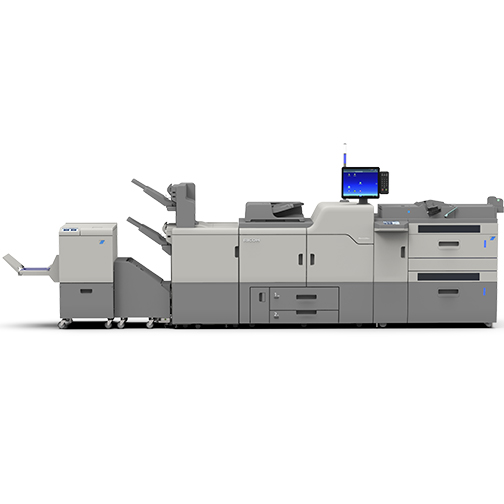

Ricoh’s innovative production sheet fed presses, the ProTM C7200sx Series
Ricoh’s innovative production sheet fed presses, the ProTM C7200sx Series
PreviousNext
Grow your business with a game-changing digital press. Pursue profitable growth with an affordable, innovative colour digital press. The Pro C7200sx Series delivers superb image quality, oversized print options and diverse media choices. The 5th Colour Station lets you go beyond CMYK to produce unique, compelling materials that can command premium prices. Advanced workflows and performance-enhancing capabilities help you fulfil demanding deadlines while keeping operational costs low.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
The Pro C7200sx Series are Ricoh’s innovative product offerings to enable your business to stand out in the crowd and be able to grow and expand your print opportunitues. With the addition of the 5th colour station, you can add extra impact to your print, whether adding a clear varnish to accentuate designs, printing white directly onto coloured media or using invisible red for entry level security applications, neon yellow and neon pink to create greater impact for print and to extend the colour gamut. The range of applications in limited only by imagination. Enhanced options expand more inline professional application capabilities.
Print quality that is comparable to offset
5th colour adds impact, appeal and value to any print output
It enables you to print White + CMYK in a single pass
Full engine speed maintained at all media weights up to 360gsm
Auto duplex on long sheets up to 700mm and 1260mm in simplex
New inline finishing allows you a wider variety of booklet applications.
GENERAL
Configuration Console
Technology 4-drum dry electrostatic transfer system with internal transfer belt
Fusing Oil-less, belt fusing method
Maximum printable area 323 x 1,252 mm
Warm-up time 300 seconds
First output speed 11 seconds
Continuous output speed 85 pages per minute
Laser resolution – Maximum 2,400 x 4,800 dpi
Memory – Maximum 4 GB
Life 5 years or 14,400,000 output
Dimensions (W x D x H) 1,320 x 910 x 1,218 mm
Weight 560 kg
Power source 220 – 240 V, 50/56 Hz
COPIER
Multiple copying Up to 9,999 copies
Resolution 1,200 dpi
Zoom From 25% to 400% in 1% steps
PRINTER
Printer language – Standard PCL6, Adobe® PostScript® 3™
Print resolution – Maximum 1,200 dpi
Interface – Standard USB 2.0, Ethernet 10 base-T/100 base-TX/1000 base-T
Network protocol – TCP/IP IP v4, IP v6
Network protocol SMB
Windows® environments Windows® 10 Enterprise
SCANNER
Scanning speed Maximum 120 originals per minute
Resolution – Standard 100 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
Original size A3, A4, A5, B4, B5
Bundled drivers Network TWAIN
Scan to – E-mail SMTP, POP before SMTP
Scan to – Folder SMB, FTP
PAPER HANDLING
Recommended paper size SRA3, A3, A4, A5, B4, B5
Paper input capacity – Standard 2,500 sheets
Paper input capacity – Maximum 16,200 sheets
Paper input capacity – Bypass tray 500 sheets
Paper input capacity – Optional Vacuum Feed LCT 3rd-8th Tray,2,200 sheets each
Paper weight – Paper tray(s) 52 – 300 g/m²
Paper weight – Bypass tray 52 – 216 g/m²
Paper weight – Duplex 52 – 360 g/m²
Paper weight – Vacuum Feed LCT 3rd-4th tray,52 – 360 g/m²
ECOLOGY
Power consumption – Maximum 5,000 W
CONSUMABLES
Toner capacity – Black 45,000 prints
Toner capacity – Cyan 45,000 prints
Toner capacity – Magenta 45,000 prints
Toner capacity – Yellow 45,000 prints
