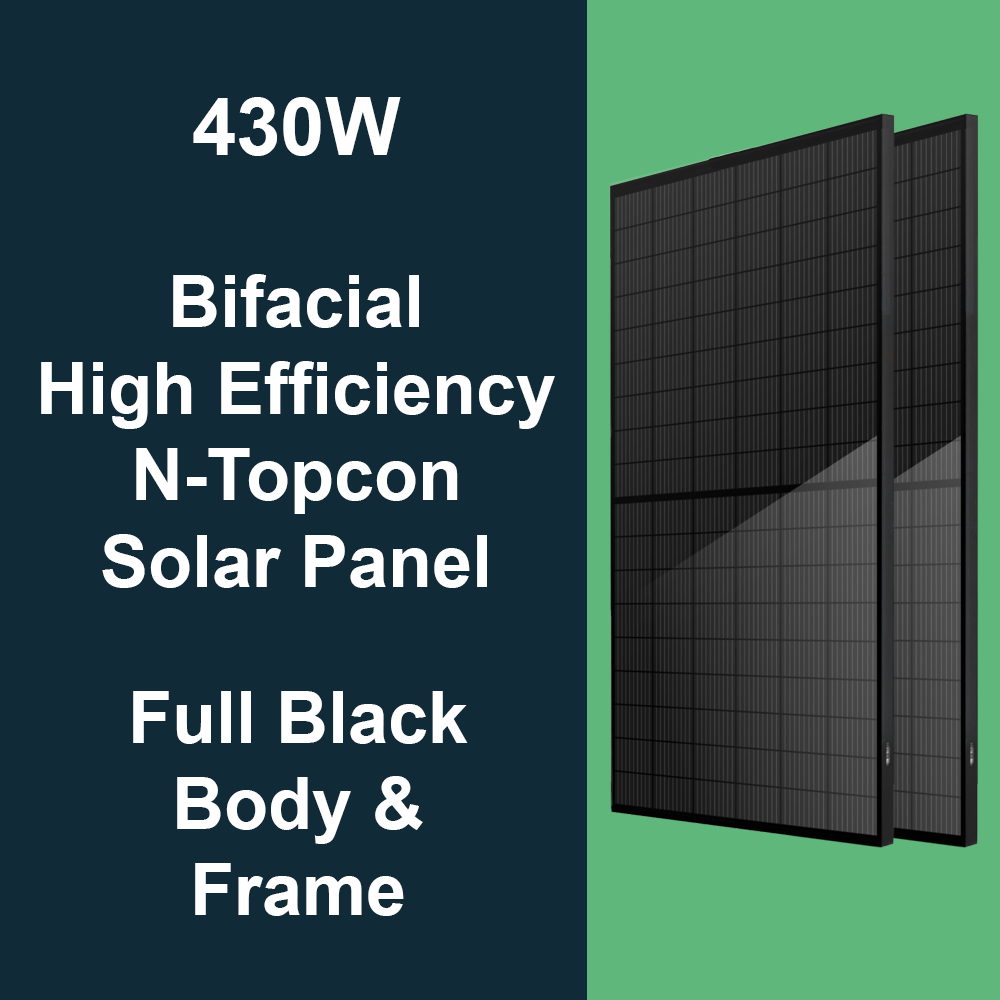

430W – N-TOPCon Bifacial High Efficiency Solar Panel | All Black Body and Frame
Product Benefits:
HALF-CUT TECHNOLOGY: Unique circuit design to reduce temperature heat spots
SIGNIFICANTLY AVOIDING HEAT SPOT: The unique circuit design reduces the temperature heat spot significantly to reduce the power loss and then increase the output of modules
LOWER COST: Increasing power generation can reduce the cost per kilowatt-hour
EXCELLENT PERFORMANCE OF PID RESISTANCE: The performance of PID resistance (Potential Induced Degradation) passed the standard of TUV Nord
UP TO 10-YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
25-YEAR WARRANTY: LINEAR POWER OUTPUT
Features:
410W All Black Mono Panel
Efficiency: 22.02%
Width: 1134mm
Height: 1722mm
1 Meter Cable Included
Built-in Half-Cut Technology
High-Efficiency Mono PERC module
Solar Panel Warranty:
10-Year Warranty on Product Material and Workmanship
25-Year Warranty on Linear Power Output
System Specs:
36 Panels – 15.48kW Solar Panel System
Solar Panel Specification:
Peak Power(Pmax) 430.00
Max Power Voltage(Vmp) 32.07
Max Power Current(Imp) 13.41
Open Circuit Voltage(Voc) 38.35±3%
Short Circuit Current(Isc) 14.06±3%
Module Efficiency( % ) 20.97%
Cell Type 182*91 TOPCon
No. of Cells 108 (6*18)
Front Glass 2mm High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP68
Output Cables 4mm2 Cable 100cm (Inc MC4 Connector)
Max Wind Load / Snow Load 2400Pa/5400Pa
Net Weight 24.8kg
Width 1134mm
Height 1722mm
Depth 30mm
Max System Voltage (V) 1500 V
Max Series Fuse Rating (A) 30 A
Power Tolerance 0-+5W
Nominal Operating Cell Temp 43±2°C
Operating & Storage Temp -40-+85°C
