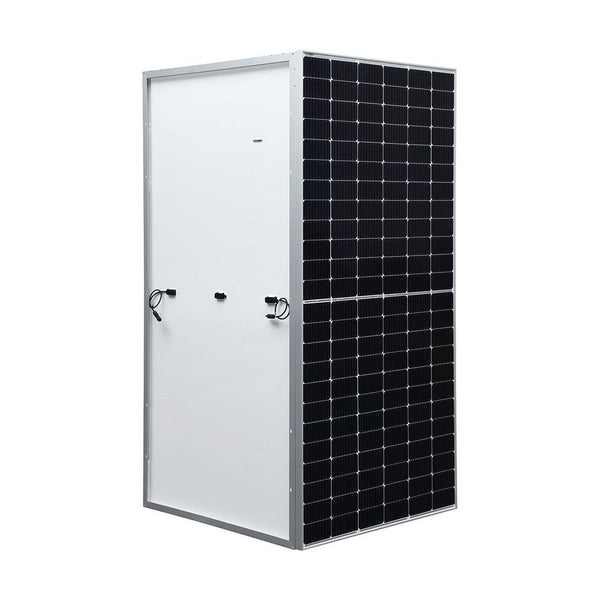

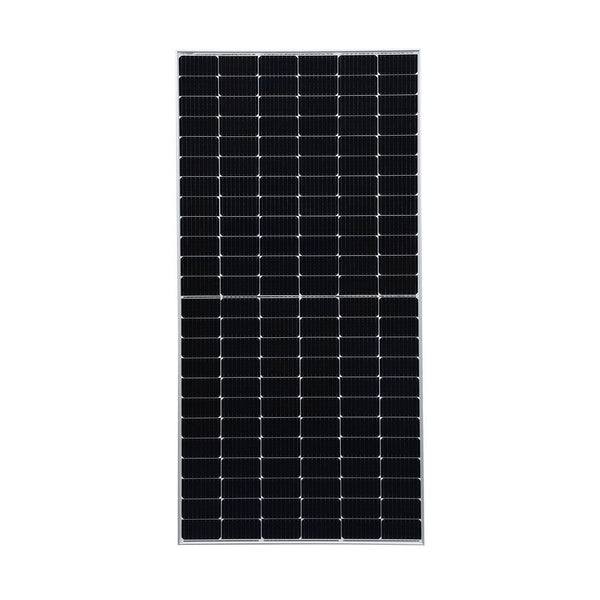

450W – Mono Solar Panel | Silver Body and Frame
Product Benefits:
HALF-CUT TECHNOLOGY: Unique circuit design to reduce temperature heat spots
SIGNIFICANTLY AVOIDING HEAT SPOT: The unique circuit design reduces the temperature heat spot significantly to reduce the power loss and then increase the output of modules
LOWER COST: Increasing power generation can reduce the cost per kilowatt-hour
EXCELLENT PERFORMANCE OF PID RESISTANCE: The performance of PID resistance (Potential Induced Degradation) passed the standard of TUV Nord
UP TO 10-YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
25-YEAR WARRANTY: LINEAR POWER OUTPUT
Features:
450W Silver Body & Frame
Efficiency: 21%
Width: 1038mm
Height: 2094mm
Built-in Half-Cut Technology
High-Efficiency Mono PERC module
Solar Panel Warranty:
10 Year Warranty on Product Material and Workmanship
25 Year Warranty on Linear Power Output
System Specs:
11 Panels – 4.95KW Solar Panel System
Solar Panel Specification:
Peak Power(Pmax) 450.00
Max Power Voltage(Vmp) 41.50
Max Power Current(Imp) 10.85
Open Circuit Voltage(Voc) 49.30±3%
Short Circuit Current(Isc) 11.60±3%
Module Efficiency( % ) 20.70
Cell Type 116*83 Mono
No. of Cells 114 (12×12)
Front Glass 3.2mm High Transmission, Low Iron, Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP67/IP68 3 Diodes
Output Cables 4mm2 Cable 55cm (Inc MC4 Connector)
Max Wind Load / Snow Load 2400Pa/5400Pa
Net Weight 23.50kg
Width 1038mm
Height 2094mm
Depth 35mm
Max System Voltage (V) 1500 V
Max Series Fuse Rating (A) 20 A
Power Tolerance 0-+3W
Nominal Operating Cell Temp 45±2°C
Operating & Storage Temp -40-+85°C
