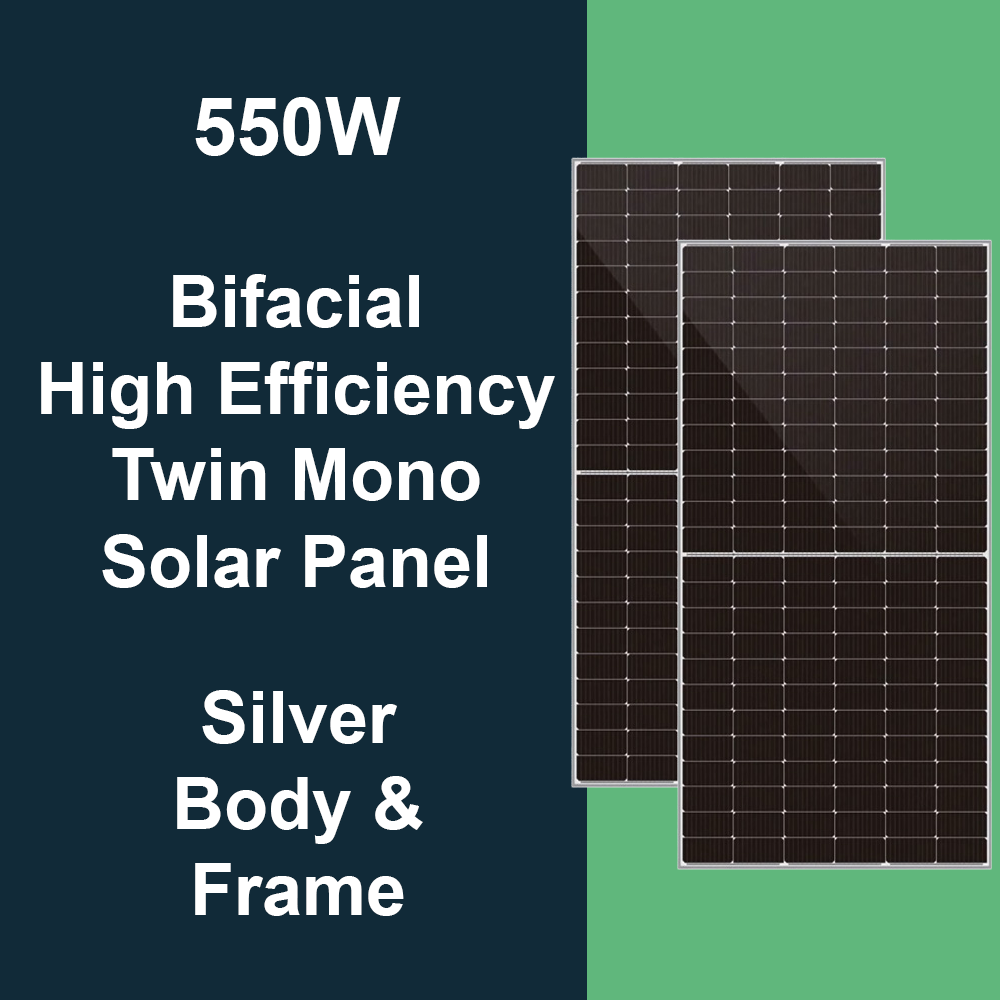

550W – Twin Mono Solar Panel | Silver Body and Frame
Product Benefits:
HALF-CUT TECHNOLOGY: Unique circuit design to reduce temperature heat spots
SIGNIFICANTLY AVOIDING HEAT SPOT: The unique circuit design reduces the temperature heat spot significantly to reduce the power loss and then increase the output of modules
LOWER COST: Increasing power generation can reduce the cost per kilowatt-hour
EXCELLENT PERFORMANCE OF PID RESISTANCE: The performance of PID resistance (Potential Induced Degradation) passed the standard of TUV Nord
UP TO 10-YEAR WARRANTY: PRODUCT MATERIAL & WORKMANSHIP
25-YEAR WARRANTY: LINEAR POWER OUTPUT
Features:
550W Silver Body & Frame
Efficiency: 21.28%

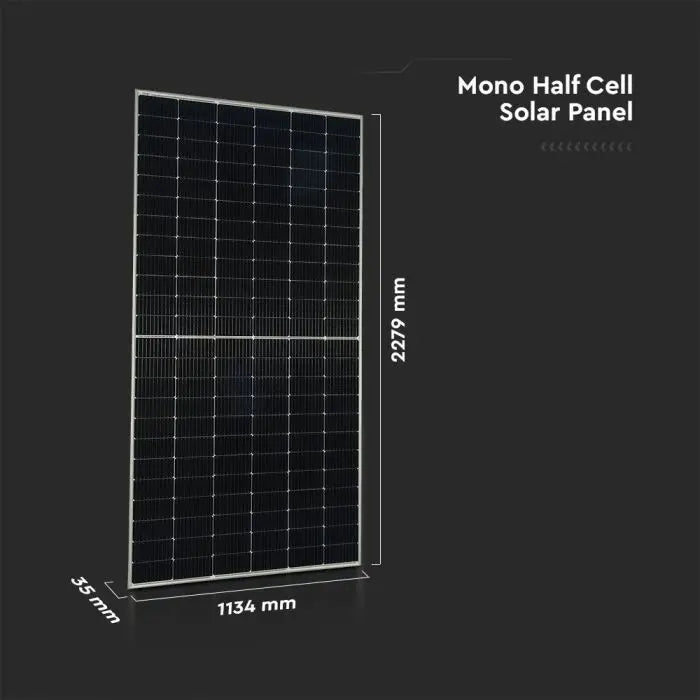

Width: 1134mm
Height: 2279mm
Built-in Half-Cut Technology
High-Efficiency Mono PERC module
Solar Panel Warranty:
12 Year Warranty on Product Material and Workmanship
25 Year Warranty on Linear Power Output
System Specs:
31 Panels – 17.05kW Solar Panel System
Solar Panel Specification:
Peak Power(Pmax) 550.00
Max Power Voltage(Vmp) 41.96
Max Power Current(Imp) 13.11
Open Circuit Voltage(Voc) 49.90±3%
Short Circuit Current(Isc) 14.00±3%
Module Efficiency( % ) 21.28
Cell Type 182*91 Mono-Crystalline
No. of Cells 144 (12×12)

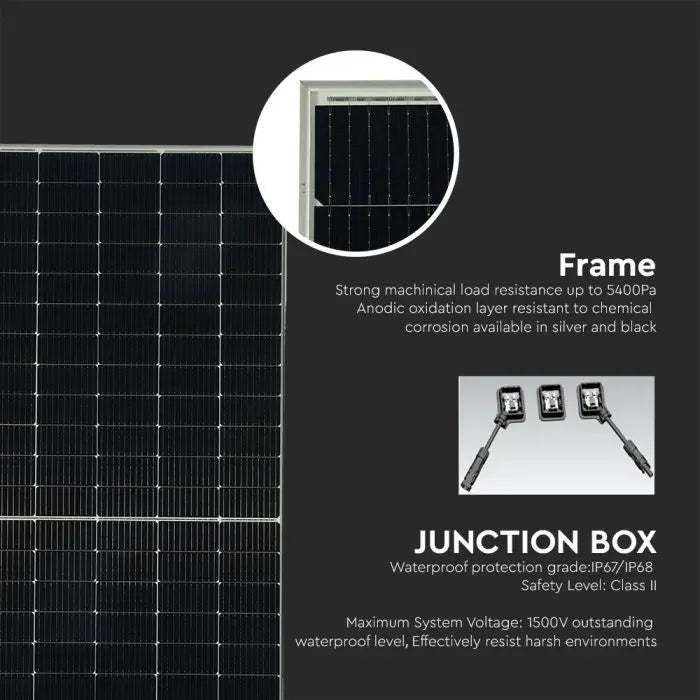

Front Glass 3.2mm Ultra Clear Embossed Tempered Coated Glass
Frame Anodized Aluminium Alloy
Junction Box IP68
Output Cables 4mm2 symmetrical lengths 1300mm (Inc MC4 Connector)
Max Wind Load / Snow Load 2400Pa/5400Pa
Net Weight 29kg
Width 1134mm
Height 2279mm
Depth 35mm
Max System Voltage (V) 1500 V
Max Series Fuse Rating (A) 25 A
Power Tolerance 0-+3W
Nominal Operating Cell Temp 44±2°C
Operating & Storage Temp -40-+85°C
