Description

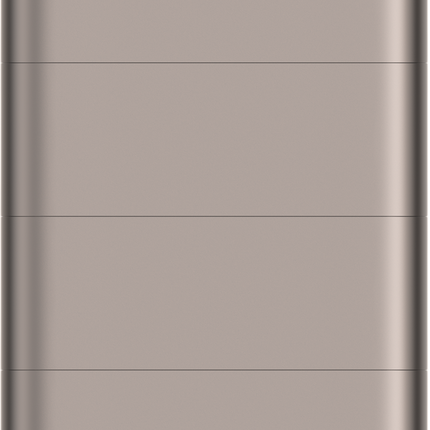

Stylish and Practical (very fast Installation time)Looks Great either in the home or outsideThe EP Cube is a flexible and intelligent all-in-one home energy storage solution for new and existing solar installations. With unrivalled flexibility and intelligent software management, it is designed to offer a quick and easy installation, simplified logistics, and cost-savings all round to make life easier for homeowners and installers.
Click Here To Register For The On-line Installation Training Course
10 Year warranty as standard
System Overview & Data Sheet
Installation Guide
INCLUDED IN PACKAGE:
7.6KW HYBRID INVERTER
3.3 KWH BATTERIES X 6
TOP COVER
FLOOR BASE
WIFI DONGLE
SMART METER
INTERNAL DC BREAKER
HYBRID INVERTER 7.6KW
Max DC input 10kwp
7600W nominal AC output power
IP67 rating
Dimensions (W x H x D)mm 600 x 1866 x 243
10 year warranty
BATTERIES
19.9kW OF POWER FROM THE 6 x BATTERIES COMBINED
DOC 100%
VOLTAGE RANGE 30v – 43.8v
WEIGHT OF EACH BATTERY: 35kg
IP RATING: IP67
INTEGRATED PROTECTION
Battery Input Reverse / Polarity Protection
Over load Protection (DC-AC side)
AC Short Circuit Current Protection / Output Short Protection
Output Over Current Protection
DC (PV+Battery) Short Circuit Current Protection
AC Surge Protection (SPD -Type) Output Over Voltage Protection
Grid and Back-up (SPD Type II)
Anti Islanding Protection
PV String Input Reverse Polarity Protection
Ground Fault Monitoring
Temperature Protection (Inverter + Battery)
Integrated DC Switch (PV – Disconnector)
Emergency Stop
WARRANTY
Inverter: 10 Years
Battery: >80% Capacity 10 Years / 6000 cycles
Accessories: 2 Years
