Description

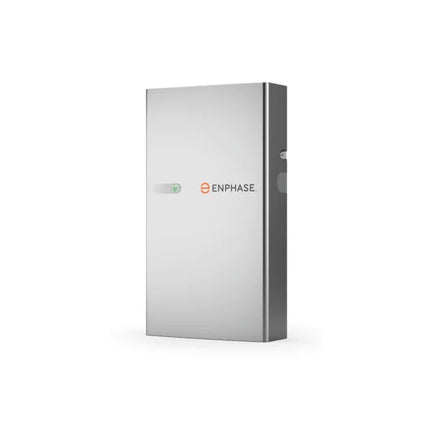

An all-in-one, AC-coupled storage system, the IQ Battery 5P is the most powerful Enphase battery yet. It has a total usable energy capacity of 5.0 kWh, and features six embedded grid-forming microinverters and 3.84 kW of continuous power, as well as peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds. Easily integrating with the Enphase Energy System, the IQ Battery 5P can provide backup capability when installed with IQ System Controller 3/3G, and is supported by a 15-year limited warranty. Its modular design means installers can quickly design the right system size to meet the needs of their customers.
Details
Fully integrated AC battery system Six embedded IQ8D-BAT Microinverters 15-year limited warranty Field-replaceable components Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity Cools passively with no moving parts or fans Uses Control cabling for fast and consistent connection Quick and easy installation Remote software and firmware upgrades Grid-forming capability for backup operation Offers homeowners remote monitoring and control from the Enphase App Supports backup, self-consumption, and time of use (TOU) modes
Installation Manual.
You must be certified to install this product. Uncertified installers will be unable to complete the commissioning process. For details on certification please speak to your Account Manager.
Supplier Part No: EN-IQ-BATTERY-5P
Weight: 66.3 kg
Rated Power: 5,000 W
Battery Type: Lithium Ion
Nominal Energy: 5000 Wh
Depth of discharge: 95.00 %
Voltage: 76 V
Continuous Discharge Rate (Normal Use): 3824 W
Maximum Discharge Rate (5 Minutes): 3200 W
Surge Discharge Rate (15 Seconds): 7000 W
Maximum Charge Rate (5 Minutes): 3200 W
Enphase Energy, founded in 2006 in California, is the world leader in micro inverter technology with more than 13 million units sold worldwide and over 500,000 installed systems representing over 3GW of clean energy.
