Description
Part No: FE-HV-EC-2-4.3-8.6 Storage Systems – Li-ion Battery Pack
This part is made up of the following items:
1 x FE-HV-ECM-4300 Fox ECS 4.14kWh HV Battery (Master)
1 x FE-HV-ECS-4300 Fox ECS 4.14kWh HV Battery (Slave)

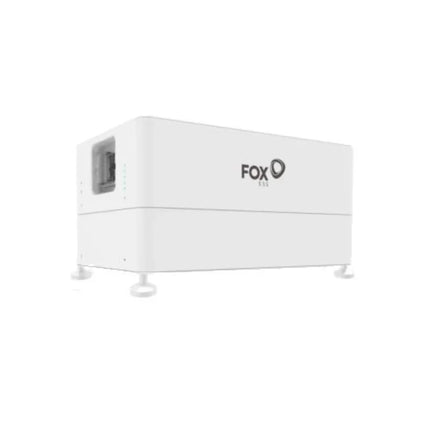

Fox ECS 4.3kWh – Stack of 2 (8.29kWh) Incl. Master
ECM4300
4.14kWh Capacity
Scalable to 29.03kWh
90% Depth of Discharge
Wide Temperature Tolerance
Easy Installation
CAN/RS485 Communication
High Voltage
The quick & easy install feature allows for more ECM4300 battery modules to be added post installation.
Weight: 75.6kg
Dimensions (Width, Hight, Depth): 570mm x 350mm x 380mm
Don’t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it’s 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)
Weight: 76.6 kg
Battery Type: Lithium Ion
Nominal Energy: 8290 Wh
Depth of discharge: 90.00 %
Voltage: 115 V
Continuous Discharge Rate (Normal Use): 5760 W
Maximum Discharge Rate (5 Minutes): 5760 W
Surge Discharge Rate (15 Seconds): 7488 W
Maximum Charge Rate (5 Minutes): 5760 W
