Description

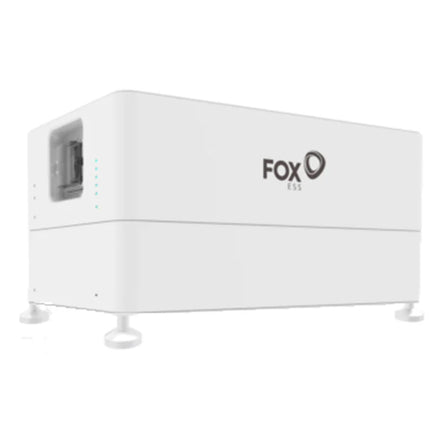

Part No: FE-HV-EQ-2-4.8-9.6 Storage Systems – Li-ion Battery Pack
This part is made up of the following items:
1 x FE-HV-EQM-4800 Fox EQ4800, 4.66kWh HV Battery (Master)
1 x FE-HV-EQS-4800 Fox EQ4800, 4.66kWh HV Battery (Slave)
Fox EQ 4.66kWh – Stack of 2 (9.32kWh Useable Storage) Incl. Master
EQ4800-L2
4.66kWh capacity
Scalable to 41.94 kWh
90% Depth of Discharge
Large temperature tolerance
Easy installation
CAN communication
High voltage
The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.
Weight: 83.5kg
Dimensions (Width, Hight, Depth): 570mm x 386mm x 380mm
Don’t forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it’s 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.
Weight: 83.5 kg
Battery Type: Lithium Ion
Nominal Energy: 9320 Wh
Depth of discharge: 90.00 %
Voltage: 89 V
Continuous Discharge Rate (Normal Use): 2240 W
Maximum Discharge Rate (5 Minutes): 4480 W
Surge Discharge Rate (15 Seconds): 5785 W
Maximum Charge Rate (5 Minutes): 4480 W
