Description
Part No: FE-HV-EQ-8-4.8-38.4 Storage Systems – Li-ion Battery Pack
This part is made up of the following items:
7 x FE-HV-EQS-4800 Fox EQ4800, 4.66kWh HV Battery (Slave)
1 x FE-HV-EQM-4800 Fox EQ4800, 4.66kWh HV Battery (Master)

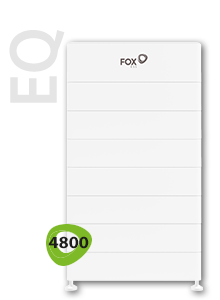

Fox EQ 4.66kWh – Stack of 8 (37.27kWh Useable Storage) Incl. Master
EQ4800-L8
4.66kWh capacity
Scalable to 41.94 kWh
90% Depth of Discharge
Large temperature tolerance
Easy installation
CAN communication
High voltage
The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.
Weight: 317.5kg
Dimensions (Width, Hight, Depth): 570mm x 1214mm x 380mm
Don’t forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it’s 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.
Weight: 332.5 kg
Battery Type: Lithium Ion
Nominal Energy: 37270 Wh
Depth of discharge: 90.00 %
Voltage: 358 V
Continuous Discharge Rate (Normal Use): 2240 W
Maximum Discharge Rate (5 Minutes): 4480 W
Surge Discharge Rate (15 Seconds): 5785 W
Maximum Charge Rate (5 Minutes): 4480 W
