Description
Part No: FE-HV-EQM-4800 Storage Systems – Li-ion Battery Pack

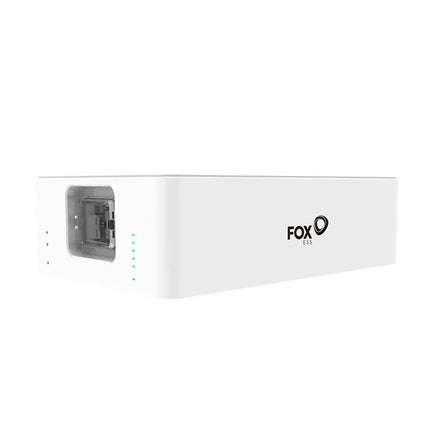

Fox ECS – High Voltage Battery (Master)
EQ4800
EQ is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 41.94kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
4.66 kWh Capacity
Scalable to 41.94 kWh
90% Depth of Discharge
Large Temperature Tolerence
Easy Installation
CAN/RS485 Communication
High Voltage
Don’t forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it’s 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves)
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Powerland will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Supplier Part No:
FE-HV-EQM-4800
Weight:
42 kg
Rated Power:
4,800 W
Battery Type:
Lithium Ion
Nominal Energy:
4660 Wh
Depth of discharge:
90.00 %
Voltage:
V
Continuous Discharge Rate (Normal Use):
2330 W
Maximum Discharge Rate (5 Minutes):
4460 W
Surge Discharge Rate (15 Seconds):
5785 W
Maximum Charge Rate (5 Minutes):
4460 W
