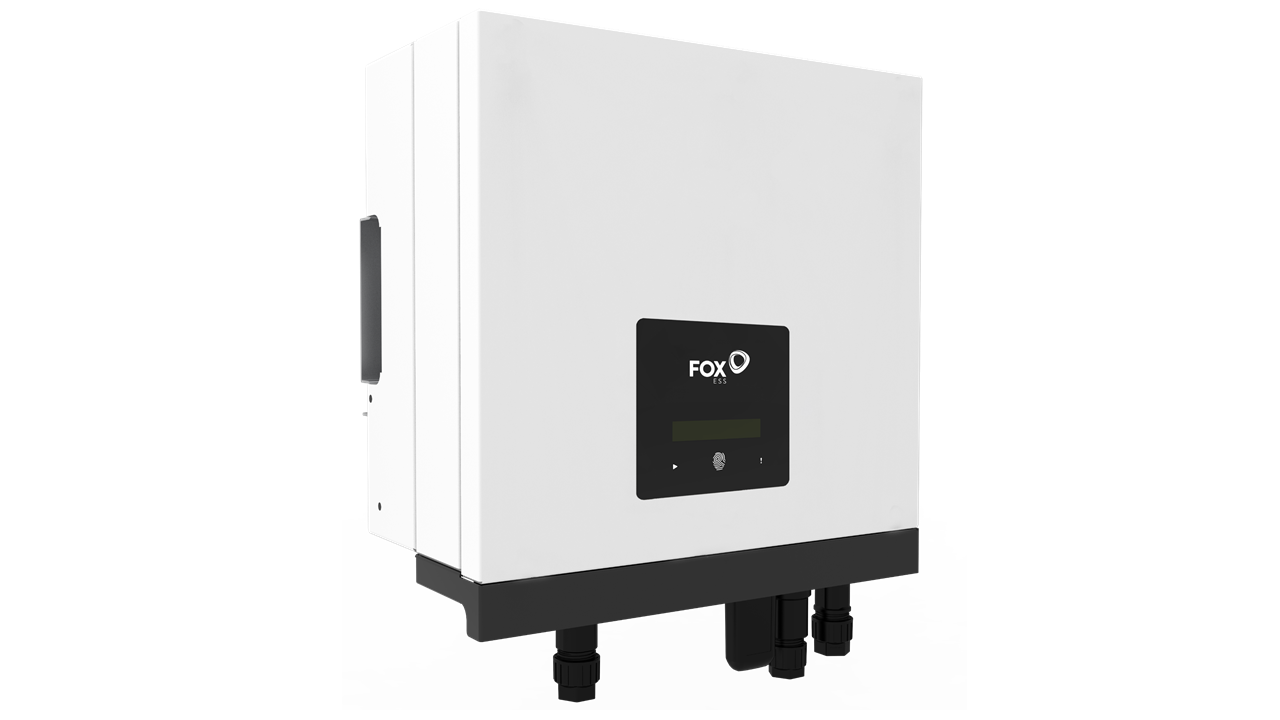

FOX ESS AC COUPLED AC1 5.0KW SINGLE PHASE CHARGER INVERTER

UNLEASH EFFICIENCY WITH THE FOX ESS AC COUPLED 5.0KW AC1 CHARGER INVERTER The Fox system is designed for easy installation, saving you valuable time during setup. Take advantage of remote monitoring capabilities through your smartphone or web portal. Utilizes High Voltage Batteries: Benefit from the advanced technology of high voltage batteries Fox ESS HV2600-V2, Fox ESS ECS2900, Fox ESS ECS4100, and Fox ESS ECS4800. IP65 rated for outdoor installations Remote monitoring via web portal or smartphone Easy to expand battery capacity Dual MPPT ensures optimal solar production High round-trip efficiency of 97%; BMS unit required for a minimum of 2 x HV2600 batteries CT Clamps and meter are included in the box Key Features: The Fox ESS AC Coupled 5.0kW AC1 Charger Inverter is a high-quality solution converting solar energy to AC energy stored in a battery. Use it to optimize energy consumption, store energy for future use, or feed excess energy into the grid. The system offers several advantages: Advanced DSP control technology Utilizes the latest high-efficiency power components Advanced anti-islanding protection Max efficiency up to 97.8%, THD <3% Export limitation (CT/Meter/DRM0/ENSTOP) WiFi remote control (with WiFi dongle installed) Operating Modes The Fox ESS 5.0kW AC1 Charger Inverter features four work modes to adapt to various needs: Self-use: Prioritizes battery discharge for local loads first, with the grid supplying power when the battery capacity is insufficient. Feed in priority: In the presence of an external generator, generated power is used for local loads first, then exported to the grid. Redundant power charges the battery. Force time use: Ideal for areas with peak and off-peak pricing. Allows flexible setting of charging and discharging times, with the option to charge from the grid. Back-up (EPS) mode: Supplies emergency power from PV or a battery during grid outages. The Fox ESS 5.0kW AC1 Charger Inverter seamlessly integrates with smart Agile tariffs, with compatibility confirmed with Octopus Energy and other Economy 7 providers. It also supports an external backup generator for extended grid outages. Fast Delivery Across the UK Experience the benefits of the Fox ESS 5.0kW AC1 Charger Inverter with prompt 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland). Detailed specifications BATTERY CONNECTION Battery Type: Lithium Iron Phosphate (LiFePO4) Battery Voltage: 85-450V Max. Charge/Discharge Current: 40A Communication Interface: CAN(Communicate With Inverter), RS485 (Upgrade BMS) AC INPUT AND OUTPUT (GRID) Max. AC Input Power: 10000VA Max. Input Current (per phase): 45.5A Rated Output Power: 5000W Max. Output Apparent Power: 5500VA Rated Output Current (per phase): 21.7A Max. Output Current: 23.9A Rated Grid Voltage: 220-240VAC Rated Grid Frequency: 50/60Hz Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) THDi: <3% @rated power EPS OUTPUT (WITH BATTERY) Max. Output Apparent Power: 6000VA Peak Output Apparent Power (60sec): 7200VA Max. Current (per phase): 26.1A Rated Output Voltage: 220-240VAC Rated Output Frequency: 50/60Hz Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) THDi (linear load): <2% @rated power Switch Time: 20ms EFFICIENCY Max. Efficiency: 97.80% Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00% Operating Temperature: -25 ~ +60°C Protection Degree: IP65 Size:  430 x 410 x 178mm Net Weight: 23kg In the Box: 1 X Fox ESS 5.0kW AC1 Charger Inverter, 1 X Fox ESS 5.0kW AC1 Charger Inverter User's Manual. Frequently Asked Questions Don't know an answer to your question? Call us on 020 8064 0335 or email [email protected].
