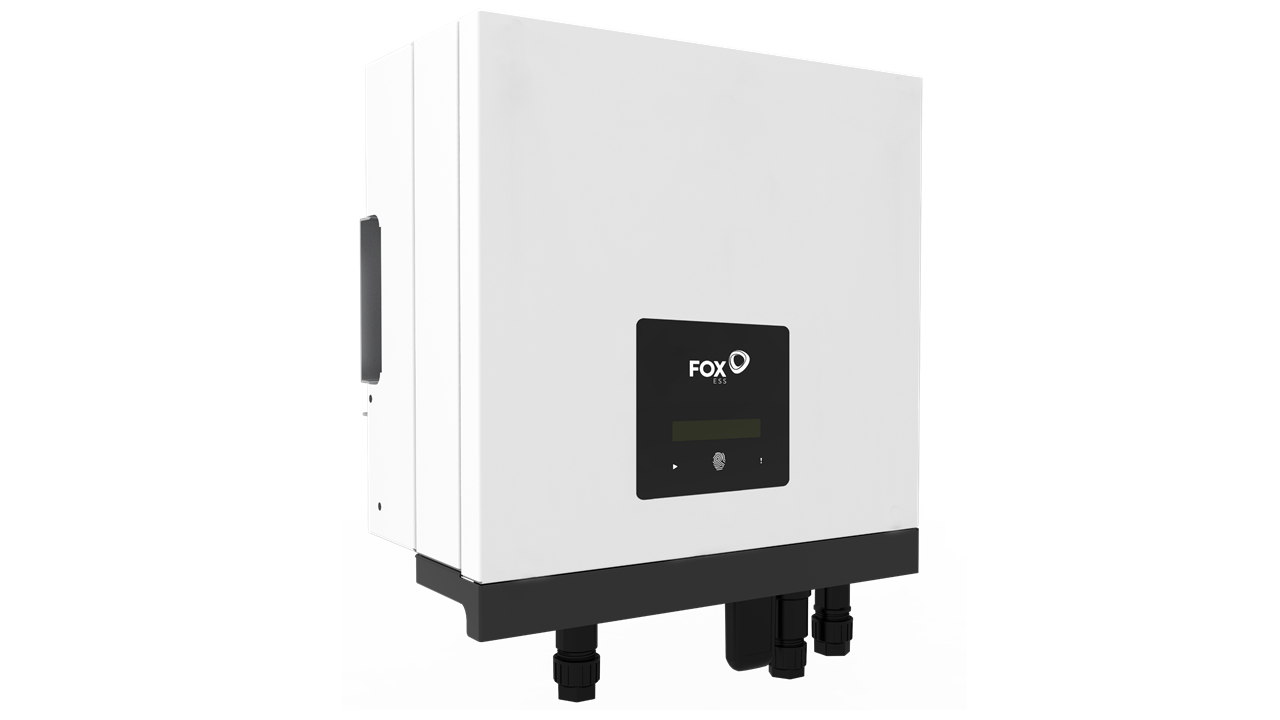

MAXIMIZE ENERGY EFFICIENCY WITH FOX ESS H1-G2 5.0KW HYBRID INVERTER
Discover the simplicity of installation and efficient energy management with the Fox ESS H1-G2 5.0kW hybrid inverter. Save valuable time during installation and enjoy convenient remote monitoring through your smartphone or web portal.
Benefites:
Utilize High Voltage Batteries: Benefit from the advanced technology of high voltage battery systems Fox ESS HV2600-V2, Fox ESS ECS2900, Fox ESS ECS4100, Fox ESS ECS4300, and Fox ESS ECS4800.
IP65 Rated – Suitable for Outdoor Installations: With an IP65 rating, the inverter is suitable for seamless outdoor installations.
Remote Monitoring via Web Portal or Smartphone: Stay connected and monitor your system remotely through a web portal or smartphone.
Expandable Battery Capacity: Easily expand your battery capacity for enhanced energy storage as needed.
Dual MPPT – Ensure Optimal Solar Production: Ensure maximum solar production efficiency with the dual MPPT design.
High Round-trip Efficiency of 97%: Experience a high round-trip efficiency of 97% for effective energy utilization.
Included Accessories: The box includes CT clamps, a meter, and a WiFi stick for added convenience.
Key Features:
The Fox ESS H1-G2 5.0kW Hybrid Charger Inverter is a top-tier device designed to convert solar energy into AC energy for storage in a battery. With a flexible configuration, plug-and-play setup, and built-in fuse protection, it boasts an IP65 rating for outdoor installations.
Four Work Modes:
Self-use (with PV power): Optimize self-consumption by using energy produced by the PV system. Excess energy charges the batteries and is exported to the grid.
Self-use (without PV power): When no PV power is supplied, the battery discharges for local loads first, and the grid supplies power when the battery capacity is insufficient.
Feed-in Priority: Use an external generator to power local loads first, exporting excess power to the grid and charging the battery.
Force Time Use: Ideal for peak and off-peak pricing, allowing users to use off-peak electricity to charge the battery. Flexibly set charging and discharging times and choose whether to charge from the grid. Use stored energy during peak times.
Back-up (EPS) Mode: During grid outages, the system supplies emergency power from PV or a battery to support home loads.
The Fox ESS H1-G2 5.0kW Hybrid Charger Inverter seamlessly integrates with smart Agile tariffs, offering compatibility with Octopus Energy and other Economy 7 energy providers. Additionally, it supports external backup generators for prolonged grid outages.
Fast Delivery Across the UK: Experience the benefits of the Fox ESS H1-G2 5.0kW Hybrid Charger Inverter with quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
Model: H1-5.0-E-G2
BATTERY CONNECTION
Battery Type: Lithium Iron Phosphate (LiFePO4)
Battery Voltage: 85-450V
Max. Charge/Discharge Current: 40A
Communication Interface: CAN(Communicate With Inverter), RS485 (Upgrade BMS)
INPUT PV
Max. Input Power: 6500W
Max. Input Voltage: 600V
Start-up Input Voltage: 75V
Rated Input Voltage: 360V
MPPT Operating Voltage Range: 80-550V
Max. Input Current: 13.5A/13.5A
Max. Short-circuit Current: 15A/15A
No. of Independent MPP Trackers: 2
No. of Strings per MPP Tracker: 1
AC INPUT AND OUTPUT (GRID)
Max. AC Input Power: 10000VA
Max. Input Current (per phase): 45.5A
Rated Output Power: 5000W
Max. Output Apparent Power: 5500VA
Rated Output Current (per phase): 21.7A
Max. Output Current: 23.9A
Rated Grid Voltage: 220-240VAC
Rated Grid Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi: <3% @rated power
EPS OUTPUT (WITH BATTERY)
Max. Output Apparent Power: 6000VA
Peak Output Apparent Power (60sec): 7200VA
Max. Current (per phase): 26.1A
Rated Output Voltage: 220-240VAC
Rated Output Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi (linear load): <2% @rated power
Switch Time: 20ms
EFFICIENCY
Max. Efficiency: 97.80%
Max. Battery Charge Efficiency (PV to BAT) (@full load): 98.5%
Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP65
Size: 430 x 410 x 178mm
Net Weight: 23kg
In the Box:
1 X Fox ESS H1-G2 5.0kW AC Charger Inverter,
1 X Fox ESS H1-G2 5.0kW AC Charger Inverter User's Manual.
