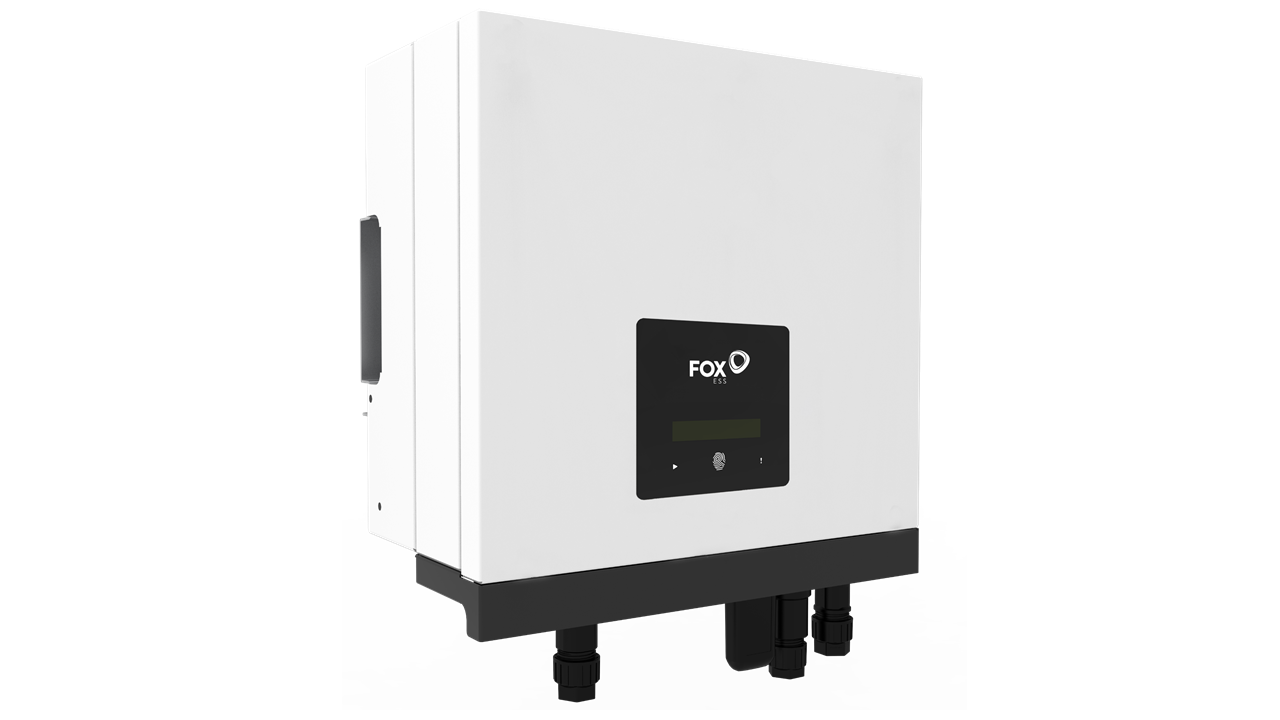

FOX ESS HYBRID H1-G2 6.0KW SINGLE PHASE INVERTER CHARGER

OPTIMIZE ENERGY MANAGEMENT WITH FOX ESS H1-G2 6.0KW HYBRID INVERTER

Experience effortless installation and efficient energy control with the Fox ESS H1-G2 6.0kW hybrid inverter. Save valuable installation time and enjoy convenient remote monitoring through your smartphone or web portal.

Benefites:

Utilize High Voltage Batteries: Benefit from the advanced technology of high voltage battery systems Fox ESS HV2600-V2, Fox ESS ECS2900, Fox ESS ECS4100, Fox ESS ECS4300, and Fox ESS ECS4800.

IP65 Rated – Suitable for Outdoor Installations: With an IP65 rating, the inverter is suitable for seamless outdoor installations.
Remote Monitoring via Web Portal or Smartphone: Stay connected and monitor your system remotely through a web portal or smartphone.
Expandable Battery Capacity: Easily expand your battery capacity for enhanced energy storage as needed.
Dual MPPT – Ensure Optimal Solar Production: Ensure maximum solar production efficiency with the dual MPPT design.
High Round-trip Efficiency of 97%: Experience a high round-trip efficiency of 97% for effective energy utilization.
Included Accessories: The box includes CT clamps, a meter, and a WiFi stick for added convenience.

Key Features

The Fox ESS H1-G2 6.0kW Hybrid Inverter is a top-tier device designed to convert solar energy into AC energy for storage in a battery. With a flexible configuration, plug-and-play setup, and built-in fuse protection, it boasts an IP65 rating for outdoor installations.

Four Work Modes:

Self-use (with PV power): Optimize self-consumption by using energy produced by the PV system. Excess energy charges the batteries and is exported to the grid.
Self-use (without PV power): When no PV power is supplied, the battery will discharge for local loads first, and the grid will supply power when the battery capacity is insufficient.
Feed-in Priority: Use an external generator to power local loads first, exporting excess power to the grid and charging the battery.
Force Time Use: Ideal for peak and off-peak pricing, allowing users to use off-peak electricity to charge the battery. Flexibly set charging and discharging times and choose whether to charge from the grid. Use stored energy during peak times.
Back-up (EPS) Mode: During grid outages, the system will supply emergency power from PV or a battery to support home loads.
The Fox ESS H1-G2 6.0kW Hybrid Charger Inverter seamlessly integrates with smart Agile tariffs, offering compatibility with Octopus Energy and other Economy 7 energy providers. Additionally, it supports external backup generators for prolonged grid outages.
Fast Delivery Across the UK: Experience the benefits of the Fox ESS H1-G2 6.0kW Hybrid Charger Inverter with quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).

Detailed specifications

Model: H1-6.0-E-G2
BATTERY CONNECTION
Battery Type: Lithium Iron Phosphate (LiFePO4)
Battery Voltage: 85-450V
Max. Charge/Discharge Current: 40A
Communication Interface: CAN(Communicate With Inverter), RS485 (Upgrade BMS)
INPUT PV
Max. Input Power: 7800W
Max. Input Voltage: 600V
Start-up Input Voltage: 75V
Rated Input Voltage: 360V
MPPT Operating Voltage Range: 80-550V
Max. Input Current: 13.5A/13.5A
Max. Short-circuit Current: 15A/15A
No. of Independent MPP Trackers: 2
No. of Strings per MPP Tracker: 1
AC INPUT AND OUTPUT (GRID)
Max. AC Input Power: 12000VA
Max. Input Current (per phase): 54.5A
Rated Output Power: 6000W
Max. Output Apparent Power: 6600VA
Rated Output Current (per phase): 26.1A
Max. Output Current: 28.7A
Rated Grid Voltage: 220-240VAC
Rated Grid Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi: <3% @rated power EPS OUTPUT (WITH BATTERY) Max. Output Apparent Power: 6000VA Peak Output Apparent Power (60sec): 7200VA Max. Current (per phase): 26.1A Rated Output Voltage: 220-240VAC Rated Output Frequency: 50/60Hz Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) THDi (linear load): <2% @rated power Switch Time: 20ms EFFICIENCY Max. Efficiency: 97.80% Max. Battery Charge Efficiency (PV to BAT) (@full load): 98.5% Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00% Operating Temperature: -25 ~ +60°C Protection Degree: IP65 Size: 430 x 410 x 178mm Net Weight: 23kg In the Box 1 X Fox ESS H1-G2 6.0kW Hybrid Inverter Charger, 1 X Fox ESS H1-G2 6.0kW Hybrid Inverter Charger User's Manual. Frequently Asked Questions Don't know an answer to your question? Call us on 020 8064 0335 or email [email protected].
