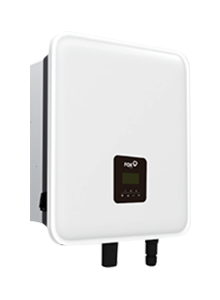

UNLOCK MAXIMUM EFFICIENCY WITH THE FOX ESS KH9 SINGLE PHASE HYBRID INVERTER
The Fox ESS KH9 is a sophisticated 9kW single-phase IP65 full hybrid inverter, designed to elevate your solar energy experience. With refined British English spelling and grammar, plus enhanced writing style, here’s your improved text:
Cutting-Edge Technology: The Fox KH9 utilises high-voltage batteries, maximizing round-trip efficiency and ensuring optimal performance for your solar system.
Effortless Installation: Enjoy seamless installation with the Fox ESS KH9, saving valuable time on site and getting your system up and running quickly.
Convenient Remote Management: Control and monitor your system effortlessly with Fox ESS Cloud, enabling easy remote support and management from anywhere.
▼ HYBRID FOX ESS 9KW K SERIES FEATURES
Durable Outdoor Design
The Fox ESS KH9 boasts a durable outdoor design, expertly crafted to withstand various environmental conditions with ease. With its IP65 rating, this hybrid inverter is specifically tailored for outdoor installations, guaranteeing resilience and dependability in any setting. Whether enduring extreme weather or challenging climates, you can trust that the Fox ESS KH9 will deliver consistent performance and reliability.
Convenient Remote Monitoring
Enjoy effortless monitoring and management of your energy system with the Fox ESS KH9’s convenient remote monitoring capabilities. Track your system’s performance and status seamlessly through a user-friendly web portal or smartphone application. This intuitive interface provides real-time insights, offering peace of mind and efficient management from anywhere, at any time.
Expandable Battery Capacity
Adapt to evolving energy needs with the Fox ESS KH9’s expandable battery capacity feature. Easily augment your battery capacity as required, ensuring that your energy system grows alongside your changing requirements. This flexibility allows you to customise your energy setup to suit your unique needs, maximising efficiency and performance.
Optimized Solar Production
Maximise your solar energy output with the Fox ESS KH9’s optimised solar production capabilities. Equipped with triple maximum power point trackers (MPPT), this hybrid inverter ensures optimal performance even in varying conditions. Whether it’s cloudy days or fluctuating sunlight, the Fox ESS KH9 guarantees efficient energy production, maximising your system’s output and reliability.
Impressive Efficiency Rating
Attain unparalleled efficiency with the Fox ESS KH9’s remarkable 97% efficiency rating. This exceptional efficiency not only maximises energy output but also guarantees substantial long-term savings. By minimising energy wastage and maximising output, the Fox ESS KH9 offers a sustainable and cost-effective energy solution for both residential and commercial applications.
Fast Delivery Across the UK
Experience the benefits of the Fox ESS 8kW K Series Single Phase Hybrid Inverter with quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
▼ HYBRID FOX ESS 9KW K SERIES SPECIFICATIONS
Battery Voltage Range [V] 9,000 W
Recommended Battery Voltage [V] 300VDC
Max. Charge/Discharge Current [A] 50
Communication Interfaces CAN / RS485
Reverse Connect Protection YES
INPUT PV (FOR KH ONLY)
Max. Recommended DC Power [W] 13,500
Max. DC Voltage [V] 600
Nominal DC Operating Voltage [V] 360
MPPT Voltage Range [V] 80 ~ 500
Start-up Voltage [V] 75
Strings Per MPP Tracker 1
OUTPUT AC
Nominal AC Power [VA] 9000
Max. Apparent AC power [VA] 9900
Rated Grid Voltage (AC Voltage Range) [V] 220 / 230 / 240(180 ~ 270 )
Rated Grid Frequency [Hz] 50 / 60, ±5
Nominal AC Current [A] 39.1
Max. AC Current [A] 43.0
INPUT AC
Max AC Power [VA] 18000
Max. AC Current [A] 78.3
EPS OUTPUT (WITH BATTERY)
Max. EPS Power [VA] 9000
Max. EPS Current [A] 40.9
Switch Time [ms] <20
EFFICIENCY
MPPT Efficiency [%] 99.90
Euro-efficiency [%] 97.40
Max. Efficiency [%] 97.80
Max. Battery Charge Efficiency (PV to BAT) (@Full Load) [%] 98.50
Max. Battery Charge / Discharge Efficiency (BAT to AC) (@Full Load) [%] 97.00
PROTECTION
PV Reverse Polarity Protection YES
Battery Reverse Protection YES
Anti-islanding Protection YES
Output Short Protection YES
Leakage Current Protection YES
Insulation Resistor Detection YES
Over-current Protection / Over-temperature Protection YES
POWER CONSUMPTION
Standby Consumption [W] (Idle) <15
DIMENSION
Dimensions (W * H * D) [mm] 450*527*208
Cooling Concept Natural
Topology Non-isolated
Communication Meter (Optional), WIFI, 4G (Optional), DRM, USB, CT, RS485
LCD Display Backlight 16*4 Character
* More technical characteristics are available on demand and customized.
[1] The maximum generating power of each pv string is limited to 3300 watts
▼ HYBRID FOX ESS 9KW K SERIES WHAT'S IN THE BOX
Inverter (A): The central component of your solar setup, ensuring efficient energy conversion.
Bracket (B): Provides sturdy support for mounting your inverter securely.
WiFi/GPRS/LAN Module (Optional) (K): Enhances connectivity options for remote monitoring and control.
PV Connectors (Only for KH) (C): Eight connectors (four positive, four negative) for seamless integration of photovoltaic panels.
Meter (Optional) (L): Provides valuable insights into energy consumption and system performance.
PV Pin Contacts (Only for KH) (D): Eight pin contacts (four positive, four negative) for secure connections to photovoltaic panels.
CT Extension Connector (M): Facilitates the extension of current transformer connections for enhanced monitoring capabilities.
AC Connectors (E): Two connectors for connecting your inverter to the AC power supply.
Hexagonal Screws (N): Three screws for secure installation of components.
Expansion Tubes & Expansion Screws (F): Six tubes and screws for expansion and reinforcement of mounting structure.
Expansion Screws (For Ground Installation) (O): Four screws specifically designed for ground installation.
Earth Terminal (G): Ensures proper grounding for safe and efficient operation.
Battery Connectors (P): Two connectors (one positive, one negative) for connecting batteries to your system.
Communication Connector (H): Facilitates communication between components for seamless system integration.
Battery Pin Contacts (Q): Two pin contacts (one positive, one negative) for secure connections to batteries.
Product Manual (I): Comprehensive guide providing instructions and information for installation and operation.
CT (with 10m Cable) (R): Current transformer with a 10-meter cable for monitoring energy flow within your system.
Please watch the Fox ESS 9kW K Series Single Phase Hybrid Inverter Video:
