Description

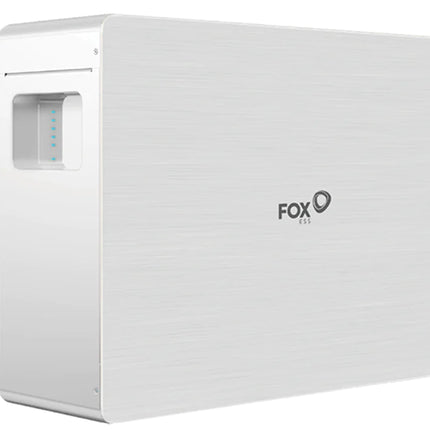

Part No: FE-LV52 Storage Systems – Li-ion Battery Pack
Fox LV52
The LV52 are high-performance, scalable, low-voltage battery storage modules. Rated life span of more than 6,000 cycles. Storage capacity is expandable to 42.56Wh. 95% charge/discharge efficiency. Easy, plug and play installation.
90% Depth of Discharge
Wide Temperature Tolerance
Easy Installation
≥6000 Life Cycles
CAN/RS485 Communication
Low Voltage
Don’t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it’s 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
The LV52 and the LV54 ARE compatible with eachother.
When installing 2-4 batteries, two combiner box’s will be required.
The LV52 is not compatible with the LV5200
Please note: The CAN cable currently shipped with the Fox ESS LV54 battery is made-up at one end only (the battery end). The Installer will need to make up the cable at the inverter end.
Pending Documents: Warranty.
Supplier Part No: LV52
Weight: 54 kg
Battery Type: Lithium Ion
Nominal Energy: 5120 Wh
Depth of discharge: 90.00 %
Voltage: 51 V
Continuous Discharge Rate (Normal Use): 5120 W
Maximum Discharge Rate (5 Minutes): 5120 W
Surge Discharge Rate (15 Seconds): 7500 W
Maximum Charge Rate (5 Minutes): 5120 W
