Description
Part No: GIV-BAT-5.1-G3 Storage Systems – Li-ion Battery Pack

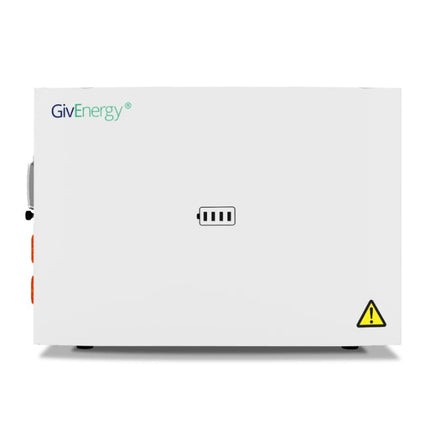

GivEnergy 5.12 kWh Eco Li-Ion Battery
State-of-the-Art Management System
The newly 5.12kWh battery pack is our most new released versatile battery. Comes with smaller size and higher capacity, it can be installed in a wider range of locations due to its compact design and can either be wall mounted or floor stood. This battery is primarily used in a modular way ensuring the system can grow with the needs of the consumer. Utilising lithium iron phosphate technology, our batteries are extremely safe and can be installed in a wide range of locations. The battery chemistry does not contain any Cobalt, making it non-flammable and the battery pack is 99% recyclable
Features:
Using the latest LiFePO4 prismatic cell technology
Robust Multi Point Monitoring BMS Pre Installed
Technical:
5120Wh/100Ah capacity
100% DoD
57.6V max charging voltage
60A max charge/discharge current
12 years warranty
Please note:
Givenergy online portal login is required to fully commission this system. If You do not already have a login, please contact GivEnergy before going to site to install!
You need to attend GivEnergy Installers Training in order to install this product. Please check with GivEnergy for details. If fitted by non-trained installer the Warranty will be VOID!
Supplier Part No:
GIV-BAT5.12 G3
Weight:
48 kg
Battery Type:
Lithium Ion
Nominal Energy:
5120 Wh
Depth of discharge:
100.00 %
Voltage:
51 V
Continuous Discharge Rate (Normal Use):
3072 W
Maximum Discharge Rate (5 Minutes):
3072 W
Surge Discharge Rate (15 Seconds):
3072 W
Maximum Charge Rate (5 Minutes):
3072 W
