Description
Part No: GIV-AIO-13.5 Storage Systems – Li-ion Battery Pack

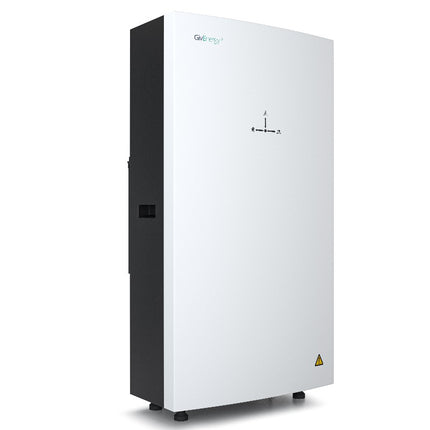

GivEnergy All In One
Primarily working as an on grid system, the All in One can deliver 7kW of peak power into the home on top of any solar generation. Complete with a substantial 13.5kWh useable battery pack.
Grid Services Ready
Energy suppliers and aggregators are offering payments for end users that can reduce their electrical consumption at certain times.
Whole House Backup
Whole house backup acts as a UPS in the event of power failure. This allows operation OFF grid until grid supply is restored.
Backup Requires GIV-AIO-GATEWAY
Flexible Rate Tarif
Charge the battery off peak where its cleaner, greener and less costly then discharge the battery during peak times for maximum saving
Effective May 1st, 2024, please note that the GIV-AIO-GATEWAY is now only required for home backup purposes. When installing without a Gateway please use GIV-GM120CT This energy is only required when installing without a gateway.
Please note:
Givenergy online portal login is required to fully commission this system. If you do not already have a login, please contact GivEnergy before going to site to install!
You need to attend GivEnergy Installers Training in order to install this product. Please check with GivEnergy for details. If fitted by non-trained installer the Warranty will be VOID!
Givenergy system must be connected to the internet to benefit from full warranty services
Supplier Part No:
GIV-AIO-13.5-AC(5kW)
Weight:
173.7 kg
Battery Type:
Lithium Ion
Nominal Energy:
13500 Wh
Depth of discharge:
100.00 %
Voltage:
307 V
Continuous Discharge Rate (Normal Use):
7675 W
Maximum Discharge Rate (5 Minutes):
7675 W
Surge Discharge Rate (15 Seconds):
7675 W
Maximum Charge Rate (5 Minutes):
7675 W
