EXPERIENCE RENEWABLE POWER ANYWHERE WITH MISSOURI WIND & SOLAR
System Components:
Wind Turbine Generator:
Missouri Freedom™ 2000W Falcon 3 Blade Wind Turbine and VRD Classic MPPT Controller Kit,
9m Wind Turbine Guyed Tower for flexible installation.
Solar Array: 8x or 16x JA Solar 405W Solar Panels,
Battery Bank: 2x or 4x PYLONTECH US5000 4.8kWh LiFePO4 Batteries,
Power Inverter: SOLIS S5-EH1P5.0K-L 5.0kW Hybrid Energy Storage Inverter,
Wind Turbine Tower: 9m Guyed Tower.
System Operation:
The Missouri Freedom™ 2000W Falcon 3 Blade Wind Turbine, strategically mounted on the ground with the Guyed Tower, generates robust 3-phase AC electricity. This power undergoes processing through an AC/DC rectifier, transforming it into direct current. The VTD Classic MPPT Charge Controller efficiently charges the Battery Bank, ensuring a steady power supply. The Hybrid Inverter then draws electricity from the Battery Bank, converting it into standard household AC electricity, catering to the needs of appliances and electric tools in homes or businesses.
Global Impact by Missouri Wind and Solar:
Headquartered in Seymour, Missouri, USA, Missouri Wind and Solar has established an impressive global presence, serving diverse clientele with their cutting-edge wind turbines. From supplying turbines to an orphanage in Jamaica to supporting an elementary school in Vietnam, the company has showcased the adaptability and reliability of its solutions. Following a devastating hurricane in Puerto Rico, Missouri Wind and Solar played a pivotal role in restoring energy systems. Their turbines now power a remote radio station in Alaska, emphasizing the versatility and resilience of their technology. Winning a substantial federal contract with the US Army highlights their commitment to large-scale projects, although the majority of their clients are DIY enthusiasts. Missouri Wind and Solar remains dedicated to fostering small-scale alternative energy initiatives.
▼ GRID-CONNECTED HYBRID WIND & SOLAR POWER SYSTEM FEATURES
MISSOURI FREEDOM™ 2000W 48VDC WIND TURBINE GENERATOR from Missouri Wind and Solar LLC (Seymour, Missouri, USA) is here to help you outfit your house with clean, efficient, and economical wind power. No matter your expertise, this system is a practical solution for your power needs. The wind Turbine Generator is built around the 2000-watt Missouri Freedom™ Falcon 3 blades wind turbine. The turbine’s rotor diameter is 205cm. The turbine features three aluminum blades designed to minimize noise and maximize RPMs. The Freedom permanent magnet generator (PMG) delivers unbeatable efficiency. To monitor and adjust the flow of energy from the turbine to the battery, included VRD Classic MPPT Charge Controller makes the task simple. The 3-phase brake switch allows you to set your turbine to run, spin, or brake. our wind turbine, so expanding your system later on is hassle-free.
THE FALCON WIND TURBINE BLADES features:
* Smooth, fast, and well balanced.
* All parts are laser cut to exact tolerances for high quality operation and appearance.
* All high tensile strength aluminum and 1018 steel construction will withstand severe weather conditions! Tested to 95 MPH winds
* Extremely large pitches on aluminum blades act like an anchor, and don’t allow the blades to cut through the wind. Ours are low pitched for best performance.
* The gull wing design has eliminated noise and cascade failure that all other aluminum blades suffer from. The more wind, the higher the RPM keeps increasing non-stop.
* These extra large blades are designed for high torque.
MISSOURI FREEDOM WIND TURBINE COMPONENTS are hot-dipped galvanized with zinc-plated hubs! Will not rust. No need for painting or special coating for up to 50 years under normal conditions. Wind turbine for home, business, or remote use with the Freedom Permanent Magnet Generator™ (PMG) – 2000 Watts plus potential power!
1000 FEET 12/3 SJOO 3 PHASE WIND TURBINE CABLE is exactly what you need for a three-phase Freedom permanent magnet alternator of Falcon 2000-watt model wind turbine. AC medium output runs to the bridge rectifier installed in the control panel with outputs of 48 volts. This cable features 99.9% pure stranded copper for maximum conductivity. Fine-stranded for flexibility and superior conductivity, giving you the most power for low voltage power transmission. The premium-grade black rubber jacket provides excellent resistance to abrasion, water, and oil and is highly flexible, even in low temperatures.

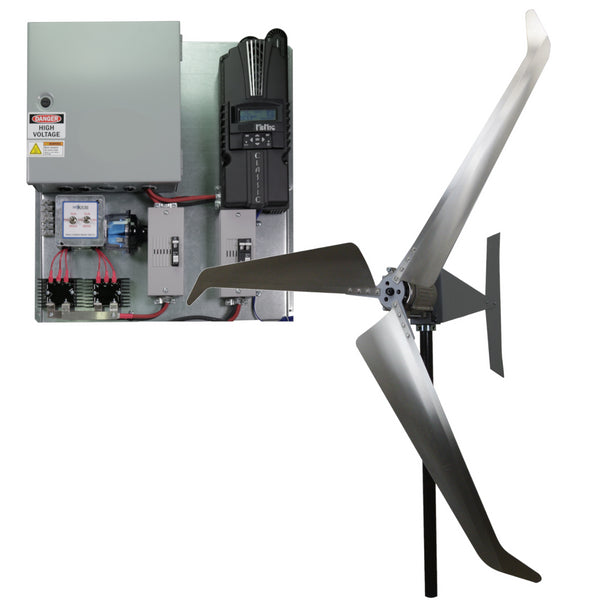

CONTROL PANEL WITH VRD CLASSIC MPPT CHARGE CONTROLLER features:
* Simply one of the most efficient Wind MPPT controllers on the market made in the USA
* The Midnite Classic MPPT Charge controller can nearly double the output of your wind turbine over standard or PWM charge controllers by using a 16 point customization MPPT power curve. It’s like having a sports car with 16 automatic gear changes to get you the most power at any speed!
* All components are internally grounded to the board which allows for easy grounding, saving you hours of time and frustration.
* Two breaker boxes boxes pre-wired with the wind input breaker and battery output breaker.
* Our custom breaker box houses a MidNite 100 amp double pole breaker on the battery side of the controller for safety that also serves as a convenient disconnect
* Plug and play: Simply bolt or screw the unit into the wall and make your wind turbine and battery bank connections (no crimping or heat shrink needed, just insert and tighten down)
* Pre-wired battery temperature sensor ensures batteries do not overheat in charging cycle (peel the tape and stick to one of your batteries)
3-4 WORKING DAY DELIVERY within the UK (longer to the Highlands, islands, and Northern Ireland).
▼ GRID-CONNECTED HYBRID WIND & SOLAR POWER SYSTEM SPECIFICATIONS
Main components:
WIND & SOLAR POWER SYSTEM includes:
1x MISSOURI FREEDOM™ FALCON 3 BLADES 2000W WIND TURBINE;
1x 12/3 SJOO 3 PHASE WIND TURBINE CABLE 30.5m (100ft);
1x All IN One PRE-WIRED MISSOURI VRD MIDNITE CLASSIC CHARGE CONTROLLER BOARD,
8x or 16x JA SOLAR 405W SOLAR PANELS,
2x or 4x PYLONTECH US5000 4.8KWH LIFEPO4 BATTERY;
1x SOLIS HYBRID 5000W 48V PURE SINE WAVE INVERTER;
1x 9m WIND TURBINE GUYED TOWER.
MISSOURI FREEDOM FALCON 3 BLADES 2000W WIND TURBINE
Origin: USA
Rated power: 2000W
Working voltage: 48VDC
Wind rotor diameter: 2.05m (80.5 inches)
Start-up wind speed: 2.7m/sec
Cut-off wind speed: 55.9m/sec
Alternator: Permanent Magnet Generator™
Blade material: High tensile strength aluminum and 1018 steel
Turbine weight: 22.2kg
VRD CLASSIC MPPT CHARGE CONTROLER
Origin: USA
Type: Wind
Working voltage: 48VDC
Compatible battery: Lithium, Lead-Aced and AGM
Control: Dual microprocessor
Wind turbine connection: Rectifier for 3ph output wind turbine connection 440A
Divert load: 900W
Turbine weight: 20.4kg
JA SOLAR 405W MONO PERC HALF-CELL MBB BLACK FRAME MC4 SOLAR PANEL
Rated (Peak) Power (Wp): 405W in Standard 1000w/m2 solar light
Open Circuit Voltage (Voc): 37.23V (Vmp =31.21V)
Short Circuit Current (Isc): 13.87A (Imp = 12.99A)
Efficiency: 20.7%
Cell Type: Monocrystalline Silicon
Connector Type: MC4
Net Weight: 21.5 KG
Size: 1722 X 1134 X 30mm
PYLONTECH US5000 4.8KWH LIFEPO4 BATTERY
Battery Type: Lithium-Ion (LiFePO4)
Nominal Capacity: 4.8kWh
Nominal Voltage: 48V
Charge/discharge cuttent (recommended): 50A
Charge/discharge cuttent (maximum): 100A
Depth of Discharge: 95%
Cycle Life: >6000 cycles
Scalability: Parallel capability of up to 16 units
Net Weight: 38g
Size: 442 * 420 * 132mm
SOLIS 5.0KW SINGLE PHASE HYBRID 5G INVERTER WITH DC SWITCH
Model: S5-EH1P5.0K-L
Battery Type: Lithium-Ion / Lead-acid
Battery Voltage: 42-58V
Max. Charge/Discharge Current: 100A
Max. Charge/Discharge Power: 5000W
INPUT PV
Max. Input Power: 8000W
Max. Input Voltage: 600V
Start-up Input Voltage: 120V
Rated Input Voltage: 330V
MPPT Operating Voltage Range: 90-520V
Max. Input Current: 15A/15A
Max. Short-circuit Current: 22.5A/22.5A
No. of Independent MPP Trackers: 2
INPUT AC (GRID SIDE)
Input Voltage:187-265V
Max. Input Current:34.5A / 33A
OUTPUT AC (GRID SIDE)
Rated Output Power: 5000W
Max. Output Apparent Power: 5500VA
Rated Output Current: 16.4A / 15.7A
Rated Output Current: 22.8A / 21.7A
Max. Output Current: 25A
Rated Grid Voltage: 220-230VAC
Power Factor:>0.99 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi:<2% @rated power
OUTPUT AC (BACK-UP)
Rated Output Power: 5000W
Max. Output Apparent Power: 7000VA, 10sec
Rated Output Current: 23A / 22A
Rated Output Voltage:220-230VAC
THDi (linear load): <2%
Switch Time:20ms
EFFICIENCY
Max. Efficiency: >97.1%
Operating Temperature:-25 ~ +60°C
Protection Degree:IP65
Size: 333 x 249 x 505mm
Net Weight:18.3kg
OPTION 3: WIND TURBINE GUYED TOWER 9m
Tower height: 9m
Material: Galvanized steel
Guy ropes: Pre-fabricated Stainless Steel Guy Ropes with Ground Anchors
Tower Foot Base: Hinging Tower Base
Tower Diameter: 48.3mm OD Tube (4mm Wall Thickness)
▼ WIND POWER SYSTEM IN THE BOX
1x MISSOURI FREEDOM™ FALCON 3 BLADES 2000W 48VDC WIND TURBINE GENERATOR- 1 X Carton,
1x CONTROL PANEL WITH VRD CLASSIC MPPT CHARGE CONTROLLER AND DUMP LOAD- 1 X Carton,
8x or 16x JA SOLAR 405W SOLAR PANELS- 1 X Double Pallet,
2x or 4x PYLONTECH LIFEPO4 US5000 4.8KWH BATTERY BANK- 1 X Pallet,
1x SOLIS HYBRID 5000W 48V PURE SINE WAVE INVERTER – 1 X Carton,
1x WIND TURBINE ROOF TOWER 9m – 1 X Carton (3x 3m SCAFFOLD PIPE 48.3mm to be purchased locally).
USER MANUALS X 1 Set
▼ WIND POWER SYSTEM FAQ
Don’t see an answer to your question? Call us on 020 8064 0335 or email [email protected]
Click on ► to watch All in One Classic MPPT Board for Wind Turbines
