UNLOCK SOLAR POWER ANYWHERE WITH JA SOLAR 365W MONO SOLAR PANELS & RENUSOL CONSOLE+ GROUND MOUNTS KIT
Discover the perfect solution for your stationary power needs with the JA Solar 365W Mono Solar Panels coupled with the reliable Renusol ConSole+ Ground Mounts. Ideal for home, garden offices, sheds, or garages, this ground-mounted kit offers exceptional performance and durability, making it an excellent alternative to roof-mounted solar panels.
THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 2
Key Features:
High-Efficiency PERC Module: The multi-busbar Half-Cut Mono Cell technology with passivated backside (PERC) ensures increased efficiency and yield.
Durable, Dust & Water Resistant: JA Solar’s monocrystalline modules provide an excellent response in extreme temperature conditions and low solar radiation. The advanced, textured glass surface offers resistance to sea salt, ammonia, dust, or sand.
Reliability with Half-Cut Cell Technology:
Lower internal current, lower hot spot temperature.
Limited cell crack risk to smaller areas.
Innovative symmetrical module design for better shading tolerance.
Handles heavy snow load up to 5400Pa and increased wind load up to 2400Pa.
Superior Warranty: Enjoy peace of mind with a 12-year product warranty and a 25-year extra linear power output warranty.
In the Box:

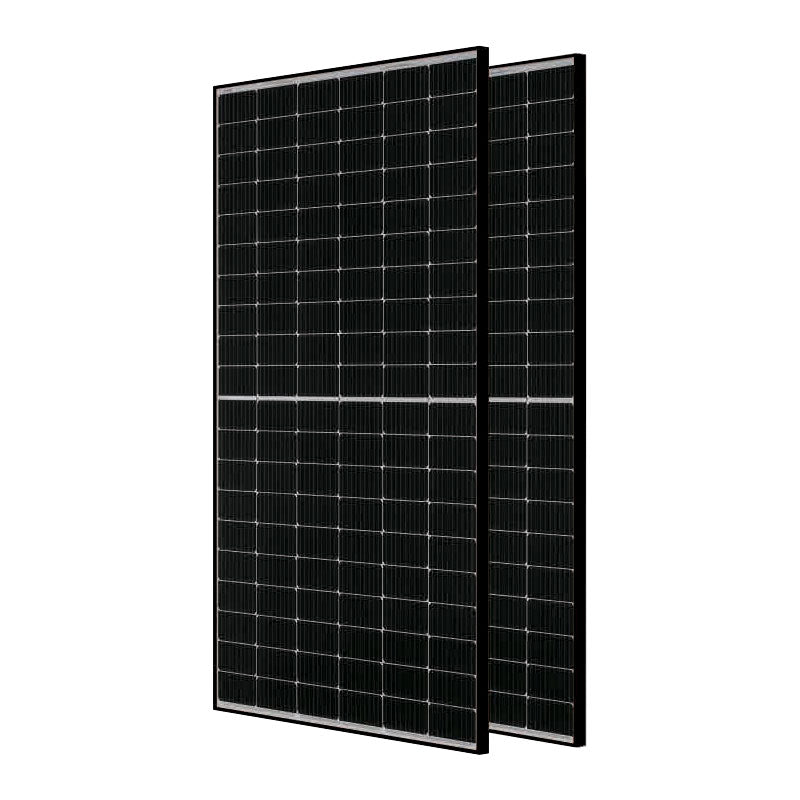

JA Solar 365W Monocrystalline Solar Panel
JA Solar 365W Monocrystalline Solar Panel User Manual
ConSole+ Ground Mount
Shipping: 2-3 WORKING DAY SHIPPING if ordered by 5 PM on a working day (longer to the Scottish Highlands, islands, and Northern Ireland).
Invest in the future of sustainable energy with the JA Solar 365W Mono Solar Panels & Renusol ConSole+ Ground Mounts Kit, providing reliable, efficient, and environmentally friendly power solutions for your space.
Detailed specifications:
Rated (Peak) Power (Wp): 365W in Standard 1000w/m2 solar light
Part Number: JAM60S-21-365-MR-AB-MC4-SM
Open Circuit Voltage: 41.13V (Vmp =33.96V)
Short Circuit Current: 11.30A (Imp = 10.75A)
Efficiency: 19.6%
Cell Type: Monocrystaline Silicon
Connector Type: MC4
Certification: CE IEC ISO OHSAS
Net Weight: 20.2 KG
Size: 1769 X 1052 X 30 mm
Mounting hole gap: 1006 mm
Discover the innovation of ConSole+ Ground Mounts, an optimal solution for ground-mounted PV modules, even on unstable terrain and without the need for ground fixation. With a 15-degree angle, ConSole+ ensures an ideal position for solar panels, providing efficiency and stability.
Key Features of ConSole+ Ground Mounts:
Quick and Simple Installation: No special equipment or drilling needed; ConSole+ is securely fixed with ballast, making it perfect for unstable ground installations.
Versatile, Secure, and Easy Handling: Navigate various terrains with ease while maintaining a secure and stable foundation for your solar modules.
Cost-Effective: Experience lower installation costs compared to traditional roof-mounted solar panels, making solar energy more accessible.
Environmentally Friendly Design: Easily remove after use with minimal dismantling costs, leaving a minimal environmental footprint.
Proven Performance: With nearly 20 years of successful use, ConSole+ modules have established a reputation for being simple, fast, and safe.
Detailed Specifications:
Applications: Suitable for flat roofs, open spaces, gardens, pavement around the house, landfills, and more.
Roof Slope: Maximum 5° without additional measures.
PV Module Tilt: 15° for optimized solar exposure.
PV Module Length: 1550 mm – 2400 mm.
PV Module Width Between Mounting Holes: 895 mm – 1015 mm (1085 mm with elongation rails).
Material: HDPE, aluminium, and stainless steel for durability.
Ambient Temperature: -30°C to +50°C.
Dimensions: Width: 1765mm, Depth: 1048 mm, Height: 35mm.
Weight: 8kg.
Experience the Reliability of ConSole+ Ground Mounts with a 10-Year System Warranty.
Documents available for download:
Renusol Console+ Installation Manual
Renusol Console+ Data Sheet
