UNLOCK SOLAR POWER ANYWHERE WITH JA SOLAR 380W MONO SOLAR PANELS & RENUSOL CONSOLE+ GROUND MOUNTS KIT
Discover a reliable solution for your stationary power station needs with the JA Solar 380W Mono MBB Percium Half-Cell Black Short Frame QC4 solar panel and Renusol ConSole+ Ground Mounts. This ground-mounted kit is perfect for various applications, including home use, garden offices, sheds, or garages, providing an alternative to roof-mounted solar panels.
THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 3
Key Features:
High-Efficiency PERC Module: The multi-busbar Half Cut Mono Cell technology with PERC enhances efficiency and yield, delivering a powerful 380W monocrystalline module.
Durable and Resilient: JA Solar’s monocrystalline modules are designed to perform exceptionally well in extreme temperature conditions, low solar radiation, and challenging environments. The textured glass surface provides resistance to sea salt, ammonia, dust, and sand.
Reliability with Half-Cut Cell Technology: The innovative symmetrical module design reduces the risk of cell cracks, limits internal current, and enhances shading tolerance. It can withstand heavy snow loads up to 5400Pa and increased wind loads up to 2400Pa.
Superior Warranty: Benefit from a 12-year product warranty and an impressive 25-year extra linear power output warranty, ensuring the longevity of your solar investment.
In the Box:

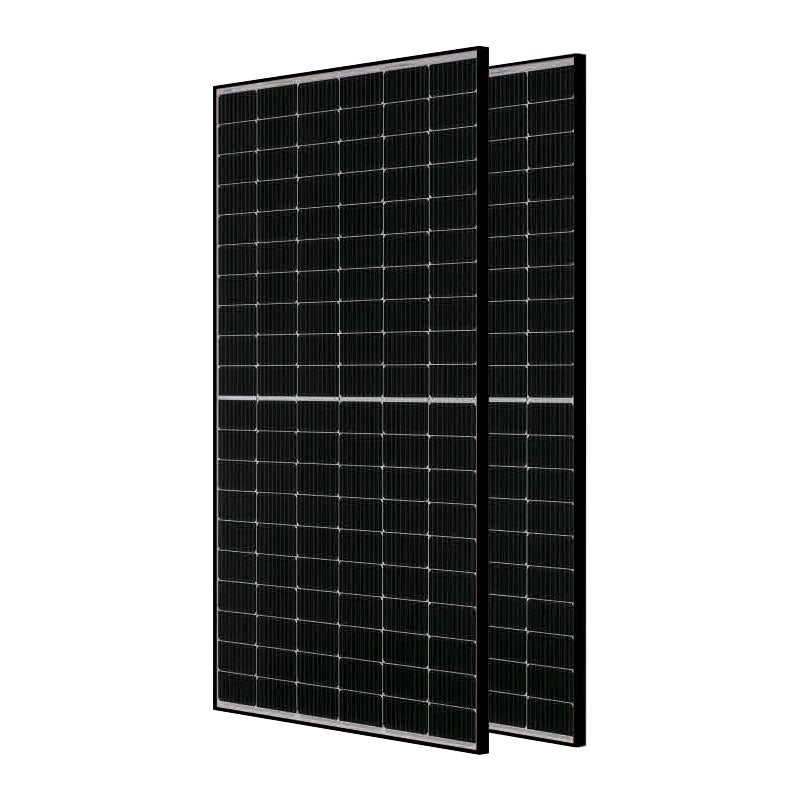

JA Solar 380W Monocrystalline Solar Panel
JA Solar 380W Monocrystalline Solar Panel User Manual
ConSole+ Ground Mount
Fast and Convenient Delivery: Experience the convenience of 2-3 working day shipping when you order by 5 PM on a working day. Please note that delivery times may be longer for the Scottish Highlands, islands, and Northern Ireland.
Choose the JA Solar 380W Mono MBB Percium Half-Cell Black Short Frame QC4 Panels & Renusol ConSole+ Ground Mounts Kit for a reliable, efficient, and durable solar solution that suits your diverse energy needs.
Detailed specifications:
Rated (Peak) Power (Wp): 380W in Standard 1000w/m2 solar light
Open Circuit Voltage: 41.62V (Vmp =34.77V)
Short Circuit Current: 11.47A (Imp = 10.93A)
Efficiency: 20.4%
Cell Type: Monocrystaline Silicon
Connector Type: QC4
Certification: CE IEC ISO OHSAS
Net Weight: 20.5 KG
Size: 1769 X 1054 X 35 mm
Mounting hole gap: 1002 mm
ConSole+ Ground Mounts offer a seamless and secure solution for ground-level installation of PV modules, even on unstable ground without the need for fixed foundations. With a 15-degree angle, these mounts provide optimal positioning for solar energy generation.
Simple Installation Process:
No need for special equipment or drilling; ConSole+ is anchored solely by ballast, making it ideal for unstable ground conditions.
Easy handling, flexibility, and security are hallmarks of the ConSole+, ensuring a straightforward and efficient installation process.
Cost-effective alternative to roof-mounted solar panels, reducing overall installation expenses.
Environmentally friendly and easily removable after use, with low dismantling costs.
Proven reliability with nearly two decades of positive customer experiences. Backed by a 10-year system warranty.
Detailed Specifications:
Applications: Suitable for flat roofs, open spaces, gardens, pavement around the house, landfills, and more.
Roof Slope: Maximum 5° without additional measures.
PV Module Tilt: Fixed at a 15° angle for optimal solar exposure.
PV Module Length: Accommodates modules ranging from 1550mm to 2400mm.
PV Module Width: Mounting hole spacing of 895mm to 1015mm (1085mm with elongation rails).
Material: Constructed with HDPE, aluminum, and stainless steel for durability.
Ambient Temperature: Operational in temperatures ranging from -30°C to +50°C.
Dimensions: Width: 1765mm, Depth: 1048mm, Height: 35mm.
Weight: Lightweight at 8kg for ease of handling.
Choose ConSole+ Ground Mounts for a reliable, environmentally conscious, and cost-effective solution for ground-level PV module installation.
