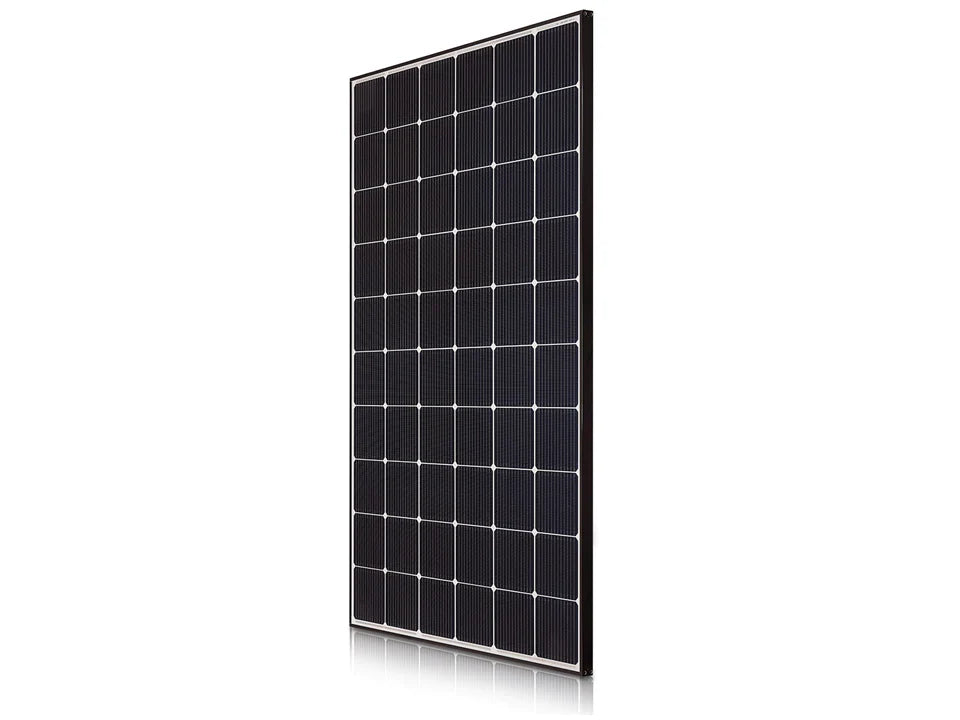

EXPERIENCE RELIABLE SOLAR ENERGY WITH REC 405W MONO TWINPEAK 5 SERIES BLACK FRAME SOLAR PANELS
Elevate your home, farm, or garden office with solar power using the REC 405W Mono TwinPeak 5 Series Black Frame solar panels. The REC 405W TwinPeak 5 Series Black Frame MC4 (REC TWINPEAK 5 SERIES) solar panel is a 405W monocrystalline premium PV module with 132 Half-Cell technology. REC offers a high-efficiency module with mono c-Si-type cells, which, thanks to its half-cell configuration, offers high power output, a better temperature coefficient, lower efficiency loss against shading, and higher resistance to mechanical loads. REC solar panels are made in Singapore and come with a 20-year product warranty and a 25-year power warranty.
Ideal for off-grid photovoltaic solar energy installations, these panels stand out for their incredible quality/price ratio and their great power in a small size
THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 2
Key Features:
SUPER HIGH EFFICIENCY PERC MODULE: Assembled with 132 c-Si-type cells, the half-cell configuration of the modules offers the advantages of higher power output per m2. Panels with REC TwinPeak 5 technologies have a unique “twin” design, enabling them to generate electricity even when partially shaded. Over time, you get a higher yield from your installation.
REDUCES OVERALL COST, SHORTENING THE PAYBACK TIME: By delivering more power per square meter, you need fewer REC TwinPeak 5 panels to generate the same power. This means quicker installation times and the need for fewer components such as clamps and racks, reducing overall costs and shortening the payback time.
SUPER STRONG FRAME DESIGN: REC TwinPeak 5 comes with extra support bars across the rear of the panel, greatly boosting its strength and durability, allowing loads of up to 7000 Pa – far exceeding the 5400 offered by conventional panels. This added strength enables higher energy yields. Combined with a 30 mm frame height, this design enables flexible installation options, making it easier to overcome every obstacle during system design.
Benefits:
More power output per square meter, needing fewer REC TwinPeak 4 panels to generate the same power.
Reduced overall costs, shortening the payback time.
REC TwinPeak technologies have a unique “twin” design, enabling them to generate electricity even when partially shaded.
Over time, you get a higher yield from your installation.
100% PID free.
SUPERIOR WARRANTY: Promises that the workmanship and materials of the panels themselves maintain their superior quality for 20 years – double the old product warranty duration. Ensures that your REC solar panels will perform exactly as expected every year for 25 years. With 0.5% warranted annual degradation, your REC N-Peak panel will still produce at least 86% of its nameplate power in its 25th year of operation.
In the Box:
REC 405W Solar Panel
REC 405W Solar Panel User Manual
Delivery: 2-3 working day shipping if ordered by 5 PM on a working day (delivery times may vary to the Scottish Highlands, Islands, and Northern Ireland).
Detailed specifications:
Rated (Peak) Power (Wp): 405W in Standard 1000w/m2 solar light
Part number REC405TP5-BF
Open Circuit Voltage: 45.10V (Vmp =38.0V)
Short Circuit Current: 11.43A (Imp = 10.67A)
Efficiency: 20.6%
Cell Type: Monocrystalline Silicon
Connector Type: MC4
Certification: EN IEC 61730-1/2:2018 / EN IEC 61215-1/2:201 / CE
Net Weight: 21.6KG
Size: 1899 X 1040 X 30 mm
Discover the ideal solution for ground-mounted PV modules with ConSole+ Ground Mounts, providing a 15-degree angle for optimal solar energy capture. This versatile mounting system is designed to be secure and flexible, making it the perfect choice for various applications.
Features of ConSole+ Ground Mounts:
Simple Fast Installation: No special equipment or drilling required; ConSole+ is fixed only by ballast, making it suitable for unstable ground.
Easy Handling: A user-friendly design ensures flexibility and security during installation.
Cost-Effective: Lower installation costs compared to roof-mounted solar panels, offering an environmentally friendly alternative.
Easy Removal: Designed for hassle-free dismantling after use, reducing environmental impact.
Proven Performance: With nearly 20 years of positive customer experience, ConSole+ comes with a system warranty of 10 years.
Detailed Specifications:
Applications: Ideal for flat roofs, open spaces, gardens, pavement around the house, landfills, and more.
Roof Slope: Max. 5° without additional measures.
PV Module Tilt: 15°.
PV Module Length: 1550 mm – 2400 mm.
PV Module Width Between Mounting Holes: 895 mm – 1015 mm (1085 mm with elongation rails).
Material: HDPE, aluminum, and stainless steel.
Ambient Temperature: -30°C to +50°C.
Dimensions: Width: 1765mm, Depth: 1048 mm, Height: 35mm.
Weight: 8kg
Frequently Asked Questions:
HOW GOOD IS THE REC PANEL?
REC is considered an industry leader, renowned for manufacturing some of the best solar panels globally. The company operates as a fully vertically-integrated entity, producing all components in-house, ensuring complete control over quality.
WHERE ARE REC SOLAR PANELS MADE?
Founded in Norway in 1996, REC Group, originally manufacturing in Norway and Sweden, transitioned to full automation in 2010. Currently, REC produces 26 million solar panels annually in its production plant in Singapore.
WHO MANUFACTURES REC SOLAR PANELS?
REC, headquartered in Norway with operational headquarters in Singapore, employs over 2,000 people globally. In 2021, it was acquired by Reliance New Energy Solar, a part of the Indian conglomerate, Reliance Industries, from its original parent company, China Bluestar Group.
WHAT CURRENT CLASS IS REC?
REC solar modules are classified as Class A according to the IEC 61730-2 standard. For roof installations, proper ventilation is recommended between the modules’ backsheet and the mounting surface, ensuring fire resistance.
IS REC TIER 1?
REC produces Tier 1 panels with a 20-year product warranty and a 25-year performance warranty. Additionally, REC panels are certified as corrosion-resistant.
WHAT ARE TIER 1 SOLAR PANELS?
Tier 1 solar panels are manufactured using the highest-quality silicon, enhancing their performance. Advanced robotic methods are employed by Tier 1 manufacturers to regulate the production process, minimizing human errors.
HOW LONG DO TIER 1 SOLAR PANELS LAST?
Tier 1 solar panels come with an industry-standard warranty of 25 years or longer. In practice, these panels often surpass this timeframe, ensuring efficiency above 80% after 25 years.
WHAT IS THE EFFICIENCY OF REC PANELS?
REC solar panels exhibit efficiency ranging from 19.1% to 22.3%. The company provides a materials and performance warranty lasting up to 25 years.
ARE HALF-CELL SOLAR PANELS BETTER?
Yes, half-cell modules are considered better as they offer higher power output and greater efficiency and reliability than their full-cell counterparts. This results in time and cost savings for installers, requiring fewer panels to generate the same power.
