DISCOVER THE FUTURE OF OFF-GRID POWER WITH GROWATT SPF 5000 ES 5.0KW INVERTER

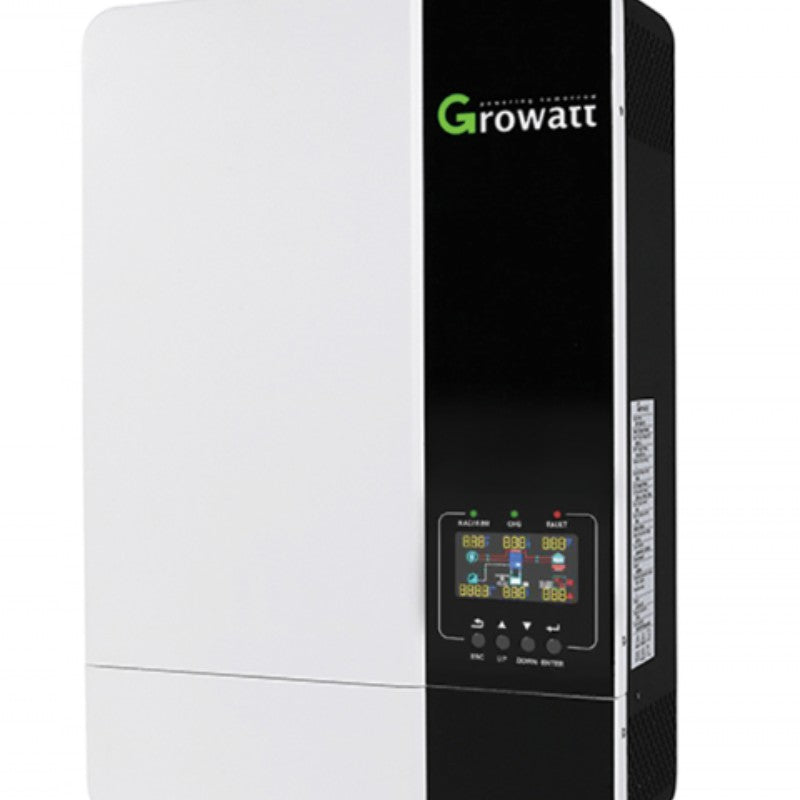

The Growatt SPF 5000 ES 5.0kW 48V Off-grid Hybrid Inverter integrates a 5000W pure sine wave inverter, 100A MPPT solar charge controller, and 80A AC Charger into a single unit. Its versatility allows to draw energy from solar panels, mains or battery sources either individually or in combination.
Installation available – contact us for a quote on [email protected] or call us on 020 8064 0335.
Features
Versatile Power: 5000VA/5000W rated power to meet a range of power needs.
Solar Ready: Maximises a 6000W solar array with a 100A solar charge current.
Scalable: Expands up to 6 units to grow with your power requirements.
WIFI Monitoring: Remote monitoring via Wi-Fi for control at your fingertips.
High Efficiency: Impressive 93% efficiency for a sustainable energy solution.
Compact Design: Space saving at 330/485/135mm and lightweight at 12kg.
2-3 Working Days’ Delivery within the UK (varies for Highlands, Islands, and Northern Ireland).
Detailed specifications
Origin: China
Nominal battery voltage: 48Vdc
Continuous power output: 5000W/5000VA 220-240VAC 50Hz
Surge power: 10000VA
Output waveform: Pure sine wave
Maximum solar input power: 6000W
Maximum open circuit solar input voltage (Voc): 450V
Solar MPPT operating voltage: 120-430V DC
Maximum solar charging current: 100A
AC Input Voltage: 230VAC
Maximum mains AC charging current: 80A
Frequency Range: 50/60Hz (Auto sensing)
Transfer time: 10ms Typical, 20ms Max
Efficiency: 93%
Operating temperature: -10°C to 50°C
Supplied with: Wi-Fi Shine
Protection Degree: IP20
Size: 330 x 485 x 135mm
Net Weight: 12kg
In the Box
1 X Growatt SPF 5000 ES 5.0kW 48V Off-grid Inverter,
1 X Growatt SPF 5000 ES 5.0kW 48V Off-grid Inverter Manual.
