Description
Part No: SE-BATTERY-4.6kWH-02-2-9.2 Storage Systems – Li-ion Battery Pack
This part is made up of the following items:

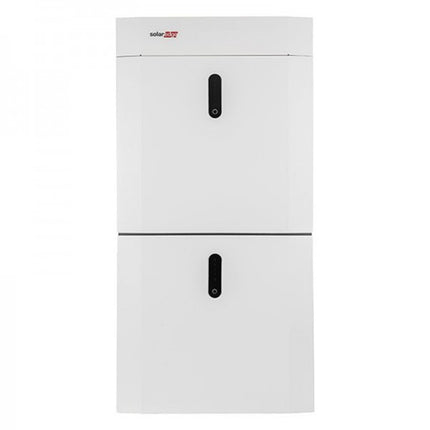

2 x SE-BATTERY-4.6KWH-02 SolarEdge Home Battery 48V V2 – 3PH Low Voltage 4.6kWh module
SolarEdge Home Battery 48V V2 – Low Voltage 4.6kWh module Stack of 2 = 9.2kWh
BAT-05K48M0B-02 – Three Phase Inverter Connection Only – Design Tool
Stack of 2 required Ancillaries:
1x Battery Top Cover Kit – SE-BATT-CVR-KIT-4.6
1x Battery to Inverter Cables (RWB) – SE-CABLE-B2I-4.6 or Battery to Inverter Cables (RWS) – IAC-RBAT-5KCINV-02
1x Battery to Battery Cables -SE-CABLE-B2B-4.6
Weight: 107.7 kg
Battery Type: Lithium Ion
Nominal Energy: 9200 Wh
Depth of discharge: 90.00 %
Voltage: 51 V
Continuous Discharge Rate (Normal Use): 5000 W
Maximum Discharge Rate (5 Minutes): 5000 W
Surge Discharge Rate (15 Seconds): 5000 W
Maximum Charge Rate (5 Minutes): 5000 W
