REVOLUTIONISE YOUR ENERGY SUPPLY WITH THE HYBRID ON-GRID/OFF-GRID ENERGY STORAGE SYSTEM

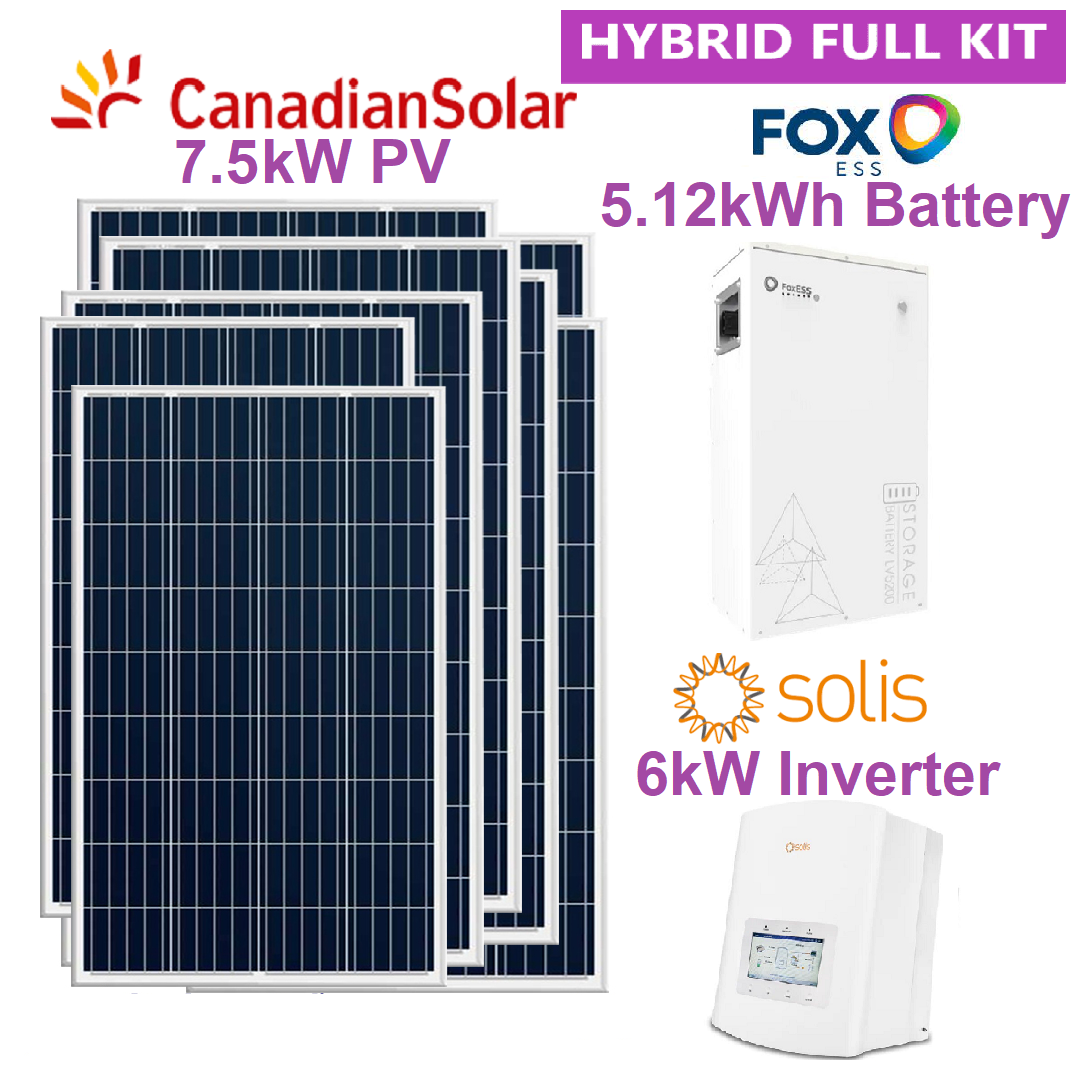

The Hybrid On-grid/Off-grid Energy Storage System (Hybrid ESS) is a groundbreaking solution designed to redefine your energy independence. Featuring Solis 6kW Hybrid On-grid/Off-grid Inverter, Fox ESS LV52 5.12kWh 48V Battery Modules, and (optional) 18x Canadian Solar 415W Solar Panels (custom quantities of solar panels are available on request), this system provides a robust foundation for advanced energy management. A basic set of cables is thoughtfully included for a seamless installation experience.
Zero VAT applies when purchased from your installer. Take advantage of our cost effective battery installation service or request a full solar installation and pay zero VAT! Click here to request a quote or contact us via live chat, email [email protected] or call 020 8064 0335 for live expert advice.
Solar Panels, strategically mounted on a rooftop or on the ground, generate a direct current of electricity, charging the battery efficiently. This stored energy undergoes seamless conversion through a Hybrid Inverter, transforming it into alternating current for use by the home or a small business the solar panels are attached to. The excess energy, depending on the set operation mode, is either stored in the battery or seamlessly fed into the National Grid.
Unlock the full potential of home energy storage systems, enabling precise use of generated electricity when needed. The battery bank optimizes renewable energy from solar photovoltaic (PV) panels or a wind turbine. For example, electricity generated during the day can be stored, ensuring a sustainable power source for evening activities like boiling the kettle or powering electronic devices.
Tailor the Hybrid ESS to your unique needs, considering current energy usage, the size of existing generation technologies, and future plans such as acquiring an electric vehicle (EV) or implementing a heat pump for home heating. Empower your energy future with the Hybrid ESS.
▼ HYBRID ESS FEATURES
SOLIS EH1 6KW ENERGY STORAGE HYBRID 5G INVERTER (S5-EH1P6K-L) is the combination of a solar inverter and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, battery, and the grid at the same time. The SOLIS hybrid inverter is a good choice for on-grid / off-grid integrated storage solutions.
SOLIS EH1 HYBRID INVERTER PROVIDES provides 6kW in on-grid mode and 5kW back-up power to support essentials in off-grid mode, as well as 24-hour fully intelligent energy management and real-time PV system status monitoring.
SOLIS HYBRID INVERTER UNINTERRUPTED POWER SUPPLY Switches to the battery in less than 20ms if the grid is down; Intelligent EMS function, improving battery’s reliability; Remotely control & upgrade function, making digital power plant maintenance at your fingertips.
SOLIS HYBRID INVERTER – 5 WORKING MODES:
SELF-USE MODE – Maximise the usage of solar energy from the Solar Panels.
FEED IN PRIORITY MODE – Feed the excess solar energy to the Grid in order to gain subsidies.
BACKUP MODE – Keep the Battery at a certain SOC (State of Charge) and only use it during a power outage.
OFF-GRID MODE – For Off-grid use and AC-Grid Port Disconnected.
EPS (EMERGENCY POWER SUPPLY MODE – required an external Solis NPS switching Box to achieve switching function) – With Grid: Only the AC grid port will output power; the backup port is disabled. Without Grid: Only the backup port will output power; the AC grid port is disabled.
FOX ESS LV52 5.12kWh 48V LONG LIFE, EXPANDABLE, HIGH-EFFICIENCY BATTERY has a rated life span of more than 6000 cycles (90% Depth of Discharge); Storage capacity is expandable to 20.48kWh (4 modules in parallel); 98% charge/discharge efficiency; Easy plug & play installation.
FIVE YEARS GUARANTEE FOR FOX ESS LV52 5.12kWh 48V Fox warrants that the Product retains at least 60% of Nominal Energy for either 10 years after the date of the initial installation or for a minimum Energy Throughput of 15.6MWh. when the battery system is operated under normal use according to the specifications outlined in the Product manual.
(Optional) CANADIAN SOLAR 21.3% HIGH-EFFICIENCY 415W MONO PERC HIKU SOLAR PANELS is a power source which captures up to 7.5kW DC electricity and then converts it to AC electricity to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid.
DURABLE, DUST & WATER RESISTANT SOLAR PANELS The Canadian Solar 415W solar panel is dust and water-resistant to endure all weather conditions. Anti-reflective and anti-soiling surface reduces power loss from dirt and dust; Heavy snow load up to 5400Pa and increased wind load up to 3600Pa. 12-year product warranty and 25-year extra linear power output warranty.
4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
▼ HYBRID ESS SPECIFICATIONS
1x SOLIS S5-EH1P6K-L Hybrid Inverter 220-230VAC, 6kW (Grid side), 5kW (Back-Up);
1x or 2x FOX ESS LV52 LiFePO4 Battery 5.12kWh (51.2V 100Ah), >6000 Cycles, Continuous Discharge Rate 5.12kW, Max. Discharge Rate (5 minutes) 6kW;
(Optional) 18x Canadian Solar Mono PERC HiKu 415W Solar Panels, Efficiency = 21.3%.
FOX ESS LV52 BATTERY
Battery Type: LiFePO4 Prismatic Cell
Nominal Capacity: 5.12kWh
Nominal Voltage: 51.2V
Operating Voltage: 46.4 – 58.4V
Recommended Discharge Current: 50A
Max. Discharge Current: 100A
Battery Pack Round-Trip Efficiency: >95%
Depth of Discharge: 90%
Cycle Life: >6000 (25°C, @90% DOD, 0.5C charging/discharging)
Installation Location: Indoor (Stand)
Operating Temperature Range: Charge 0 ~ +55°C Discharge -10 ~ +55°C
Humidity: 5% to 95% (No Condensing)
Ingress Protection: IP21
Net Weight: 49.5kg
Size: 420* 620 * 184.5mm
SOLIS S5-EH1P6K-L HYBRID INVERTER
SOLAR INPUT
Max. Solar Power (Wp): 8kW
Max. Input Voltage: 600V
Rated Voltage: 330V
Start-up Voltage: 120V
MPPT Voltage Range: 90-520V
Max. Input Current: 15A/15A
Max. Short Circuit Current: 22.5A/22.5A
MPPT number/Max. input string number: 2/2
AC INPUT (GRID SIDE)
Input Voltage Range: 187-265VAC
Max. Input Current: 34.5A/33A
Frequency Range: 45-55Hz/55-65Hz
AC Connection: Quick connection plug
AC OUTPUT (BACK-UP)
Rated Output Power: 5kW
Back-up Switch Time: 20ms
Operation Phase: 1/N/PE
Rated Output Voltage: 220-230VAC
Rated Frequency: 50Hz/60Hz
Max. Output Current: 23A/22A
THDv (Linear Load): <2%
AC OUTPUT (GRID SIDE)
Rated Output Power: 6kW
Operation Phase: 1/N/PE
Rated Output Voltage: 220-230VAC
Rated Frequency: 50Hz/60Hz
Rated Grid Output Current: 27.3A/26.1A
Max. Output Current: 30A
Power Factor: >0.99 (0.8 leading – 0.8 lagging)
THDv (Linear Load): <2%
EFFICIENCY
Max. Efficiency: >97.1%
EU Efficiency: >96.5%
GENERAL DATA
Dimensions (W*H*D): 333*505*249 mm
Weight: 18.3kg
Operating Temperature Range: -25 ~ +60°C
Ingress Protection: IP65
Cooling: Natural Convection
Display: 7.0″LCD colour screen display
Communication: RS485, Optional: Wi-Fi, GPRS
CANADIAN SOLAR 415W Solar Panel
Rated (Peak) Power (Wp): 415W in Standard 1000w/m2 solar light
Open Circuit Voltage (Voc): 37.4V
Voltage at Maximum Power (Vmp): 31.4V
Short Circuit Current (ISC): 14.05A
Current at Maximum Power (Imp): 13.23A
Efficiency: 21.3 %
Cell Type: Monocrystalline Silicon
Connector Type: MC4-Evo2
Certification: IEC 61215 / IEC 61730 / CE / INMETRO / MCS / UKCA
Net Weight: 21.3kg
Size: 1722 X 1134 X 30 mm
▼ HYBRID ESS IN THE BOX
1x SOLIS S5-EH1P6K-L Hybrid Inverter 220-230VAC, 6kW (Grid side), 5kW (Back-Up) – 1 X Box
1x or 2x FOX ESS LV52 LiFePO4 Battery 5.12kWh (51.2V 100Ah) – 1x or 2x Box
(Optional) 18x CANADIAN SOLAR 415W Solar panel – 1 X Double pallet
