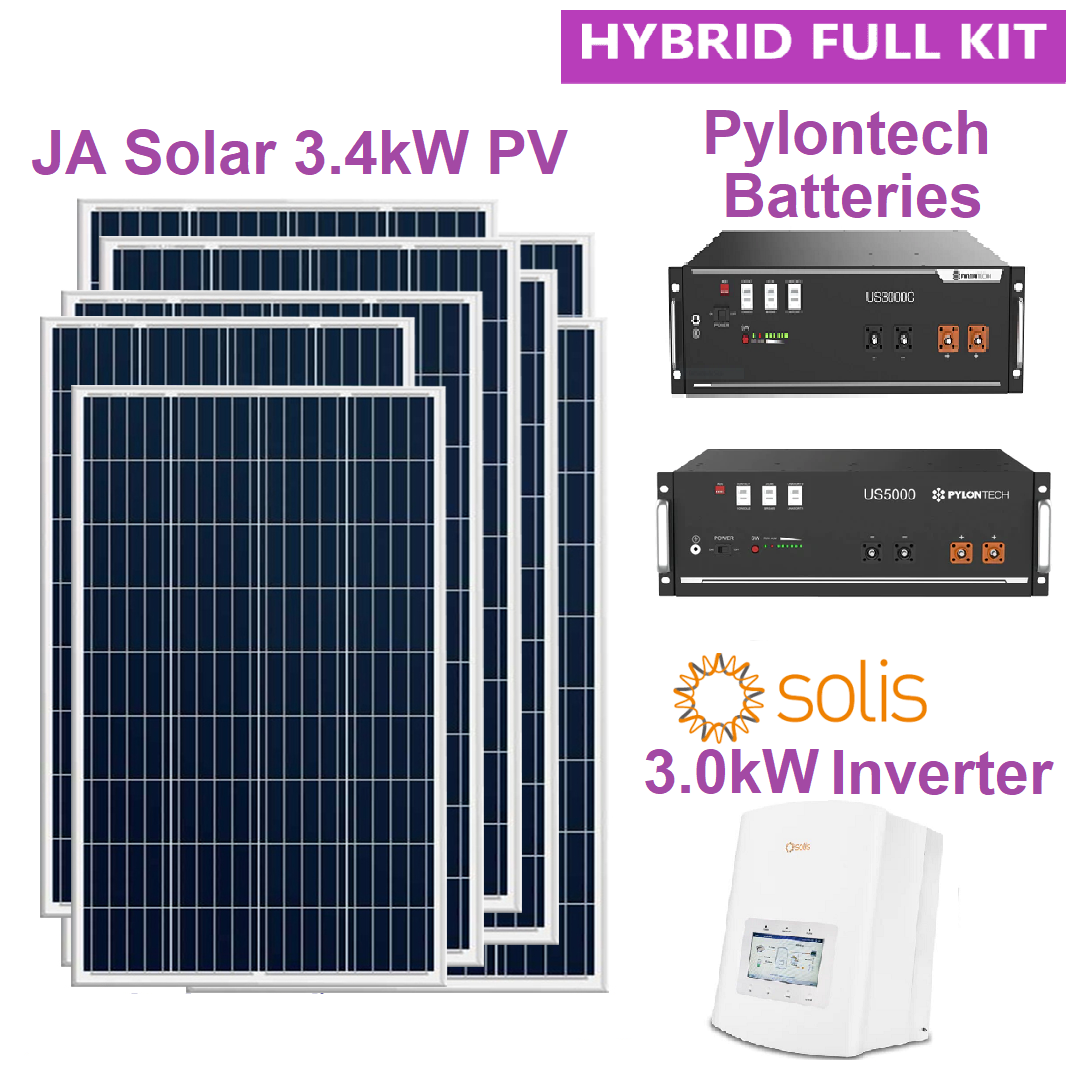

REVOLUTIONISE YOUR ENERGY SUPPLY WITH THE HYBRID ON-GRID/OFF-GRID ENERGY STORAGE SYSTEM
The Hybrid On-grid/Off-grid Energy Storage System (Hybrid ESS) is a cutting-edge solution designed to elevate your energy independence. Comprising Solis 3.0kW Hybrid On-grid/Off-grid Inverter, 1x Pylontech US5000 4.8kWh or 2x Pylontech US3000C 3.5kWh 48V Battery Modules, and (optional) 4/6x JA Solar 565W Solar Panels (custom quantities of solar panels are available on request), this system offers a robust foundation for efficient energy management. A thoughtfully assembled basic set of cables is included for a hassle-free installation experience.
Zero VAT applies when purchased from your installer. Take advantage of our cost effective battery installation service or request a full solar installation and pay zero VAT! Click here to request a quote or contact us via live chat, email [email protected] or call 020 8064 0335 for live expert advice.
Solar Panels, strategically positioned on rooftops or the ground, harness the sun’s energy, generating a direct current that efficiently charges the battery. This stored energy undergoes seamless conversion through the Hybrid Inverter, transforming it into alternating current for use by homes or small businesses connected to the solar panels. The Hybrid ESS intelligently manages excess energy, either storing it in the battery or seamlessly directing it into the National Grid.
Unlock the potential of home energy storage systems, enabling you to use generated electricity precisely when needed. The battery bank optimizes renewable energy from solar photovoltaic (PV) panels or a wind turbine. For instance, electricity generated during the day can be stored, ensuring a sustainable power source for evening activities like boiling the kettle or powering electronic devices.
Tailor the Hybrid ESS to your unique needs, considering current energy usage, the size of existing generation technologies, and future plans such as acquiring an electric vehicle (EV) or implementing a heat pump for home heating. Empower your energy future with the Hybrid ESS.
▼ HYBRID ON-GRID/OFF-GRID ESS FEATURES
SOLIS EH1 3KW ENERGY STORAGE HYBRID 5G INVERTER (S5-EH1P3K-L) is the combination of a solar inverter and a battery inverter into a single piece of equipment that can intelligently manage power from your solar panels, battery, and the grid at the same time. The SOLIS hybrid inverter is a good choice for on-grid / off-grid integrated storage solutions.
SOLIS S5-EH1P3K-L HYBRID INVERTER provides 3.0kW in on-grid mode and 3kW back-up power to support essentials in off-grid mode, as well as 24-hour fully intelligent energy management and real-time PV system status monitoring.
SOLIS HYBRID INVERTER UNINTERRUPTED POWER SUPPLY Switches to the battery in less than 20ms if the grid is down; Intelligent EMS function, improving battery’s reliability; Remotely control & upgrade function, making digital power plant maintenance at your fingertips.
SOLIS HYBRID INVERTER – 5 WORKING MODES:
SELF-USE MODE – Maximise the usage of solar energy from the Solar Panels.
FEED IN PRIORITY MODE – Feed the excess solar energy to the Grid in order to gain subsidies.
BACKUP MODE – Keep the Battery at a certain SOC (State of Charge) and only use it during a power outage.
OFF-GRID MODE – For Off-grid use and AC-Grid Port Disconnected.
EPS (EMERGENCY POWER SUPPLY MODE – required an external Solis NPS switching Box to achieve switching function) – With Grid: Only the AC grid port will output power; the backup port is disabled. Without Grid: Only the backup port will output power; the AC grid port is disabled.
PYLONTECH US5000 4.8kWh 48V LONG LIFE LIFEPO4, EXPANDABLE, HIGH-EFFICIENCY STORAGE BATTERY has a rated life span of more than 6000 cycles (90% Depth of Discharge); Storage capacity is expandable to 76.8kWh (16 modules in parallel); 98% charge/discharge efficiency; Easy plug & play installation.
PYLONTECH US3000C 3.5kWh 48V LONG LIFE LIFEPO4, EXPANDABLE, HIGH-EFFICIENCY STORAGE BATTERY has a rated life span of more than 6000 cycles (90% Depth of Discharge); Storage capacity is expandable to 56.8kWh (16 modules i parallel); 98% charge/discharge efficiency; Easy plug & play installation.
7-YEARS STANDARD GUARANTY FOR PYLONTECH US SERIES 48V STORAGE BATTERIESPylontech warrants that the Product will be free of defects caused by improper workmanship or defective materials. This warranty commences the period of Seven (7) years from the earlier of: 1. the date of installation of the Product; or 2. six (6) months after the date the Product was manufactured.
JA SOLAR 565W MONO PERC HALF-CELL MBB LR MC4 SOLAR PANELS is a power source which captures up to 3.4kW DC electricity and then converts it to AC electricity to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid. JA SOLAR 565W MONO PERC HALF-CELL MBB LR MC4 Solar Panel features JA Solar’s innovative design with the high panel efficiency and power output of monocrystalline cells, enabling you to get more out of the space available – helping to lower your energy bills and shorten the payback time through increased yield and lower costs.
DURABLE, DUST & WATER RESISTANT SOLAR PANELS The JA SOLAR 565W MONO PERC HALF-CELL MBB LR MC4 solar panel is dust and water-resistant to endure all weather conditions. Anti-reflective and anti-soiling surface reduces power loss from dirt and dust; Heavy snow load up to 5400Pa and increased wind load up to 3600Pa. 12-year product warranty and 25-year extra linear power output warranty.
4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
▼ HYBRID ON-GRID/OFF-GRID ESS SPECIFICATIONS
JA SOLAR 565W SOLAR PANELS
Rated (Peak) Power (Wp): 565W in Standard 1000w/m2 solar light
Open Circuit Voltage (Voc): 50.5V
Voltage at Maximum Power (Vmp): 41.68V
Short Circuit Current (Isc): 14.31A
Current at Maximum Power (Imp): 13.54A
Efficiency: 21.4 %
Cell Type: Monocrystalline Silicon
Connector Type: MC4
Certification: DC IEC 1000V
Net Weight: 28kg
Size: 2333 X 1134 X 30 mm
PYLONTECH US5000 BATTERY
Battery Type: LiFePO4
Nominal Capacity: 4.8kWh
Recommended Charge/Discharge Current: 50A
Max. Charge/Discharge Current: 100A
Battery Pack Round-Trip Efficiency: >95%
Depth of Discharge: 95%
Cycle Life: >6000 (25°C, @95% DOD)
Installation Location: Indoor
Operating Temperature Range: Charge 0 ~ +50°C Discharge -10 ~ +50°C
Ingress Protection: IP20
Net Weight: 38kg
Size: 442 * 400 * 161mm
PYLONTECH US3000C BATTERY
Battery Type: LiFePO4
Nominal Capacity: 3.55kWh
Recommended Charge/Discharge Current: 37A
Max. Charge/Discharge Current: 37A
Battery Pack Round-Trip Efficiency: >95%
Depth of Discharge: 95%
Cycle Life: >6000 (25°C, @95% DOD)
Installation Location: Indoor
Operating Temperature Range: Charge 0 ~ +50°C Discharge -10 ~ +50°C
Ingress Protection: IP20
Net Weight: 32kg
Size: 442 * 420 * 132mm
SOLIS S5-EH1P3K-L 3.0kW HYBRID ON-GRID/OFF-GRID INVERTER
SOLAR INPUT
Max. Solar Power (Wp): 4.0.5kW
Max. Input Voltage: 600V
Rated Voltage: 330V
Start-up Voltage: 120V
MPPT Voltage Range: 90520V
Max. Input Current: 15A/15A
Max. Short Circuit Current: 22.5A/22.5A
MPPT number/Max. input string number: 2/2
AC INPUT (GRID SIDE)
Input Voltage Range: 187-265VAC
Max. Input Current: 25A/20A
Frequency Range: 45-55Hz/55-65Hz
AC Connection: Quick connection plug
AC OUTPUT (BACK-UP)
Rated Output Power: 3kW
Back-up Switch Time: 20ms
Operation Phase: 1/N/PE
Rated Output Voltage: 220-230VAC
Rated Frequency: 50Hz
Rated Output Current: 14A/13.5A
THDv (Linear Load): <2%
AC OUTPUT (GRID SIDE)
Rated Output Power: 3.0kW
Operation Phase: 1/N/PE
Rated Output Voltage: 220-230VAC
Rated Frequency: 50Hz
Rated Grid Output Current: 13.7/13.1A
Max. Output Current: 15A
Power Factor: >0.99 (0.8 leading – 0.8 lagging)
THDv (Linear Load): <2%
EFFICIENCY
Max. Efficiency: >97.1%
EU Efficiency: >96.5%
GENERAL DATA
Dimensions (W*H*D): 333*505*249 mm
Weight: 18.3kg
Operating Temperature Range: -25 ~ +60°C
Ingress Protection: IP65
Cooling: Natural Convection
Display: 7.0″LCD colour screen display
Communication: RS485, Optional: Wi-Fi, GPRS
▼ HYBRID ESS IN THE BOX
1x Solis 3.0kW Hybrid On-grid/Off-grid Inverter,
1x Pylontech US5000 4.8kWh or 2x Pylontech US3000C 3.5kWh 48V Battery Modules, and
4x or 6x JA Solar 565W Solar Panels.
