OPTIMIZE ENERGY MANAGEMENT WITH DOUBLE DIGITAL ALL-IN-ONE HYBRID WIND & SOLAR CHARGE CONTROLLER
Efficient Power Control and Monitoring for Your Renewable Energy System
Key Features:
Compatibility: Compatible with Lead-Acid and AGM batteries; not suitable for Lithium batteries.
All-in-One Design: Hybrid Wind & Solar Digital All-in-One Charge Controller with Dump Load and LED Meter.
LED Display: Features an LED display indicating battery voltage (12V, 24V, or 48V).

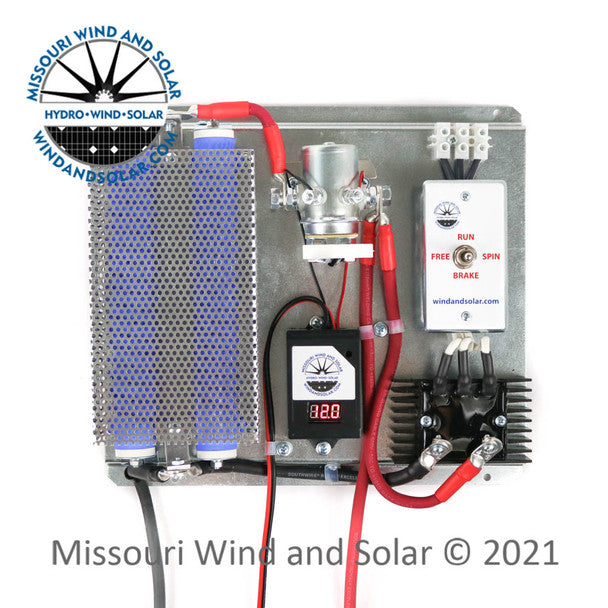

Pre-Wired for Convenience: Comes pre-wired for plug and play with essential components:
600-watt divert load
Dual 3-phase brake switch (ideal for the Freedom II Wind Turbine)
Two 90A rectifiers for 3-phase output wind turbine connection
Charge controller with LED volt meter
Mechanical relay with arc suppressor
5-foot (1.5m) long heavy-duty battery cables
Double Charge Controller Advantage:
Ideal for quickly connecting two single wind turbines, maximizing power output in a hybrid system.
Easily connects solar panels to the board without requiring an additional controller.
Key Controller Features:
Dual microprocessor controlled for stability and accuracy.
Multiple user-changeable settings for various system requirements.
Isolated Electronics Protection to prevent accidental direct connections.
On-board relay isolates electronics, ensuring longevity.
High amp rating: 440 amps, 10,000 watts; 100 amps continuous for the solar side.
Battery Status LED and dump mode indicator for real-time monitoring.
Plug & Play with long leads for easy termination to your battery or battery bank.
Versatile Power Diversion:
Can divert the charging source from the batteries to the load or dump both batteries and the charging source.
Connect both wind and solar simultaneously for enhanced energy generation.
Safety Features: Reverse polarity protection for added safety.
Low Power Consumption:
Ultra-low power consumption, even with the voltmeter on.
Voltmeter with auto-off feature after periods of inactivity.
Additional Components: Comes with 5 feet of heavy-duty cables and is completely pre-wired.
Mounting Plate Dimensions: 24 inches x 18 inches for easy installation.
Manufacturer Warranty: 1 Year Manufacturer Warranty for peace of mind.
Ensure Reliable and Efficient Renewable Energy Management with Our Double Digital All-in-One Hybrid Charge Controller.
In addition, the diversion controller most of the features of our larger controllers but is much more compact and economical.
Add 1200W dump loads below for this charge controller into the cart. if necessary.
1200 Watt Dump Load (4 Resistor Bank)
