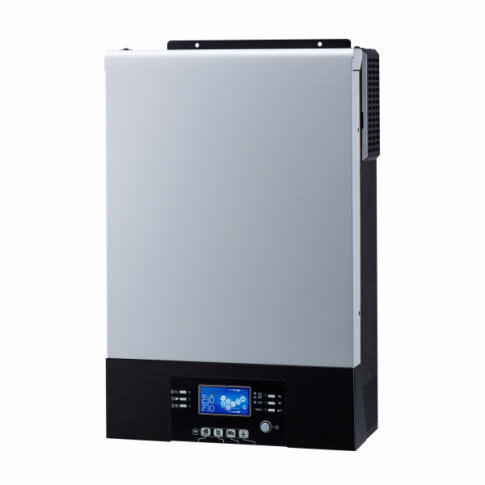

ICONICA POWERHOUSE: 11000W 48V OFF-GRID HYBRID INVERTER
Experience the pinnacle of energy efficiency with the Iconica 11000W 48V Off-grid Hybrid Inverter. This all-in-one powerhouse combines an 11000W pure sine wave inverter, a 150A DUAL-INPUT MPPT solar charge controller, and a 150A smart battery charger into a single, versatile unit. It flawlessly accepts inputs from solar panels, mains power/generators, or batteries, either individually or in combinations, showcasing zero transfer time for an instantaneous shift from mains to battery mode during power interruptions. Elevating its capabilities, the inverter comes with advanced communication functions, including inbuilt Wi-Fi, and a range of highly customisable settings.
Installation available – contact us for a quote.
Key Features:
Battery Compatibility: Compatible with 48V GEL/AGM and LITHIUM-ION batteries with predefined charging programs. Offers a user-defined battery type with customizable settings for charging other battery types (consult the battery supplier for Lithium battery charging settings).
Powerful Inverter: Transforms DC current into 230V AC mains electricity, providing 11000W of continuous power and a robust peak power handling capability of up to 22000VA. Ideal for powering various household appliances and facilitating the start-up of appliances with electric motors.
Efficient MPPT Controller: Equipped with 2 built-in 150A high-efficiency MPPT controllers managing solar panel input to batteries and/or connected appliances. Operates at up to 98% efficiency with comprehensive safety features protecting against overcharge, overheating, and reverse current.
Scalable Power: Connectable in parallel with up to 5 additional identical units, allowing large-scale system expansion with a potent 66kW/66kVA power handling capability. Parallel connections offer 3-phase operation, ideal for industrial-grade equipment requiring 3-phase electricity.
Advanced Communication Options: Supplied with a PC connection cable and PC software CD for viewing crucial system information. Offers detailed data logs viewable and exportable to PDF/Excel formats. Potential to send data to a mobile app using the built-in Wi-Fi kit or an online user portal using a Wi-Fi Remote Monitoring Kit (purchased separately).
Integrated Wi-Fi Function: Permits remote monitoring through the WatchPower mobile app, available for Android and iOS devices. Provides crucial information about solar/battery/AC voltage, charging current, and battery capacity.
Fast and Reliable Delivery: 2-3 working days delivery within the UK, with extended delivery times to the Highlands, islands, and Northern Ireland.
Detailed specifications
Nominal battery voltage: 48Vdc
Continuous power output: 11000W/11000VA 220-240VAC 50Hz
Surge power: 22000VA
Output waveform: Pure sine wave
Maximum solar input power: 5500W per input, 11000W in total
Maximum solar input current: 18A per input
Maximum open circuit solar input voltage (Voc): 500V
Solar MPPT operating voltage: 90-450V DC
Maximum solar charging current: 150A
Maximum mains AC charging current: 150A
Maximum combined charging current: 150A
Peak efficiency: 93%
Operating temperature: -10°C to 50°C
Supplied with: USB drive PC connection cable and PC software CD
Size: 554 x 432 x 148 mm
Net Weight: 18.4kg
In the Box
1 X ICONICA 11.0kW 48V Off-grid Hybrid Inverter,
1 X ICONICA 11.0kW 48V Off-grid Hybrid Inverter Manual,
1 X PC connection cable and PC Software CD.
Documents available for Download:
ICONICA 11000W Data Sheet
ICONICA 11000W User Manual
ICONICA 11000W WatchPower Software User Manual
