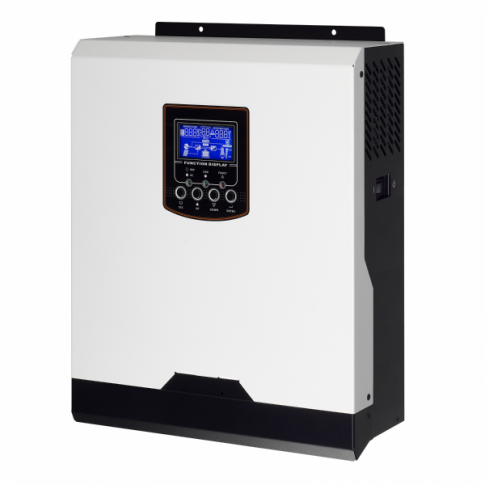

POWERFUL AND VERSATILE: ICONICA 3000W 24V OFF-GRID HYBRID INVERTER WITH 40A MPPT SOLAR CONTROLLER & 25A CHARGER
Experience the seamless integration of a 3000W pure sine wave inverter, a 40A MPPT solar charge controller, and a 25A smart battery charger in one innovative unit. The Iconica Off-grid Hybrid Inverter offers unparalleled versatility, accepting inputs from solar panels, mains power/generator, or batteries, individually or in combination. With zero transfer time, it swiftly shifts from mains to battery mode during power interruptions, complemented by advanced communication functions and built-in Bluetooth for enhanced customisation.
Ideal for both stationary and mobile off-grid installations, such as remote properties, holiday homes, cabins, narrowboats, yachts, and more. It’s also perfect for those aiming to reduce mains electricity usage and save on electricity bills or as a reliable backup system in areas prone to frequent power cuts.
Installation available – contact us for a quote.
Key Features:
Battery Compatibility: Compatible with 24V flooded and sealed GEL/AGM batteries, featuring predefined charging programs. User-defined battery types with customisable settings are available for various lead-acid batteries.
Inbuilt 40A MPPT Solar charge controller with high input voltage of up to 102V DC: The high efficiency MPPT controller regulates the input from the solar panels to the batteries or to load, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. The controller operates at up to 98% efficiency to extract the maximum possible power from the solar array.
Enhanced 25A Smart battery charger: Designed to enable safe, efficient and fast (up to 25A) unattended charging of a battery from a mains power source or generator, with full overcharge protection and multiple charging stages.
Advanced communication options: This inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, such as: solar/ battery/ AC voltage, charging current, battery capacity etc. Detailed data logs are also available to view and export to PDF/ Excel formats. This inverter also has the potential to send data to an online user portal using a Wi-Fi connection kit (purchased separately). By connecting via this method, the user will unlock access to exclusive features such as email / push notification status updates for the inverter, remote system monitoring from any location and much more.
Fast and FREE Delivery: 2-3 working days delivery within the UK (delivery times may vary for Highlands, Islands, and Northern Ireland).
Detailed specifications
Part number IC-BM3000-24
Nominal battery voltage: 24Vdc
Continuous power output: 3000W/3000VA 220-240VAC 50Hz
Surge power: 6000VA
Output waveform: Pure sine wave
Maximum solar input power: 1000W
Maximum solar input current: 40A
Maximum open circuit solar input voltage (Voc): 102V
Solar MPPT operating voltage: 30-80V DC
Maximum mains AC charging current: 25A
Maximum combined charging current: 60A
Peak efficiency: 93%
Operating temperature: -10°C to 50°C
Supplied with: USB drive PC connection cable and PC software CD
Size: 320 x 225 x 88 mm
Net Weight: 7kg
In the Box
1 X ICONICA 3.0kW 24V Off-grid Hybrid Inverter,
1 X ICONICA 3.0kW 24V Off-grid Hybrid Inverter Manual,
1 X PC connection cable and PC Software CD,
