The Mitsubishi Heavy Industries wall-mounted air-to-air heat pump air conditioner is a popular choice for residential, office, and shop applications.
Key features
High seasonal efficiency: Enjoy exceptional seasonal efficiency with an A++ rating, providing cost-effective cooling and heating.
Elegant and timeless design: The new ‘smooth line’ design is easy to clean and seamlessly integrates into any environment.
Capacity to accommodate requirements of a small room: With cooling capacity down to 2.5kW and heating capacity of 3.0kW, this unit is perfect for small rooms.
Space-saving solution: The slim-profile indoor unit, with a reduced height of just 294mm, can be installed above doorways and windows, maximising your space.
Allergen clear filter: The SRK-ZTL series includes an Allergen Clear Filter, which is effective against allergens, including Covid-19. The Allergen Clear Operation removes allergens and bacteria trapped in the filter in less than 90 minutes, ensuring cleaner and healthier air.
R32 refrigerant: Help protect the planet by reducing the environmental impact with the use of R32 refrigerant.
Wireless WiFi control: The unit comes with a wireless WiFi control system for added convenience.
Silent modes: Two levels of silent modes are available to further reduce the noise level of the outdoor unit.
Lightweight outdoor unit: The lightweight outdoor unit offers great flexibility for installation.
Specifications
Efficiency
Model SRK25ZTL-W/SRC25ZTL-W
Nominal heating capacity (min – max): 3.0 (1.0 – 4.8) kW
Nominal cooling capacity (min – max): 2.5 (0.8 – 3.2) kW
Power consumption heating / cooling: 0.66 / 0.58 kW
COP (heating) / EER (cooling): 4.55 / 4.31
Seasonal COP (heating) / seasonal EER (cooling): 4.70 / 6.90
Indoor unit SRK25ZTL-W
Air flow (H/M/L) heating: 11 / 9.4 / 6.5 m3/min
Sound level (H/M/L) heating: 41 / 36 / 29 dB(A)
Air flow (H/M/L) cooling: 10 / 8.0 / 5.3 m3/min
Sound level (H/M/L) cooling: 41 / 36 / 26 dB(A)
Size: 294 / 798 / 210 mm
Weight: 9 kg

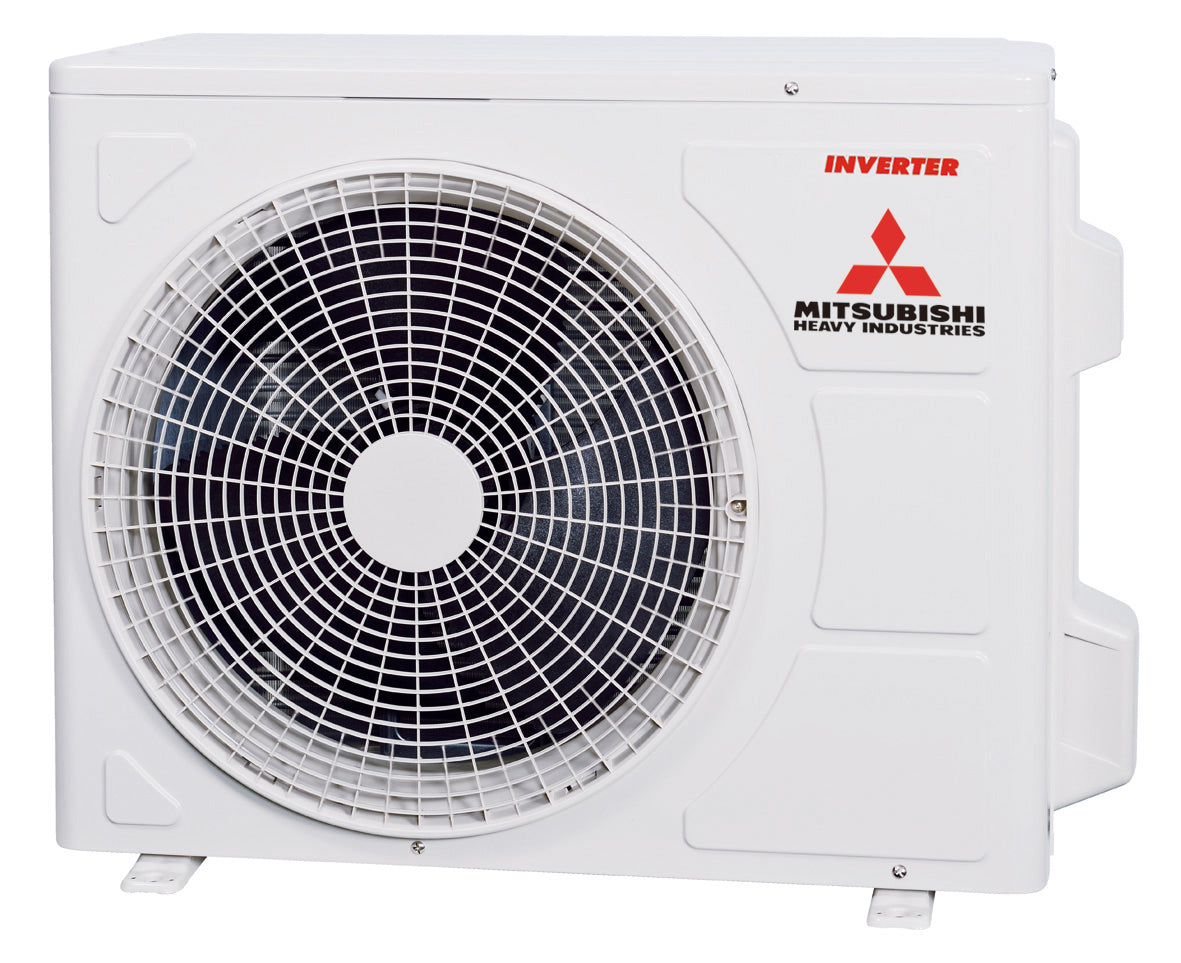

Outdoor unit SRC25ZTL-W
Sound level cooling/heating: 43/44 dB(A)
Size: 540 x 645 (+57) / 245 mm
Weight: 24 kg
Electrical data
Power source: 1ph 220-240VAC/50Hz
Power source rating MCB: 16 A
Interconnecting wires (Dia): 1.5 mm2
Max running current: 9 A
In the box:
1 x Mitsubishi Heavy Industries Air Conditioning Heat Pump SRK25ZTL-W Standard Plus Wall 2.5Kw/9000Btu A++ Indoor Unit
1 x Mitsubishi Heavy Industries Air Conditioning Heat Pump SRC25ZTL-W Standard Plus Wall 2.5Kw/9000Btu A++ 220-240V 50Hz
1 x Infrared Remote Controller
1 x Wall Bracket BJ Type 2 Brackets 60kg Load
1 x Air Conditioning Pipe Kit 1/4″ + 3/8″ 2m
