EMPOWER YOUR OFF-GRID LIFESTYLE WITH 2000W WIND TURBINE AND LITHIUM BATTERY KIT
System Components:
Wind Turbine Generator:
Missouri Freedom™ Falcon 3 Blade 2000W Wind Turbine and Control Panel for Lithium Battery
Battery Bank: 2x PYLONTECH US5000 4.8kWh Lithium Ferro Phosphate (LiFePO4) Battery.
Power Inverter: Off-Grid 2000W 48V Pure Sine Wave Power Inverter for seamless DC to AC conversion.
System Operation:
The Missouri Freedom™ Wind Turbine generates robust 3-phase AC electricity. This power undergoes processing through an AC/DC rectifier and Voltage Reducing Device transforming it into a stable 48V direct current. The MidNite Classic MPPT Charge Controller efficiently charges the LiFePO4 Battery Bank, ensuring a steady power supply. The Inverter then draws electricity from the Battery Bank, converting it into standard household AC electricity, catering to the needs of appliances and electric tools in homes or businesses.
Global Impact by Missouri Wind and Solar:
Headquartered in Seymour, Missouri, USA, Missouri Wind and Solar has left an indelible mark worldwide, providing exceptional turbines to diverse clients. From supplying turbines to an orphanage in Jamaica to supporting an elementary school in Vietnam, the company has showcased the adaptability and reliability of its solutions. Following a devastating hurricane in Puerto Rico, Missouri Wind and Solar played a pivotal role in restoring energy systems. Their turbines now power a remote radio station in Alaska, emphasising the versatility and resilience of their technology. Winning a substantial federal contract with the US Army highlights their commitment to large-scale projects, although the majority of their clients are DIY enthusiasts. Missouri Wind and Solar remains dedicated to fostering small-scale alternative energy initiatives.
Choose Missouri Wind & Solar for Reliable Off-Grid Wind Power Solutions.
▼ WIND POWER SYSTEM Features

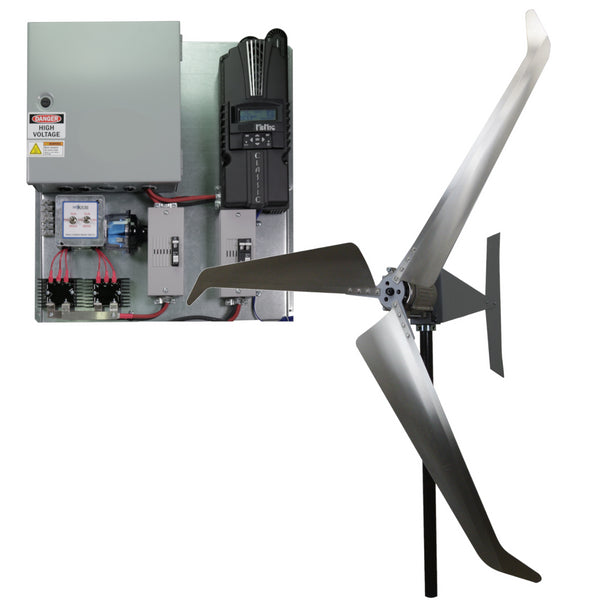

MidNite Classic MPPT Charge Controller
Simply one of the most efficient Wind MPPT controllers on the market made in the USA
The Midnite Classic MPPT Charge Controller can nearly double the output of your wind turbine over standard or PWM charge controllers by using a 16 point customization MPPT power curve. It’s like having a sports car with 16 automatic gear changes to get you the most power at any speed!
Heavy-gauge galvanized steel mounting board with folded standoffs and pre-punched wall mounting holes
All components are internally grounded to the board which allows for easy grounding, saving you hours of time and frustration.
Two breaker boxes boxes pre-wired with the wind input breaker and battery output breaker
Our custom breaker box houses a MidNite 100 amp double pole breaker on the battery side of the controller for safety that also serves as a convenient disconnect and one 150 volt MidNite breaker for the wind turbine input that also serves as a convenient separate wind turbine disconnect.
Dual Wind Turbine Brake Switch and Dual Rectifiers
Wiring is housed in electrical EMT conduit
Plug and play: Simply bolt or screw the unit into the wall and make your wind turbine and battery bank connections (no crimping or heat shrink needed, just insert and tighten down)
Two 8 foot heavy-duty pre-wired #4 gauge flexible battery cables with lugged & heat shrink sealed battery ends
Perfect for residential or commercial, off-grid use
MidNite’s pre-wired battery temperature sensor ensures batteries do not overheat in charging cycle (peel the tape and stick to one of your batteries)
Maximizes performance for your inverter or charge controller
Sensor is attached to a 15′ cable
▼ WIND POWER SYSTEM SPECIFICATIONS
Main components:
2000W WIND POWER SYSTEMS include:
1x MISSOURI FREEDOM™ FALCON 3 BLADES 2000W 48VDC WIND TURBINE;
2x 12/3 SJOO 3 PHASE WIND TURBINE CABLE 30.5m (100ft);
1x WIND TURBINE CONTROL PANEL WITH VOLTAGE REDUCING DEVICE ABD MIDNITE CLASSIC MPPT WIND CHARGE CONTROLER;
2x PYLONTECH US5000 4.8KWH LIFEPO4 BATTERY;
1x PHOTONIC UNIVERSE OFF-GRID 2000W 48V PURE SINE WAVE POWER INVERTER.
MISSOURI FREEDOM FALCON 3 BLADES 2000W WIND TURBINE
Origin: USA
Rated power: 2000W
Working voltage: 48VDC
Wind rotor diameter: 2.05m (80.5 inches)
Start-up wind speed: 2.7m/sec
Cut-off wind speed: 55.9m/sec
Alternator: Permanent Magnet Generator™
Blade material: Carbon fibre
Turbine weight: 22.2kg
MIDNITE CLASSIC 250 MPPT WIND CHARGE CONTROLER
Origin: USA
Type: Wind, solar, or Hydro
Working voltage: 58.4VDC
Working current: 55A
Compatible battery: AGM, Gel, and Lithium Batteries
Temperature range: -40 … +50 °C (Automatic detating above +25 °C)
Size: 378x152x102mm
Wight: 5.45kg
PYLONTECH US5000 4.8KWH LITHIUM-ION (LFP) SOLAR BATTERY
Origin: China
Battery Type: Lithium-Ferro-Phosphate (LFP)
Nominal Capacity: 4.8-76.8kWh
Usable Capacity: 4.56kWh – 72.96kWh
Nominal Voltage: 48V
Charge/Discharge Current: Recommended: 50A; Max. 100A
Scalability: Up to 16 units in parallel
Design life: 15+ years @ 25°C
Communixation Port: RS485, CAN
Cycle Life: >6000 (25°C, @95% DOD)
Installation Location: Indoor
Cooling: Natural
Single String Quantity: 16
Operating Temperature: Charge 0°C ~ +50°C Discharge -10°C ~ +50°C
IP Rating: IP20
Net Weight: 38kg
Size: 442 * 400 * 161mm
PHOTONIC UNIVERSE OFF-GRID 2000W 48V PURE SINE WAVE INVERTER
Origin: UK
Input: 48 (40-60) VDC
Output: 220-230VAC 50Hz
Output waveform: Pure sine wave
THD: <3%
Continuous power: 2000W
Surge Power: 4000W
Peak efficiency: 90%
Low battery shut down: 40.0 +/- 2.0 VDC
Low battery alarm: 42.0 +/- 2.0 VDC
High voltage shut down: 62.0 +/- 2.0 VDC
Thermal shut down: 60 +/- 5°C
Rated USB output: 5VDC 2A
Wireless remote control radius: Approx. 50m
Net Weight: 5kg
Size: 390 * 220 * 95mm
▼ WIND POWER SYSTEM IN THE BOX
1x MISSOURI FREEDOM™ FALCON 3 BLADES 2000W 48VDC WIND TURBINE GENERATOR- 1 X Carton,
2x 12/3 SJOO 3 PHASE WIND TURBINE CABLE 30.5m (100ft) - 1 X Carton,
2x PYLONTECH US5000 4.8KWH LIFEPO4 BATTERY - 1 X Pallet,
1x PHOTONIC UNIVERSE OFF-GRID 2000W 48V PURE SINE WAVE POWER INVERTER - 1 X Carton,
USER MANUALS X 1 Set
