Residential Hybrid PV System Kit – 3.6kW – 5,6 or 7 Panels
Your chosen system consists of a Sunsynk 3.6kW AC 7kWp ECCO Hybrid Inverter with JA Solar 410W Monocrystalline PERC Half-Cell MBB Black Frame MC4 modules and Sunsynk CATL Battery LFP 5.12kWh.
Mounting type for all packages is Schletter on Roof. More information can be found here: https://www.schletter-group.com/mounting-systems/pitched-roof/
Products included in Kit (Based on Slate Option) Fixings will vary based on selection

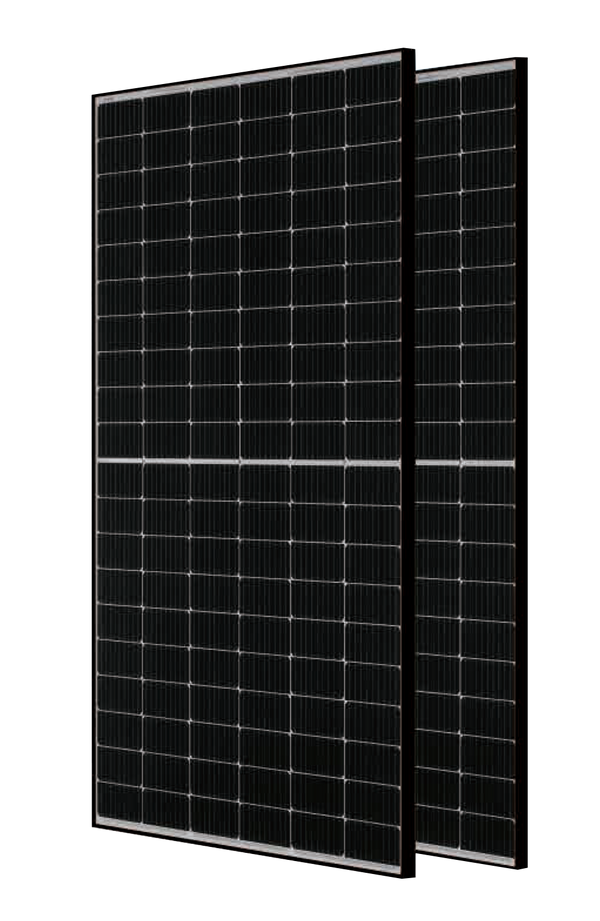

JA Solar 410W Monocrystalline PERC Half-Cell MBB Black Frame MC4
MC4 In Line Fuse 20A 1500V DC single
Dektite Lead Multicable Solar Flashing (Tiled or Slate)
End Clamp Rapid16 30-40mm Black
Mid Clamp Rapid16 30-40mm Black
Slate Roof Hook with Slate Replacement Tile Rapid2+ Slate125
Module Bearing Profile Eco05 – 4.75m
Module Bearing Profile Eco05 – 3.55m
MC4 Connector Twin Pack ( Kit 1 ) 0014/0015
4mm2 single-core DC cable 25m – Black
K&N Single Phase AC Switch Disconnector 25A
Emlite 1-ph Bi-Directional generation meter 100A (1000 pulse/kWh) incl. Cover
PV on Roof and Hazard Labels Pack
Sunsynk 3.6kW AC 7kWp ECCO Hybrid Inverter
Sunsynk CATL Battery LFP 5.12kWh
Pair of BATCAB35-1M cables
KETO Battery Disconnector with 125A Fuses
35mm2 Cable Terminal Lug M8 – Single
Battery to Inverter Cable Pack Long for Sunsynk CATL only
Battery Wall Mount Bracket Sunsynk for CATL batteries
**CARRIAGE FOC TO MOST UK POSTCODES**
Panel Features:
Higher output power (410W).
Lower levelized cost of energy (LCOE).
Better shading tolerance.
Enhanced tolerance for mechanical loading.
12-year product warranty and 25-year linear power output warranty.
Comes supplied with staubli MC4 connectors.
Panel Specification:
Supplier Part No JAM54S30-410/MR
Weight 19kg
Length 1,722mm
Width 1,134mm
Depth 30mm
Rated Power 410W
MCS Reference BABT 8515-231
Voltage at Maximum Power Point 31.45V
Short Circuit Current 13.95A
Current at Maximum Power Point 13.04A
Voltage at Open Circuit 37.32V
Temperature Coefficient (Mpp) -0.35%
Clamp Position on Panel Long and Short Side
Connector Type MC4
Efficiency 21%
Fire Performance UL Type 1
Operating Temperature -40°C~+85°C
No. Of Cells 108 (6×18)
Front Glass 2.8mm
Junction Box IP68, 3 Diodes
Product Warranty 15 years
Linear Power Output Warranty 25
Inverter Features:
Dual MPPT design
Compatible with Lithium-ion batteries and Lead Acid batteries
5-year warranty as standard
IP65 rated
Anti-islanding protection
Fully programmable power export
Automatic switching from Grid-Tied to Off-Grid mode
Up to 16 units with the same firmware can be paralleled.
Inverter Specification:
Supplier Part No SYNK-3.6K-SG04LP1 ECCO
Weight 20.5kg
Min PPT Voltage 150V
Max PPT Voltage 425V
DC Startup Voltage 125V
DC Shutdown Voltage 0V
Rated Power 3,600W
Max Input Voltage 500V
Max DC Power 7,000W
Max AC Power (5 Minutes) 3,960W
Surge AC Power (1 Second) 5,400W
Max DC Current 26A
Max DC Inputs 2
Connector MC4
Euro Efficiency 99.9%
MPPT Quantity 2
Grid Type Single Phase
Noise <30dB
Protection Degree IP65
Installation Style Wall-Mounted
Warranty 5 Years
Operating Temperature Range -45~60°C, >45°C Derating
Battery Features
Up to 16 units with the same firmware can be paralleled
IP rating 40
Self-monitoring function to detect abnormalities
Excellent thermal stability
Battery Specifications
Supplier Part No. Sunsynk CATL Battery LFP 5.12kWh
Weight 47.5kg
Rated Power 5,120W
Battery Type Lithium Ion
Nominal Energy 5120Wh
Depth of Discharge 100%
Voltage 48V
Continuous Discharge Rate (Normal Use) 2,400W
Maximum Discharge Rate (5 Minutes) 4,800W
Surge Discharge Rate (15 Seconds) 9,600W
Maximum Charge Rate (5 Minutes) 4,800W
Height 132mm
Width 440mm
Depth 530mm
Cell Type Lithium Ferro Phosphate (LifePO4 or LFP)
IP Rating IP20
Expected Life at 25°C Greater than 10 years if used as per warranty terms
Minimum Operating Voltage 44.8V
Maximum Operating Voltage 57.6V
Max. Pulse Discharging Current 200A（2C, 30S, 25°C ± 2°C SOC≥40%）
Standard Charging Method 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C
Insulation Resistance >100MΩ
