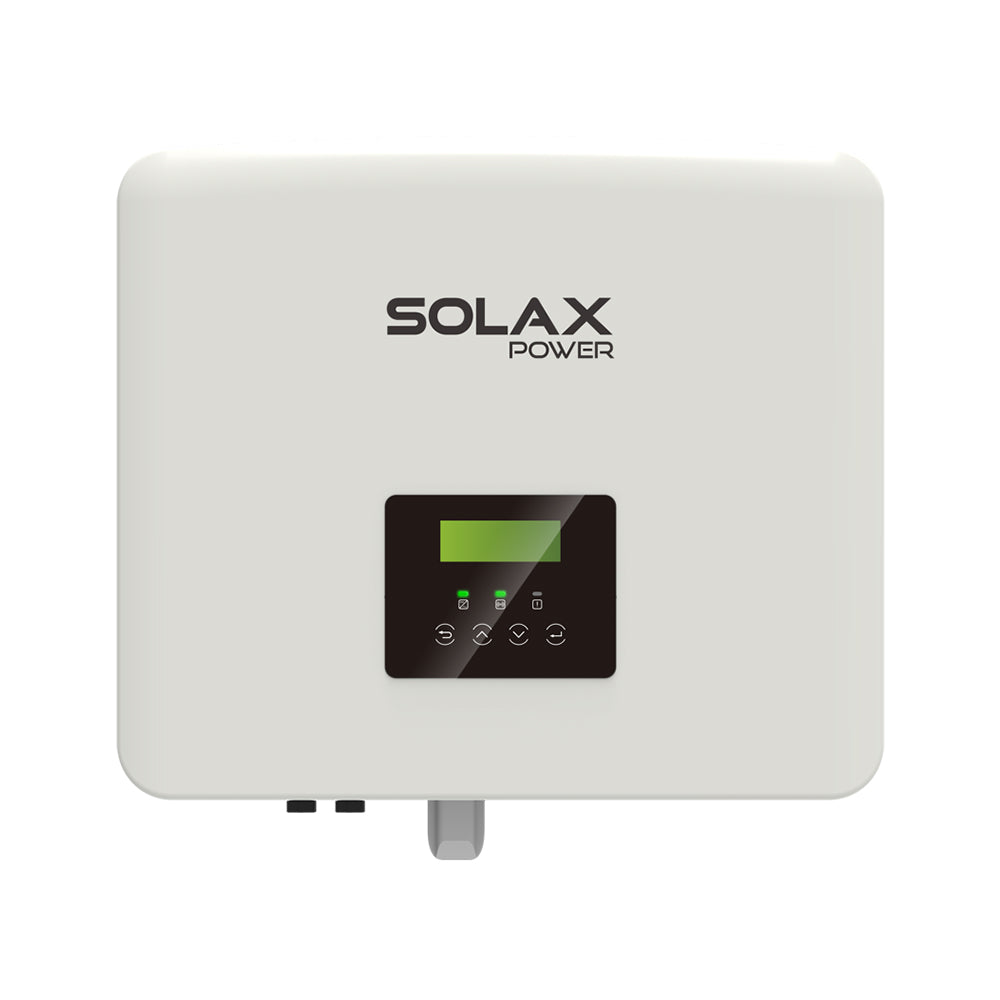

EXPERIENCE UNINTERRUPTED POWER WITH SOLAX 3.0KW HV SINGLE PHASE HYBRID INVERTER
Trade only product.
Homeowners, pay zero VAT and save time when you order an installation via one of our trusted partners! Click here to enquire today.
Are you an installer? This product is designed for quick installation. Become a partner, delight your customers and grow your business. Call 020 8064 0335 to become an authorised partner today.
SolaX is a reputable company renowned for its expertise in the development and production of renewable energy products, with a particular focus on solar inverters and energy storage solutions for both residential and commercial applications.
SolaX is proud to launch the eagerly anticipated third generation of their market-leading solar battery storage product, the Hybrid inverter. The Solax 3.0kW HV Single Phase Hybrid Inverter is compatible with the SolaX lithium-ferro-phosphate (LiFePO4) SolaX Triple Power HV battery solutions. SolaX 3.0kW HV Single Phase Hybrid Inverter can pair the batteries SolaX Triple Power T30 3.0-12.0kWh, SolaX Triple Power T58 HV 5.8-17.3kWh, and SolaX Triple Power T-BAT-SYS-HV-S3. 6 7.37 – 47.92kWh.
FEATURES:
Highly efficient:
200% PV oversized and up to 110% AC overload output
Higher efficiency of charging and discharging, up to 97.0%
Built-in shadow tracking function
Economic:
16A DC input current, support high power solar panel
Up to 150% PV input
Store the surplus energy from PV to battery
Low start output voltage
Less energy loss on battery to inverter supply
Intelligent:
Up to 120% EPS output for 1h
Switchover time <10ms
Quick configuration with U-disk
Lithium-ion & Lead-acid battery compatible
CT compatible, loads respond within 0.3s
Intelligent loads management (e.g., Heat pump)
On & Off-grid parallel function, up to 15kW
5 work modes, 2 charging periods available
VPP ready, ancillary service in power market
Fast Delivery Across the UK: Experience quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
Model: X1-HYBRID-G4-D (D means "with DC switch")
BATTERY
Battery Type: Lithium-Ion (LiFePO4)
Battery Voltage Range: 80 ~ 480V
Max. Continuous Charge/Discharge Current: 30A
DC INPUT PV
Max. PV Array Power: 6,000W
Max. PV input power* (PV1+PV2): 4,500W
Max. Input Voltage: 600V
Start output voltage: 90V
Nominal input voltage: 360V
MPPT Voltage Range: 70 ~ 550V
No. of MPPT trackers / Strings per MPP tracker: 2 (1/1)
Max. input current (input PV1 / input PV 2): 16A/16A
Max. short circuit current (input PV1 / input PV 2): 20A/20A
MPPT Number / Max. Input Strings Number per MPPT: 2/(1/1)
AC INPUT/OUTPUT
Nominal AC Output Power: 3000W
Max. AC Output Apparent Power: 3300VA
Max. AC Output Current: 14.4A
Max. AC Input Apparent Power: 6300W
Max. AC Input Current: 27.4A
Nominal AC Voltage: 230-240VAC
Nominal Grid Frequency: 50/60Hz
Displacement Power Factor: 0.8 leading ~ 0.8 lagging
THDi (Rated Power): <2%
EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY)
Nominal Output Power: 3000W
Peak Apparent Power: 3600W 1hrs.
Max. Continious Current: 13A
Nominal Voltage [V]; Frequency [Hz]: 230V; 50/60Hz
Switch Time: <10ms
Parallel Operation: YES
SYSTEM DATA
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
Battery Charge / Discharge Effciency **: 97.0 / 97.0
Protection Degree: IP65
Operating Temperature: -35 ~ +60 (Derating above +45)
Relative Humidity: 0-100%
Size: 482×417×181 mm
Net Weight: 24kg
* Indicates that all model single PV1 & PV2 input power upper limit is 5000 W.
** PV to BAT Max. efficiency 97.0%, BAT to AC Max. efficiency 97.0%.
In the Box:
1 X Solax 3.0kW HV Single Phase Hybrid Inverter,
1 X Solax 3.0kW HV Single Phase Hybrid Inverter User's Manual.
