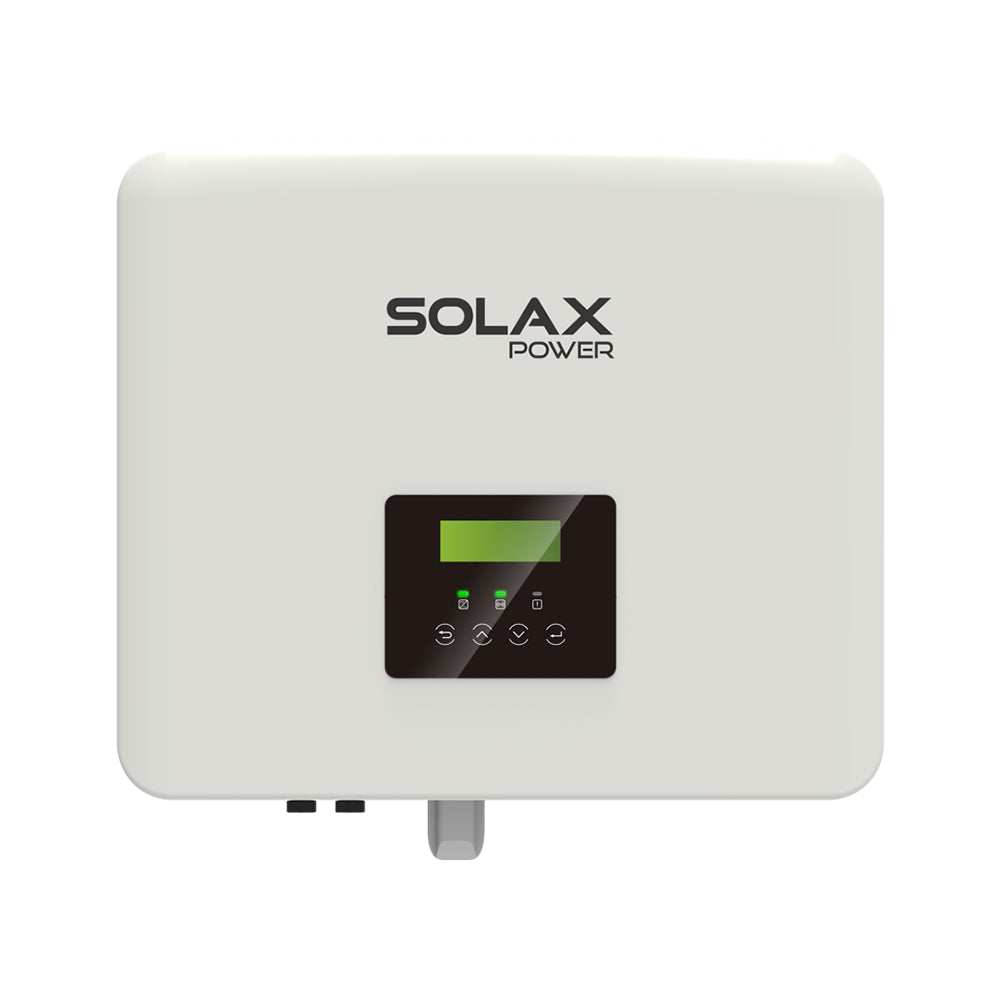

SOLAX 6.0KW HV SINGLE PHASE HYBRID INVERTER (INC WIFI)

ENSURE ENERGY INDEPENDENCE WITH SOLAX 6.0KW HV SINGLE PHASE HYBRID INVERTER

Trade only product – MCS or NICEIC membership required.Â

Homeowners – pay zero VAT, save money and time, when you order an installation via one of our trusted partners! Click here to enquire today.

Are you an installer? This product is designed for quick installation. Become a partner, delight your customers and grow your business. Call 020 8064 0335 to become an authorised partner today.

SolaX is a reputable company renowned for its expertise in the development and production of renewable energy products, with a particular focus on solar inverters and energy storage solutions for both residential and commercial applications.

SolaX is proud to launch the eagerly anticipated new generation of their market-leading solar battery storage product, the Hybrid inverter. The SolaX 6.0kW HV Single Phase Hybrid Inverter is compatible with the SolaX lithium-ferro-phosphate (LiFePO4) SolaX Triple Power HV battery solutions. SolaX 6.0kW HV Single Phase Hybrid Inverter can pair the batteries SolaX Triple Power T30 3.0-12.0kWh, SolaX Triple Power T58 HV 5.8-17.3kWh, and SolaX Triple Power T-BAT-SYS-HV-S3. 6 7.37 – 47.92kWh.

FEATURES:

Highly efficient:
200% PV oversized and up to 110% AC overload output
Higher efficiency of charging and discharging, up to 97.0%
Built-in shadow tracking function

Economic:
16A DC input current, support high power solar panel
Up to 150% PV input
Store the surplus energy from PV to battery
Low start voltage
Less energy loss in battery to inverter supply
Intelligent:
Up to 120% EPS output for 1h
Switchover time <10ms Quick configuration with U-disk Lithium-ion & Lead-acid battery compatible CT compatible, loads respond within 0.3s Intelligent loads management (e.g., Heat pump) On & Off-grid parallel function, up to 15kW 5 work modes, 2 charging periods available VPP ready, ancillary service in power market Fast Delivery Across the UK: Experience quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland). Detailed specifications: Model: X1-HYBRID-6.0-D (D means "with DC switch") BATTERY Battery Type: Lithium-Ion (LiFePO4) Battery Voltage Range: 80 ~ 480V Max. Continuous Charge/Discharge Current: 30A DC INPUT PV Max. PV Array Power: 12,000W Max. PV input power* (PV1+PV2): 9,000W Max. Input Voltage: 600V Start output voltage: 90V Nominal input voltage: 360V MPPT Voltage Range: 70 ~ 550V No. of MPPT trackers / Strings per MPP tracker: 2 (1/1) Max. input current (input PV1 / input PV 2): 16A/16A Max. short circuit current (input PV1 / input PV 2): 20A/20A MPPT Number / Max. Input Strings Number per MPPT: 2/(1/1) AC INPUT/OUTPUT Nominal AC Output Power: 6000W Max. AC Output Apparent Power: 6600VA Max. AC Output Current: 28.6A Max. AC Input Apparent Power: 9,200W Max. AC Input Current: 40A Nominal AC Voltage: 230-240VAC Nominal  Grid Frequency: 50/60Hz Displacement Power Factor: 0.8 leading ~ 0.8 lagging THDi (Rated Power): <2% EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY) Nominal Output Power: 6000W Peak Apparent Power: 7,200W 10min. Max. Continous Current: 26.1A Nominal Voltage [V]; Frequency [Hz]: 230V; 50/60Hz Switch Time: <10ms Parallel Operation: YES SYSTEM DATA Max. Effciency: 97.6% Euro Efficiency: 97.0% Battery Charge / Discharge Effciency **: 97.0 / 97.0 Protection Degree: IP65 Operating Temperature: -35 ~ +60 (Derating above +45) Relative Humidity: 0-100% Size: 482×417×181 mm Net Weight: 24kg * Indicates that all model single PV1 & PV2 input power upper limit is 5000 W. ** PV to BAT Max. efficiency 97.0%, BAT to AC Max. efficiency 97.0% In the Box: 1 X Solax 6.0kW HV Single Phase Hybrid Inverter, 1 X Solax 6.0kW HV Single Phase Hybrid Inverter User's Manual. Frequently Asked Questions: Don't see the answer to your question? Call us on 020 8064 0335 or email [email protected].
