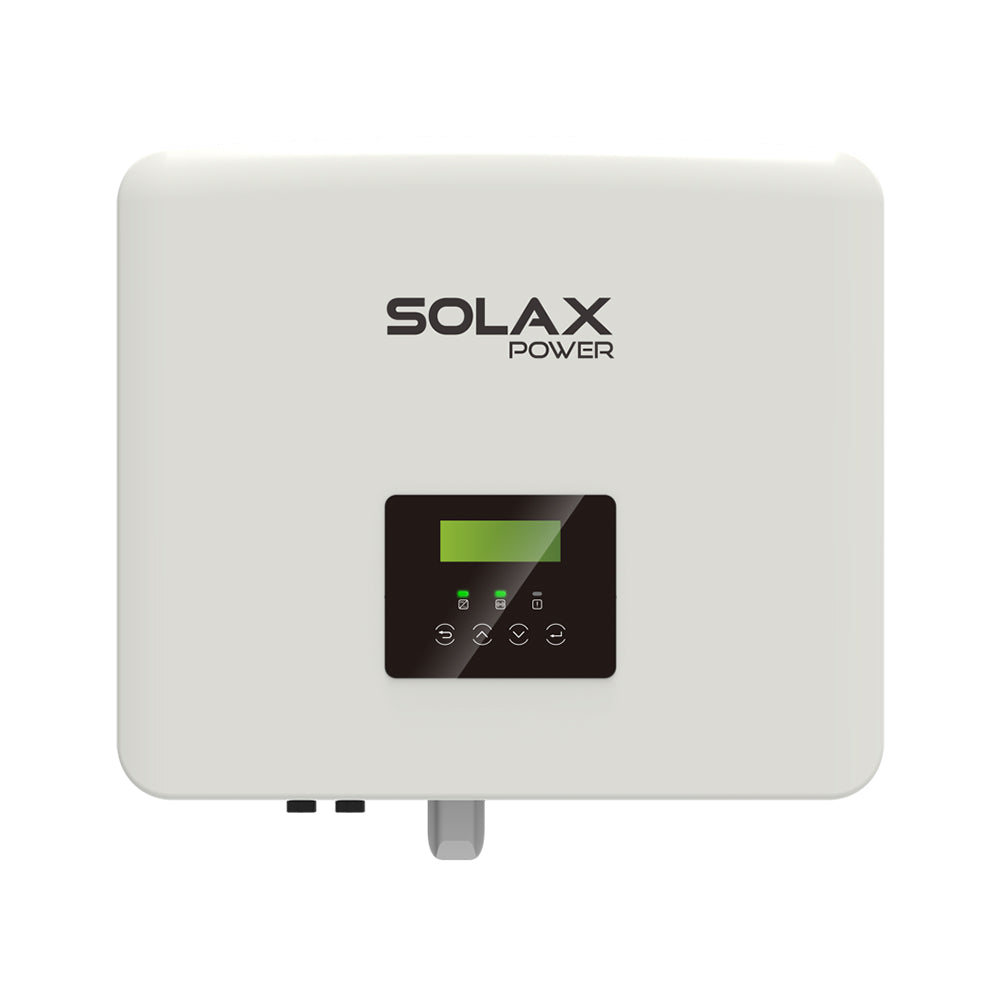

OPTIMISE YOUR ENERGY MANAGEMENT WITH SOLAX 7.5KW HV SINGLE PHASE HYBRID INVERTER
SolaX is a reputable company renowned for its expertise in the development and production of renewable energy products, with a particular focus on solar inverters and energy storage solutions for both residential and commercial applications.
SolaX is proud to launch the eagerly anticipated new generation of their market-leading solar battery storage product, the Hybrid inverter. The Solax 7.5kW HV Single Phase Hybrid Inverter is compatible with the SolaX lithium-ferro-phosphate (LiFePO4) SolaX Triple Power HV 5.8kWh battery solutions. Solax 7.5kW HV Single Phase Hybrid Inverter can pair the batteries SolaX Triple Power T30 3.0-12.0kWh, SolaX Triple Power T58 HV 5.8-17.3kWh, and SolaX Triple Power T-BAT-SYS-HV-S3. 6 7.37 – 47.92kWh.
Trade only product.
Pay zero VAT, save money and time, when you order an installation via one of our trusted partners! Click here to enquire today.
Are you an installer? This product is designed for quick installation. Become a partner, delight your customers and grow your business. Call 020 8064 0335 to become an authorised partner today.
FEATURES:
Highly efficient:
200% PV oversized and up to 110% AC overload output
Higher efficiency of charging and discharging, up to 97.0%
Built-in shadow tracking function
Economic:
16A DC input current, supports high power solar panels
Up to 150% PV input
Store the surplus energy from PV in the battery
Less energy loss from battery to inverter
Intelligent:
Up to 120% EPS output for 1h
Switchover time <10ms
Quick configuration with U-disk
Lithium-ion & Lead-acid battery compatible
CT compatible, loads respond within 0.3s
Intelligent loads management (e.g., Heat pump)
On & Off-grid parallel function, up to 15kW
5 work modes, 2 charging periods available
VPP ready - provide ancillary service in the power market
Fast Delivery Across the UK: Experience quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Same day collection or local delivery in London and the South-East
Detailed specifications:
Model: X1-G4-HYBRID-7.5-D (D means "with DC switch")
BATTERY
Battery Type: Lithium-Ion (LiFePO4)
Battery Voltage Range: 80 ~ 480V
Max. Continuous Charge/Discharge Current: 30A
DC INPUT PV
Max. PV Array Power: 15,000W
Max. PV input power* (PV1+PV2): 10,000W
Max. Input Voltage: 600V
Startup output voltage: 90V
Nominal input voltage: 360V
MPPT Voltage Range: 70 ~ 550V
No. of MPPT trackers / Strings per MPP tracker: 2 (1/1)
Max. input current (input PV1 / input PV 2): 16A/16A
Max. short circuit current (input PV1 / input PV 2): 20A/20A
MPPT Number / Max. Input Strings Number per MPPT: 2/(1/1)
AC INPUT/OUTPUT
Nominal AC Output Power: 7500W
Max. AC Output Apparent Power: 7500VA
Max. AC Output Current: 32.6A
Max. AC Input Apparent Power: 9,200W
Max. AC Input Current: 40A
Nominal AC Voltage: 230-240VAC
Nominal Grid Frequency: 50/60Hz
Displacement Power Factor: 0.8 leading ~ 0.8 lagging
THDi (Rated Power): <2%
EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY)
Nominal Output Power: 7500W
Peak Apparent Power: 7500W 10min.
Max. Continous Current: 32.6A
Nominal Voltage [V]; Frequency [Hz]: 230V; 50/60Hz
Switch Time: <10ms
Parallel Operation: YES
SYSTEM DATA
Max. Effciency: 97.6%
Euro Efficiency: 97.0%
Battery Charge / Discharge Effciency **: 97.0 / 97.0
Protection Degree: IP65
Operating Temperature: -35 ~ +60 (Derating above +45)
Relative Humidity: 0-100%
Size: 482×417×181 mm
Net Weight: 25kg
* Indicates that all model single PV1 & PV2 input power upper limit is 5000 W.
** PV to BAT Max. efficiency 97.0%, BAT to AC Max. efficiency 97.0%.
In the Box:
1 X SolaX 7.5kW HV Single Phase Hybrid Inverter,
1 X SolaX 7.5kW HV Single Phase Hybrid Inverter User's Manual.
