Description

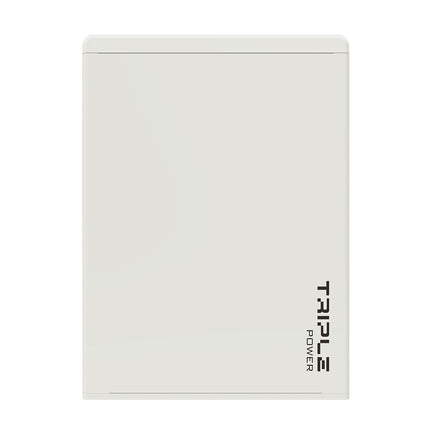

The perfect match to X1-Hybrid, X3-Hybrid and X1-AC, the SolaX Triple Power LFP battery is available as a Master Battery 5.8kWh and a Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.
Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 1, 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).
Additional features:
Scalable to 23.2kWh
Up to 4kW charge/discharge
High Voltage means thinner cables are required.
Compact Design
100% Depth of discharge
6000 life cycles
Easy installation – plug and play with all cables supplied
Need more storage capacity? Take a look at the SOLAX BMS Parallel box for increased capacity. This product enables the installation of 2, 4, or 6 batteries in single-phase setups, and 4, 6, or 8 batteries in three-phase configurations, all without the need for a Master.
This is a HV11550-58 Extension (Slave) Battery only, it requires HV-T-BAT-H-58 Main Battery(Master) to work and can only be matched with LFP 5.8kWh Master batteries.
Please note: There are no compatibility issues between mixing the V1 and V2 generations of Solax batteries. In rare instances when an update is required, this may need to be done manually using a USB in cases where mixed versions are used.
Supplier Part No: Triple Power 5.8kWh Slave V2
Weight: 72.2 kg
Battery Type: Lithium Ion
Nominal Energy: 5800 Wh
Depth of discharge: 100.00 %
Voltage: 115 V
Continuous Discharge Rate (Normal Use): 2875 W
Maximum Discharge Rate (5 Minutes): 4000 W
Surge Discharge Rate (15 Seconds): 4000 W
Maximum Charge Rate (5 Minutes): 4000 W
