OPTIMISE YOUR ENERGY USAGE WITH 3.0KW INVERTER AND 5.8-17.3KWH AC COUPLED ENERGY STORAGE SYSTEM
Trade only product – MCS or NICEIC membership required
AC Coupled Energy Storage System (ESS) offers a strategic solution for harnessing energy efficiently from cost-effective sources like solar panels and off-peak Octopus mains power. This system empowers users to utilise stored energy effectively, avoiding low feed-in tariffs and expensive peak-rate power.
The Government recently announced Zero VAT on new residential energy storage batteries when purchased from your installer. Take advantage of our cost effective battery installation service (starting at just £199) and eliminate VAT on your battery installation! Click here to request a quote or contact us via live chat or call 020 8064 0335 for live expert advice.
The SolaX X1-AC 3.0kW AC Battery Inverter and 5.8-17.3kWh SolaX T58 5.8kWh Battery Energy Storage System (5.8-17.3kWh/3.0kW AC Coupled ESS) comprises:
1x SolaX T58 Triple Power HV 5.8kWh LFP Battery System including
SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2, and
1x or 2x SolaX Triple Power HV 5.8kWh LFP Main Battery SLAVE V2,
1x SolaX X1-AC 3.0kW AC Coupled Battery Inverter.
This 5.8-17.3kWh/3.0kW AC Coupled ESS efficiently manages energy usage, ensuring a stable electricity supply and reducing costs by charging the battery with solar or low-priced off-peak Octopus electricity. Coupled with a private power source like on-grid solar panels, it provides a continuous 24/7 power supply for your home.
The 3.6kW X1-AC 3.0kW AC Coupled Inverter is designed for compatibility with an external backup generator, seamlessly supplying electricity during prolonged grid outages when the battery storage is emptied.
▼ 5.8-17.3KWH/3.0KW AC COUPLED ESS FEATURES
SolaX 5.8kWh Triple Power T58 Master ans Slave Battery Module: A high-performance, scalable battery storage module with a modular design for maximum flexibility. Easy installation, plug-and-play solution, 95% charge/discharge efficiency, 100% depth of discharge, and a cycle life of over 6000 cycles.

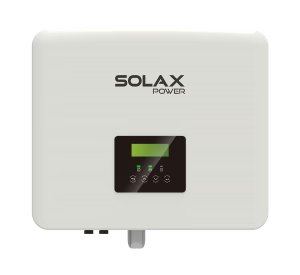

SolaX X1-AC 3.0kW AC Coupled Inverter: A high-quality inverter converting solar energy to AC energy, compatible with high voltage batteries. Suitable for indoor or outdoor installation, featuring natural cooling, quiet operation, and low maintenance.
SolaX X1-AC 3.0kW AC Inverter Working Modes:
Self-use (default): Because there is no PV supplied, battery will discharge for local loads firstly, and grid will supply power when the battery capacity is not enough.
Feed in priority: The priority of inverter output power is: feeding to the grid –> supplying the load –> charging the battery. This work mode applies to the area with high feed-in tariff.
Force time use: In this work mode the charging and discharging time can be set flexibly, and
Back up mode: Battery will stop discharing to keep higher capacity when the grid is on. Only when the gird is off is not enough, battery will start to discharge to keep the emergency load working normally. This work mode applies to the area where suffering from blackout regularly.
The system seamlessly integrates with smart Octopus tariffs, allowing automatic optimization for Plunge Prices and super cheap prices. With solar panels and the battery storage system, your electric unit price can be drastically reduced!
Enjoy a 2-3 working day delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
▼ 5.8-17.3KWH/3.0KW AC COUPLED ESS SPECIFICATIONS
SOLAX TRIPLE POWER T58 BATTERY STACK MASTER AND SLAVE V2
Battery Type: Lithium Iron Phosphate (LiFePO4)
Total Energy: 5.8kWh
Useable Energy: 5.1kWh
Nominal Voltage: 115.2V
Operating Voltage Range: 100-131V (MASTER)/200-262V (MASTER + SLAVE)/300-393V (MASTER + 2xSLAAVE)
Rated Power: 2.8kW
Max. Power: 4.0kW
Recommended Charge/Discharge Current: 25A
Max. Charge/Discharge Current: 35A
Available Charge/Discharge Temperature Range: 0 ~ +55°C
Charge/Discharge Efficiency: 95%
Cycled life (90% DOD): 6000 cycles
Depth of Discharge: 100%
Expected Life Time / Warranty: 10 years
Protection Level: IP65
Net Weight: MASTER – 72.2kg; SLAVE: 68.5kg
Size: MASTER: 474×193×708mm, SLAVE: 474×193×647mm
SOLAX 1 PHASE X1-AC 3.0KW AC COUPLED BATTERY INVERTER
OUTPUT DC (BATTERY)
Rated Battery Voltage: 70-400V
Recommended Battery Voltage: 300V
Max. Charge/Discharge Current: 35A
Communication Interfaces: CAN
Reverse Connect Protection: Yes
AC INPUT (GRID SIDE)
Max. Apparent AC Input: 3000VA
Max. AC Current: 13.6A
Nominal Grid Voltage (AC Voltage Range): 220/230/240V
Nominal Grid Frequency/Range: 50/60Hz
AC OUTPUT (GRID SIDE)
Nominal AC Power: 3000W
Max. AC Apparent Power: 3000VA
Nominal AC Current: 13A
Max. AC Output Current: 13.6A
Rated Grid Voltage: 220/230/240V
Rated Grid Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi: <2% @rated power
EFFICIENCY
Battery Charge/Discharge Efficiency: 96.5%/96.5%
Operating Temperature: -25 ~ +60°C (derating at 45°C)
Protection Degree: IP65
Size: 430*341.5*143mm
Net Weight: 15.5kg
▼ 5.8-17.3KWH/3.0W AC COUPLED ESS IN THE BOX
1x SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2,
1x or 2x SolaX Triple Power HV 5.8kWh LFP Main Battery SLAVE V2,
1x SolaX X1-AC 3.0kW AC Coupled Battery Inverter
▼ 5.8-17.3KWH/3.6W AC COUPLED ESS FAQ'S
