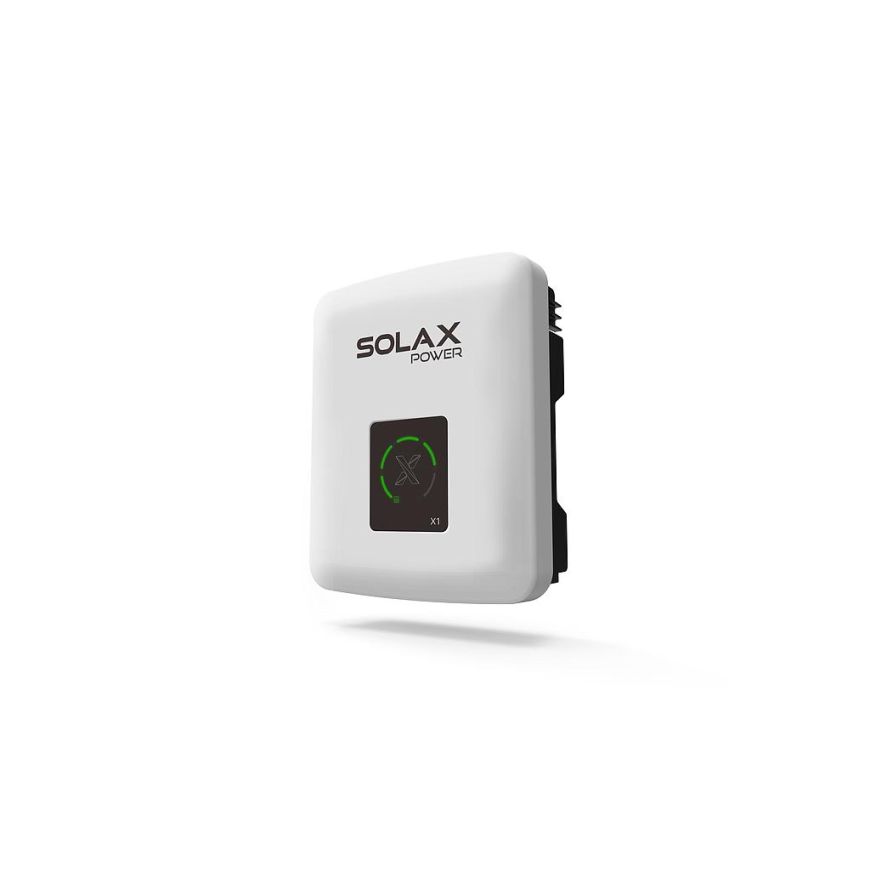

POWERING YOUR ROOFTOP REVOLUTION WITH SOLAX X1-BOOST 5.0KW GRID-TIE INVERTER
Experience superior performance with the X1-BOOST G3 inverter, featuring 150% oversizing and a built-in global MPP scan. Stay connected with user-friendly monitoring via Wi-Fi and app. Elevate your local solar journey with the exceptional X1-BOOST G3.
User-Friendly:
24H monitoring and maintenance (Optional)
Easy to install and set up
Superiop Performance:
150% oversizing and 110% overloading
Max. DC input 14A per string
Assured Safety Reliabiliaty:
AC/DC built-in Type III SPD (Optional)
Over-temperature protection
Export control function integrated
Detailed specifications:
Model: X1-5.0T
INPUT PV
Max. Input Power: 7500W
Max. Input Voltage: 600V
Start-up Input Voltage: 100V
Nominal Input Voltage: 360V
No. of Independent MPP Trackers/No of Strings per MPP Tracker: 2/1
MPP tracker voltage range: 70-580V
Max. Input Current: 14A/14A
Max. Short-circuit Current: 18A/18A
AC OUTPUT (GRID)
Rated Output Power: 5000W
Max. Output Apparent Power: 5500VA
Rated Grid Output Current: 21.7A
Nominal AC voltage / AC voltage range: 220/230/240; 180–280VAC
Nominal AC frequency / AC frequency range: 50/60;±5Hz
Power Factor: Adjustable from 0.8 leading to 0.8 lagging
THD: <3%
EFFICIENCY
Max. Efficiency: 97.8%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP66
Size: 341.5 × 430 × 143mm
Net Weight: 15kg
In the Box:
1 X SolaX X1-BOOST 5.0kW Single Phase Grid-tie PV Inverter,
1 X SolaX X1-BOOST 5.0kW Single Phase Grid-tie PV Inverter User's Manual.
