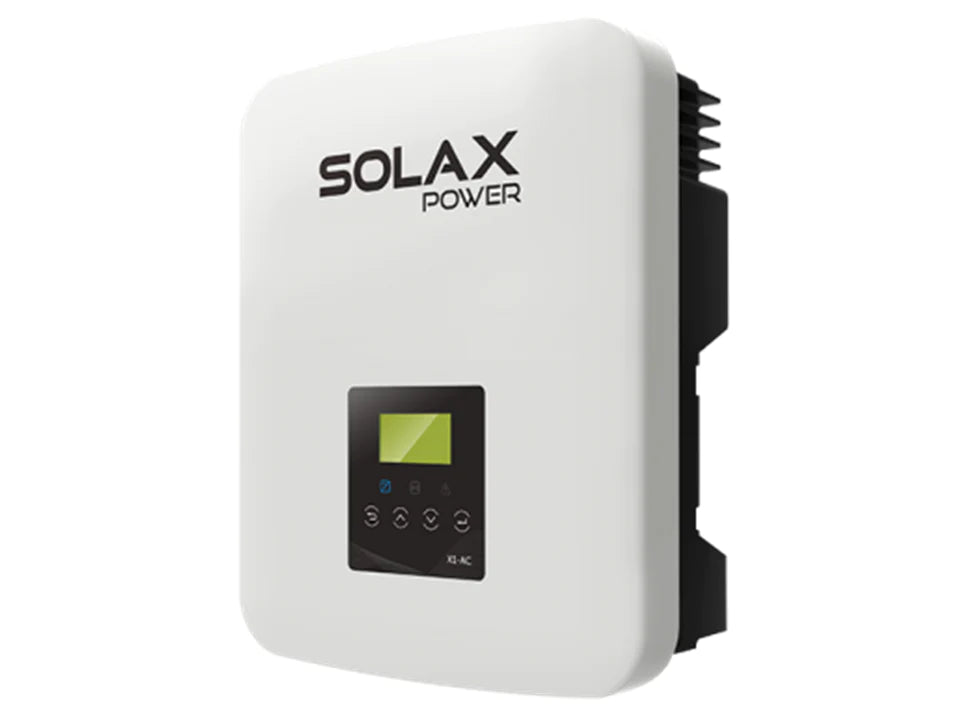

SOLAX X1-FIT 5.0W SINGLE PHASE AC COUPLED HV INVERTER

EFFORTLESS PV SYSTEM UPGRADE WITH SOLAX X1-FIT 5.0W SINGLE PHASE AC COUPLED HV INVERTER Trade Only Product – MCS or NICEIC Membership Required Seamlessly upgrade your PV system with the SolaX X1-FIT 5.0W Single Phase AC Coupled HV Inverter. This retrofit solution, compatible with any brand of single-phase inverter, achieves a remarkable maximum efficiency of up to 97%. Whether installed indoors or outdoors, it allows for remote monitoring through XCloud, offering enhanced flexibility and control over your solar energy system. Note: The SolaX X1-FIT 5.0W Single Phase AC Coupled HV Inverter supports a minimum of 1 and a maximum of 3 batteries. It’s essential to use batteries of the same capacity, as different capacities cannot be connected to one inverter. Benefits: High Voltage Battery Support: Requires thinner cables, enhancing installation efficiency. 6kW Max Charge/Discharge: Ensures optimal energy management. SolaX WiFi Stick: Enables remote monitoring via XCloud, enhancing user accessibility. Suitable for Grid Trading Applications: Responds in less than 0.5 seconds, suitable for grid trading applications. Charging from Grid Possible: Allows charging directly from the grid for added flexibility. Natural Cooling: Operates quietly with low maintenance requirements. Supplied with One CT Key Features: This high-quality inverter efficiently converts solar energy into AC energy, storing it in a battery for future use. Noteworthy features include: Addition of Batteries to Existing PV Systems: Easily integrates into existing PV systems, upgrading to solar battery storage without altering the current installation. Versatile Installation: Suitable for indoor or outdoor use with an IP65 rating. Compatible High Voltage Batteries: Compatible with high voltage batteries for enhanced storage capacity such as SolaX Triple Power T30 3.0-9.0/12.0kWh, SolaX Triple Power HV 5.8-17.3kWh, SolaX Triple Power T-BAT-SYS-HV-S2.5 5.1-33.2kWh, and SolaX Triple Power T-BAT-SYS-HV-S3.6 7.37-47.92kWh Battery Banks. Multiple Protection: Equipped with safety features such as RCD, isolation, over-voltage, over-temperature, earth protection, and short-circuit protection. Transformer-Free Design: Incorporates software and hardware protection for reliable performance. Operating Modes: The SolaX X1-FIT 5.0W Single Phase AC Coupled HV Inverter offers four operational modes catering to diverse needs: Self-Use (Default): Prioritises local loads, utilising grid power only when the battery capacity is insufficient. Back Up: Preserves higher battery capacity when the grid is on, discharging only during grid outages. Feed-in Priority: Maximises feed-in tariff benefits by prioritising grid feeding, load supply, and battery charging. Force Time Use: Allows flexible scheduling of charging and discharging times, with the option to charge from the grid. Fast Delivery Across the UK: Experience the advantages of the SolaX X1-FIT 5.0W Single Phase AC Coupled HV Inverter with swift 2-3 working days’ delivery across the UK. Detailed specifications: BATTERY Battery Type: Lithium Iron Phosphate (LiFePO4) Battery Voltage: 80-480V Max. Charge/Discharge Current: 30A INPUT AC (GRID SIDE) Max. apparent AC power: 9200VA Max. Input Current: 40A Nominal grid voltage(AC voltage range): 220/230/240 Nominal grid Frequency/range: 50/60Hz OUTPUT AC (GRID SIDE) Nominal AC power: 5000W Max. Output Apparent Power: 5500 (4600 for VDE4105, 4999 for AS4777, 5000 for C10/11) Max. AC Current: 23.9A  Nominal grid voltage(AC voltage range): 220/230/240V Nominal Grid Frequency: 50/60Hz Displacement power factor: 0.8 leading to 0.8 lagging  THDi: <2% @rated power EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY) Nominal output power: 5000W Peak apparent power: 6000VA, 60 min Max. continuous current: 21.7A Nominal voltage; frequency: 230V; 50/60Hz Switch time: <10ms Parallel operation: YES EFFICIENCY Max. Battery charge efficiency (GRID to BAT): 97.0% Max. Battery discharge efficiency (BAT to AC): 97.0% Operating Temperature: -25 ~ +60 (derating at 45) Protection Degree: IP65 Size:  482*417*181mm Net Weight: 13kg In the Box: 1 X SolaX X1-FIT 5.0W Single Phase AC Coupled HV Inverter, 1 X SolaX X1-FIT 5.0W Single Phase AC Coupled HV Inverter User's Manual. For more information, call 020 8064 0335 or email [email protected].
