OPTIMISE YOUR ENERGY USAGE WITH 3-12KWH AC COUPLED ENERGY STORAGE SYSTEM
Trade Only Product – MCS or NICEIC Membership Required
The AC Coupled Energy Storage System (ESS) provides an efficient solution for harnessing energy from cost-effective sources like solar panels and off-peak Octopus mains power. This system allows users to utilise stored energy effectively, avoiding low feed-in tariffs and expensive peak-rate power.
Zero VAT applies to new residential energy storage batteries when purchased from your installer. Benefit from our cost-effective battery installation service (starting at just £199) and pay zero VAT on your battery installation. Click here to request a quote or contact us via live chat or call 020 8064 0335 for expert advice.

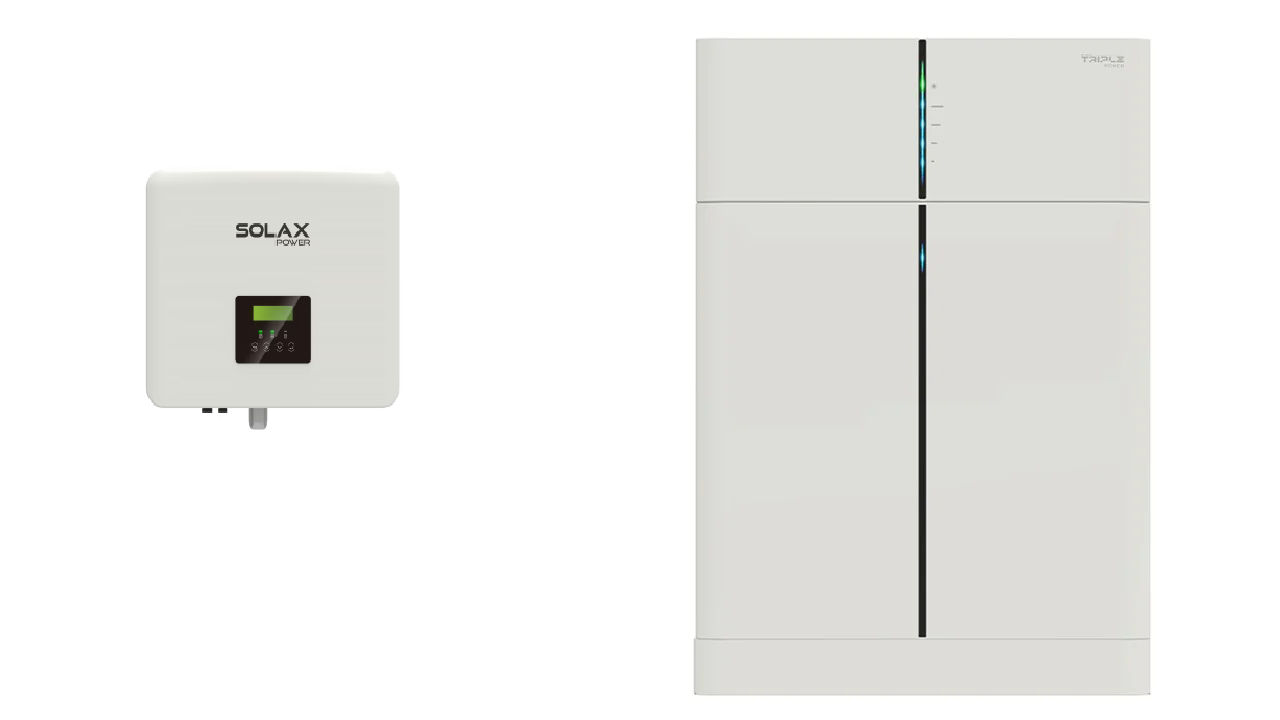

The SolaX X1-FIT G4 3.7kW AC Coupled Inverter and 3-12kWh SolaX T30 Battery Energy Storage System (3-12kWh/3.7kW AC Coupled ESS) comprises:
1x … 4x (depending on the chosen option) SolaX T30 3.0kWh Triple Power Battery Module
1x SolaX X1-FIT G4 3.7kW AC Coupled Inverter
1x SolaX MC0600 Triple Power Battery Management System
This 3-12kWh/3.7kW AC Coupled ESS efficiently manages energy usage, ensuring a stable electricity supply and reducing costs by charging the battery with solar or low-priced off-peak Octopus electricity. Coupled with a private power source like on-grid solar panels, it provides a continuous 24/7 power supply for your home.
The 3.7W X1-FIT G4 AC Coupled Inverter is designed for compatibility with an external backup generator, seamlessly supplying electricity during prolonged grid outages when the battery storage is depleted.
▼ 3-12KWH/3.7KW AC COUPLED ESS FEATURES
SolaX T30 3.0kWh Triple Power Battery Module: A high-performance, scalable battery storage module with a modular design for maximum flexibility. Easy installation, plug-and-play solution, 95% charge/discharge efficiency, 90% depth of discharge, and a cycle life of over 6000 cycles.
SolaX X1-FIT G4 3.7kW AC Coupled Battery Inverter: A high-quality inverter converting solar energy to AC energy, compatible with high voltage batteries. Suitable for indoor or outdoor installation, featuring natural cooling, quiet operation, and low maintenance.
SolaX MC0600 Triple Power Battery Management System: A communication module ensuring optimal battery performance, extending battery life, reducing failure risks, and allowing constant charge level monitoring.
SolaX X1-FIT G4 3.7kW AC Battery Inverter Operating Modes:
Self-use (default): Battery will discharge for local loads first, and the grid will supply power when the battery capacity is insufficient.
Feed-in priority: The priority of inverter output power is: feeding to the grid, then supplying the load, then charging the battery. This mode is ideal for areas with high feed-in tariffs.
Force time use: Charging and discharging times can be set flexibly in this mode.
Backup mode: The battery will stop discharging to maintain higher capacity when the grid is on. Only when the grid is off will the battery discharge to keep emergency loads working. This mode is suitable for areas prone to blackouts.
The system seamlessly integrates with smart Octopus tariffs, allowing automatic optimisation for Plunge Prices and super cheap prices. With solar panels and the battery storage system, your electricity price can be significantly reduced.
Enjoy a 2-3 working days’ delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
For more information, call 020 8064 0335 or email [email protected].
▼ 3-12KWH/3.7KW AC COUPLED ESS SPECIFICATIONS SPECIFICATIONS
SOLAX TRIPLE POWER T30 BATTERY STACK
Battery Type: Lithium Iron Phosphate (LiFePO4)
Total Energy: 3.0kWh
Useable Energy: 2.7kWh
Nominal Voltage: 102.4V
Operating Voltage Range: 90-116V
Rated Capacity: 30A
Rated Power: 2.5kW
Max. Power: 3.0kW
Maximum Charge Voltage: 2pcs 116.8V 3pcs 175.2V 4pcs 233.6V 5pcs 292.0V 6pcs 350.4V
Recommended Charge/Discharge Current: 25A
Max. Charge/Discharge Current: 30A
Available Charge/Discharge Temperature Range: -30 ~ +50°C
Storage Temperature: -20 ~ +50°C (3 months)
Charge/Discharge Efficiency: 95%
Cycled life (90% DOD): 6000 cycles
Depth of Discharge: 90%
Expected Life tTme / Warranty: 10 years
Protection Level: IP65
Net Weight: BMS MC0600 – 7.5kg; Battery Module HV10230: 34.5kg
Size: BMS MC0600 – 483×174×153mm; Battery Module HV10230: 483×472×153mm
SOLAX 1 PHASE X1-FIT G4 3.7kW AC COUPLED BATTERY INVERTER
BATTERY DATA
Battery Type: Lithium Iron Phosphate (LiFePO4)
Rated Battery Voltage: 80-480V
Max. Charge/Discharge Current: 30A
AC INPUT (GRID SIDE)
Max. Apparent AC Input: 73600VA
Max. AC Current: 32A
Nominal Grid Voltage (AC Voltage Range): 220/230/240V
Nominal Grid Frequency/Range: 50/60Hz
AC OUTPUT (GRID SIDE)
Nominal AC Power: 3680W
Max. AC Apparent Power: 3680VA
Max. AC Output Current: 16A
Rated Grid Voltage: 220/230/240V
Rated Grid Frequency: 50/60Hz
Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi: <2% @rated power
EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY)
Nominal Output Power: 3680W
Peak Apparent Power: 4416VA, 60min
Max.Continuous Current: 16A
Nominal Voltage; Frequency: 230V, 50/60Hz
Switch Time: 20msec
Parallel Operation: Yes
EFFICIENCY
Battery Charge/Discharge Efficiency: 97.0%/97.0%
Operating Temperature: -30 ~ +60°C (derating at 45°C)
Protection Degree: IP65
Size: 482×417×181mm
Net Weight: 23kg
▼ 3-12KWH/3.7KW AC COUPLED ESS IN THE BOX
1x ... 4x (depending on the selected option) SolaX T30 3.0kWh Triple Power Battery Module
1x SolaX X1-FIT G4 3.7kW AC Coupled Battery Inverter
1x SolaX MC0600 Triple Power Battery Management System
1x SolaX DDSU666 Chint Single Phase Meter
