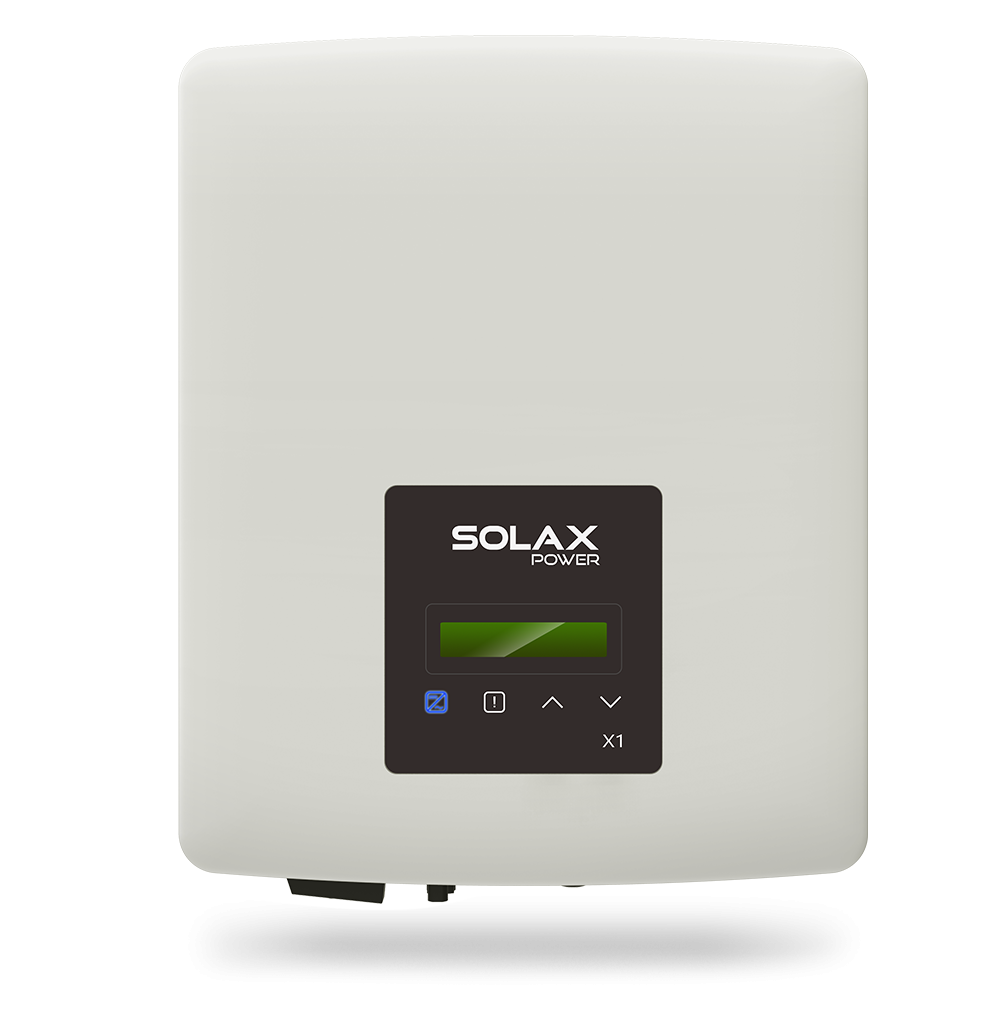

POWERING YOUR ROOFTOP REVOLUTION WITH SOLAX X1-MINI 3.3KW GRID-TIE INVERTER
Introducing the SolaX X1-MINI G3 range of inverters, thoughtfully crafted and optimized for small PV arrays in your local region. With an impressive start-up voltage of 50V and an exceptional maximum efficiency of 98%, the X1-MINI G3 guarantees unrivaled performance, ensuring you harness the utmost energy potential from your PV system. Experience the pinnacle of efficiency and maximize your energy harvest with the SolaX X1-MINI G3, tailored specifically for your local solar needs.
User-Friendly:
Small and compact size
Remote upgrade and maintenance
Efficiency:
150% oversizing and 110% overloading
Max. DC input 14A per string
Reliabiliaty:
Low start-up voltage and wide MPPT range
SPD on both AC and DC side integrated
Detailed specifications:
Model: X1-3.3
INPUT PV
Max. Input Power: 4950W
Max. Input Voltage: 550V
Start-up Input Voltage: 70V
Nominal Input Voltage: 360V
No. of Independent MPP Trackers: 1
MPP tracker voltage range: 55-530V
Max. Input Current: 14A
Max. Short-circuit Current: 18A
AC OUTPUT (GRID)
Rated Output Power: 3300W
Max. Output Apparent Power: 3330VA
Rated Grid Output Current: 14.3A
Nominal AC voltage / AC voltage range: 220/230/240; 180–280VAC
Nominal AC frequency / AC frequency range: 50/60;±5Hz
Power Factor: Adjustable from 0.8 leading to 0.8 lagging
THD: <3%
EFFICIENCY
Max. Efficiency: 98.0%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP66
Size: 267 x 328 x 126mm
Net Weight: 8.3kg
In the Box:
1 X SolaX X1-MINI 3.3kW Single Phase Grid-tie PV Inverter,
1 X SolaX X1-MINI 3.3kW Single Phase Grid-tie PV Inverter User's Manual.
