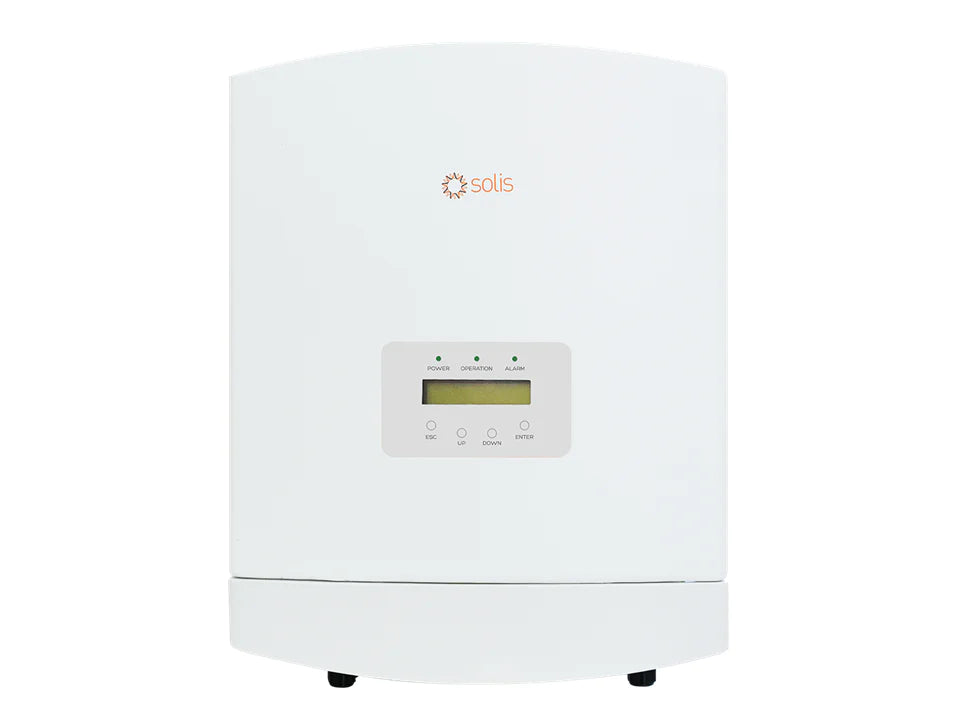

The Solis 3.0kW 5G RAI AC Coupled Battery Charger Inverter is designed for effortless installation, saving you valuable time during setup. Enjoy the added convenience of remote monitoring via your smartphone or web portal.

Key Features

This high-quality inverter converts solar energy to AC energy, storing it in a battery. It optimises energy consumption, stores energy for future use, or feeds excess energy into the grid. The system boasts several features:

Utilises Low Voltage Batteries: Benefit from the advanced technology of low voltage battery banks – Fox ESS LV52 5.12-20.48kWh, LG RESU10 9.8kWh, PYLON FORCE-L2 7.1-14.2kWh, PYLON US2000C 2.4-38.4kWh, PYLON US3000C 3.55-56.8kWh, and PYLON US5000 4.8-76.8kWh.

Natural cooling without external fan

Various work mode for different application scenarios

IP65 degree, applicable for different installation environments

Optional stand-alone mode ensures constant power supply for critical load
Advanced BMS to enhance the battery usage and guarantee the longer battery lifespan

Compatible with any existing grid-tied PV system, option to upgrade the current grid-tied system to a new battery storage system

Convenient real-time monitoring realized via wireless communication and intelligent debugging APP which support one-click inverter configuration

CT Clamps and meter are included in the box.

Fast Delivery Across the UK

Experience the benefits of the Solis 3.0kW 5G RAI AC Coupled Battery Charger Inverter with prompt 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).

Detailed specifications:

BATTERY CONNECTION
Battery Type: Lithium Iron Phosphate (LiFePO4)
Battery Voltage Range: 40-60V
Max. Charge/Discharge Current: 60A
Max. Charge/Discharge Power: 3kW
AC INPUT AND OUTPUT (GRID)
Max. Input Current: 32A
Input Voltage Range: 184-264VAC
Frequency Range: 45-55 Hz / 55-65 Hz
Rated Output Power: 3kW
Max. Output Apparent Power: 3.3kW
Rated Output Current: 13.6A / 13A
Max. Output Current: 20A
Rated Output Voltage: 1/N/PE, 220 V / 230 V
Power Factor: >0.99 (0.8 leading – 0.8 lagging)
THDi: <3% @rated power AC OUTPUT (BACK-UP) Rated Output Power: 3kW (Requires battery voltage higher than 55 V) Max. Output Apparent Power: 4500VA Back-up Switch Time: <20ms Rated Output Current: 13.6A / 13A Rated Output Voltage: 1/N/PE, 220 V / 230 V Rated Output Frequency: 50/60Hz THDi (linear load): <3% @rated power EFFICIENCY Max. Battery Charge Efficiency: 94.0% Max. Battery Discharge Efficiency: 94.5% Operating Temperature: -25 ~ +60°C Protection Degree: IP65 Size: 403*525*170 mm Net Weight: 15kg In the Box: 1 X Solis 3.0kW 5G RAI AC Coupled Battery Charger Inverter, 1 X Solis 3.0kW 5G RAI AC Coupled Battery Charger Inverter User's Manual. Frequently Asked Questions: Any questions? Call us on 020 8064 0335 or email [email protected].
