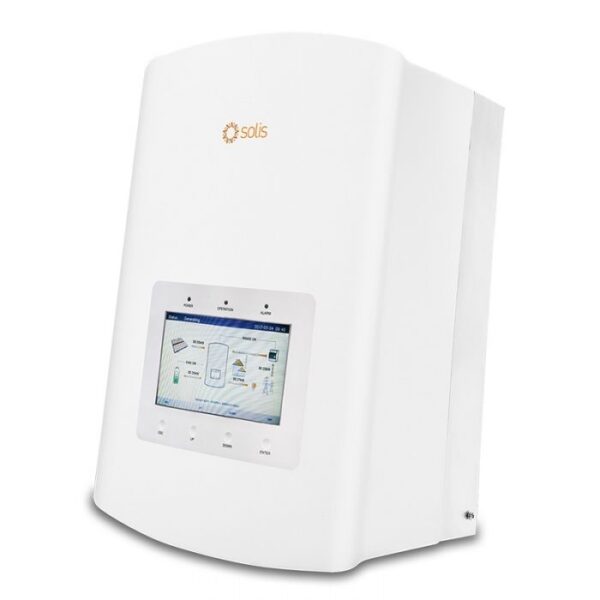

RELIABLE POWER MANAGEMENT WITH SOLIS 3.6KW SINGLE PHASE HYBRID ON-GRID/OFF-GRID 5G INVERTER
Ensure uninterrupted power for essential loads during load shedding while optimizing energy consumption during peak demands with the Solis 3.6kW Single Phase Hybrid 5G Inverter. The ideal solution you’ve always wanted.
Fanless Design for Durability: Enjoy a fanless design with IP65 rating for enhanced durability.
High Charge and Discharge Efficiency: Experience superior efficiency in both charging and discharging processes.
Multiple Work Modes for Flexibility: Choose from various work modes for maximum self-consumption and increased benefits.
Intelligent Battery Management System (BMS): Benefit from intelligent BMS function for optimized battery performance.
24-Hour Real-time Energy Management: Stay in control with 24-hour real-time intelligent energy management capabilities.
Remote Control and Upgrade: Conveniently control and upgrade the inverter remotely.
Note: This product is not recommended for use with lead acid batteries, and European warranty coverage will not apply to such usage. The Solis inverter cannot accurately monitor the state of charge for lead acid batteries.
Key Features:
The Solis S5-EH1P3.6K-L 3.6kW Single Phase Hybrid On-grid/Off-grid 5G Inverter is specifically designed for residential PV energy storage systems. With 3kW backup power to support critical loads, it is suitable for both indoor and outdoor applications. The inverter is cooled by natural convection, ensuring quiet operation, easy installation, reliability, and durability. The backup switching time is less than 20 ms, and it integrates multiple protections and fault monitoring for battery and equipment safety.
Four Work Modes:
Self-use Mode: Prioritizes the use of energy produced by the PV system for self-consumption, with excess energy used to charge batteries and export to the grid.
Feed-in Priority: Directs power generated by the PV system to supply local loads first, then exports to the grid, charging the battery with redundant power.
Backup Mode: Maintains the battery at a specific State of Charge (SOC) for use during power outages. PV power priority: Battery > Load > Grid.
Off-Grid Mode: Ideal for off-grid and when AC-Grid Port is disconnected. PV power priority: Load > Battery. Load support priority: PV > Battery.
The Solis S5-EH1P3.6K-L 3.6kW Single Phase Hybrid On-grid/Off-grid 5G Inverter is compatible with Fox LV52 5.12-20.48kWh, LG RESU10 9.8kWh, PYLONTECH Force-L2 Low Voltage 7.1-14.2kWh, US2000С 2.4-38.4kWh, US3000С 3.55-56.8kWh, US5000 4.8-76.8kWh Battery Systems.
Fast Delivery Across the UK: Experience the benefits of the Solis 3.6kW Single Phase Hybrid 5G Inverter with quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
Model: S5-EH1P3.6K-L
BATTERY
Battery Type: Lithium-Ion / Lead-acid
Battery Voltage: 42-58V
Battery Capacity: 50-200Ah
Max. Charge/Discharge Current: 62.5A
Max. Charge/Discharge Power: 3kW
Communication Interface: CAN
INPUT PV
Max. Input Power: 5700W
Max. Input Voltage: 600V
Start-up Input Voltage: 120V
Rated Input Voltage: 330V
MPPT Operating Voltage Range: 90-520V
Max. Input Current: 15A/15A
Max. Short-circuit Current: 22.5A/22.5A
No. of Independent MPP Trackers: 2
INPUT AC (GRID SIDE)
Input Voltage: 187-265V
Max. Input Current: 25A / 23.5A
Frequency Range: 45-55Hz
OUTPUT AC (GRID SIDE)
Rated Output Power: 3600W
Max. Output Apparent Power: 4000VA
Rated Output Current: 16.4A / 15.7A
Max. Output Current: 18.5A
Rated Grid Voltage: 220-230VAC
Rated Grid Frequency: 50/60Hz
Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging )
THDi: <2% @rated power
OUTPUT AC (BACK-UP)
Rated Output Power: 3000W
Max. Output Apparent Power: 4500VA, 10sec
Rated Output Current: 14.0A / 13.5A
Rated Output Voltage: 220-230VAC
Rated Output Frequency: 50/60Hz
THDi (linear load): <2%
Switch Time: 20ms
EFFICIENCY
Max. Efficiency: >97.1%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP65
Size: 333 x 249 x 505mm
Net Weight: 18.3kg
In the Box:
1 X Solis S5-EH1P3.6K-L 3.6kW Hybrid On-grid/Off-grid 5G Inverter,
1 X Solis S5-EH1P3.6K-L 3.6kW Hybrid On-grid/Off-grid 5G Inverter User’s Manual.
