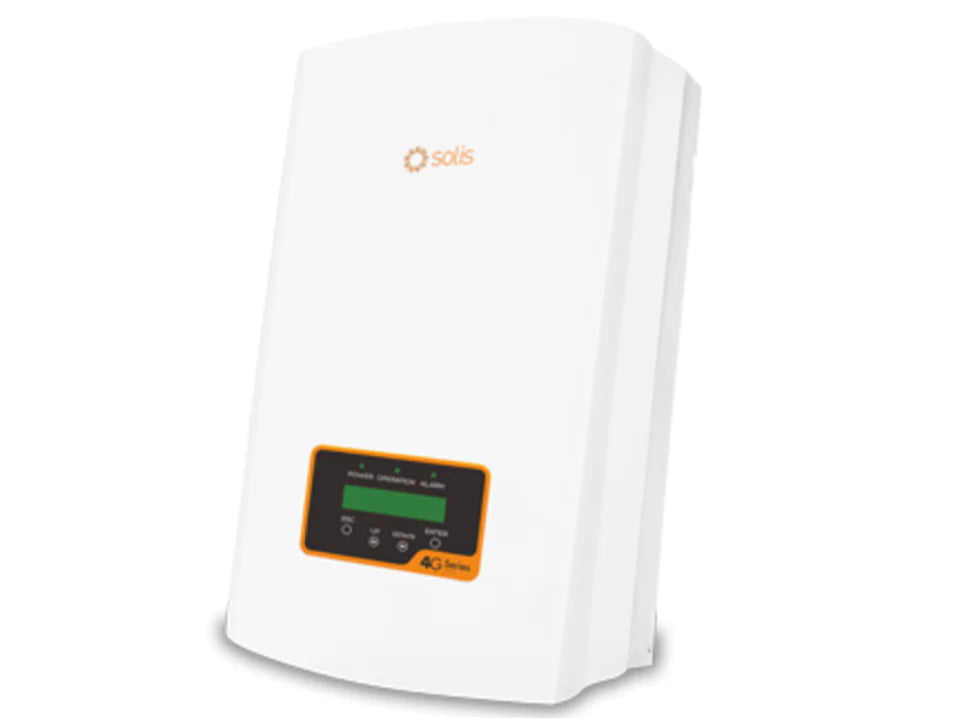

HARNESS SOLAR POWER EXCELLENCE WITH SOLIS 8KW G5 DUAL MPPT INVERTER
Over 98.1% Max. Efficiency
Friendly and Adaptable Connection to the Grid
Support 1.1 Times Overload, Increasing Power Generation
IP65 Protection Grade, Suitable for Outdoor Installation
RS485, WiFi/LAN/GPRS (Optional) Interface
Lightweight at 13.3 kg, Single-Person Maintainable Installation
WiFi Monitoring Available – Android and Apple App Store
This inverter has two MPP trackers, each with a different maximum allowed DC current. MPP Tracker A is limited to 12.5A and should only have a single string connected to it, while MPP Tracker B can accommodate two strings connected to it, with a maximum current of up to 25A.
Features:
Elevate your solar power experience with the Solis 8kW G5, the latest generation of grid-tied residential inverters. The Solis 8kW G5 Dual MPPT Inverter takes the lead in affordable small residential rooftop installations, providing the ideal solution for your solar energy needs.
Solis 8kW G5 Dual MPPT Inverter is suitable for green energy in large residential and commercial rooftops, this grid-tie inverter adopts full digital control technology, an advanced topological structure, and accurate dual MPPT algorithms, achieving efficiency higher than the industry-leading conversion, reaching a maximum of 98.1%.
Additional Features:
Integrated DC Switch Version: No need for an external DC Isolator. If you already have one, it’s not an issue; you can simply disable one of them!
For monitoring, enhance your system with a Solis Wi-Fi data logging stick.
Enjoy peace of mind with a 5-year warranty as standard, extendable to 10 or 20 years.
The Solis 8kW G5 Grid-tie Inverter operates with high efficiency, maximizing the conversion of solar energy into usable electricity. Its advanced dual MPPT technologies ensure optimal performance even in challenging weather conditions such as dusk or partial shade.
Delivery: 2-3 WORKING DAYS within the UK (delivery times may vary to the Highlands, islands, and Northern Ireland). Unleash the full potential of solar power with Solis 8kW G5 Inverter!
Detailed specifications:
Model: SOLIS-8.0-5G-DT-DC
INPUT PV
Max. Input Power: 10,400W
Max. Input Voltage: 600V
Start-up Input Voltage: 120V
Rated Input Voltage: 330V
MPPT Operating Voltage Range: 90-520V
Max. Input Current (A/B): 12.5A/25A
Max. Short-circuit Current (A/B): 19.5A/39A
No. of Independent MPP Trackers: 2 (A: 1, B: 2)
AC OUTPUT (GRID)
Rated Output Power: 8000W
Max. Output Power: 8000W
Rated Grid Output Current: 34.8A
Max. Grid Output Current: 34.8A
Rated Grid Voltage: 211-264VAC
Rated Grid Frequency: 50/60Hz
Power Factor: Adjustable from 0.8 leading to 0.8 lagging )
THD: <3%
EFFICIENCY
Max. Efficiency: 98.1%
Operating Temperature: -25 ~ +60°C
Protection Degree: IP65
Size: 310 x 180 x 543mm
Net Weight: 13.3kg
In the Box:
1 XÂ 8kW G5Â SOLIS-8.0-5G-DT-DC Grid-tie Inverter,
1 X 8kW G5Â SOLIS-8.0-5G-DT-DC User's Manual.
Documents available for download:
Solis 8kW Grid-tie Inverter 1P8K-5G Data Sheet
Solis 8kW Grid-tie Inverter1P8K-5G Installation Manual
